- Stock: In Stock
- Model: 919443
Reprap 3D Printer Accessories Azteeg Control Board Motherboard
Introduce:
Azteeg control board is an open source controller, designed to be used in RepRap 3D printers and similar Cartesian based machines including CNCs, it has all the features needed to run all current and future single extruder designs.
The Azteeg is based on Sanguino/Sanguinololu and is compatible with most Arduino based firmware(Sprinter,Marlin,Repetier, plus others.). It is pin to pin compatible with the Sanguinololu with the addition of a FAN PIN. The Azteeg features mostly SMT parts to ease production and reduce cost.
Description:

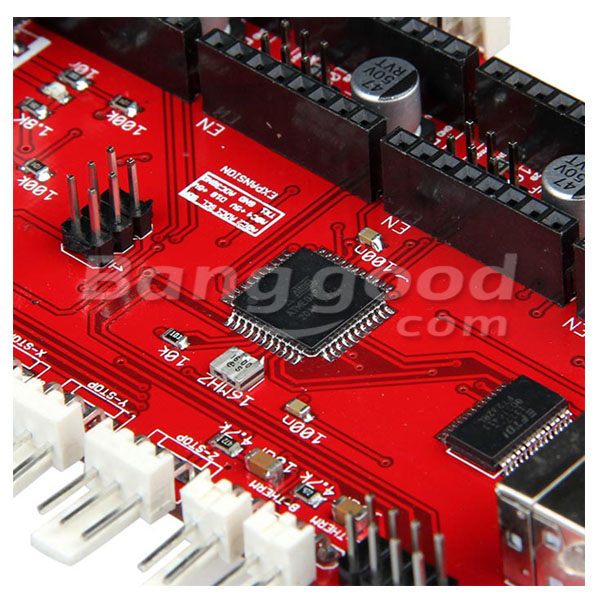

Atmel ATMEGA1284P with FT232RL FTDI USB chip. (ATMEGA 644P on v1.0)
RoHS Compliant
Compatible with Sprinter, Marlin, Repetier
Mosfet control for 1 extruder and 1 hotbed
Extra PWM control for small fan or LED
3 end stops and 2 thermistor inputs
12-30V input high efficiency switching, Power supply @ 500mA max
Dedicated SD card female header (SDRAMPS compatible)
Low RDSON Mosfets for less heat buildup
Input power selector for micro controller (USB or internal regulator)
Secondary power input for stepper motors
Optional pads for TVS spike suppression diodes for the Mosfets
Mosfet heatsinks included
I2C, TX1 serial, +5, GND, SPI and ADC pins on the expansion ports
Fast acting blade fuse
Both right angle and vertical connector sets included
Lots of LED, RX / TX serial, PWR, hot end and hot bed
Package included:
1 x Azteeg control board
