  • Stock: In Stock
  • Model: 1266590
$135.19
Ex Tax: $135.19







Eachine EV100 720*540 5.8G 72CH FPV Goggles With Mini DVR White 7.4V 1000mAh Battery

The receiver on EV100 Goggles doesn't receive audio. But the goggles support audio input, that you can hear the audio if inputs the video to goggles.

Eachine EV100 Fatshark Module Mod

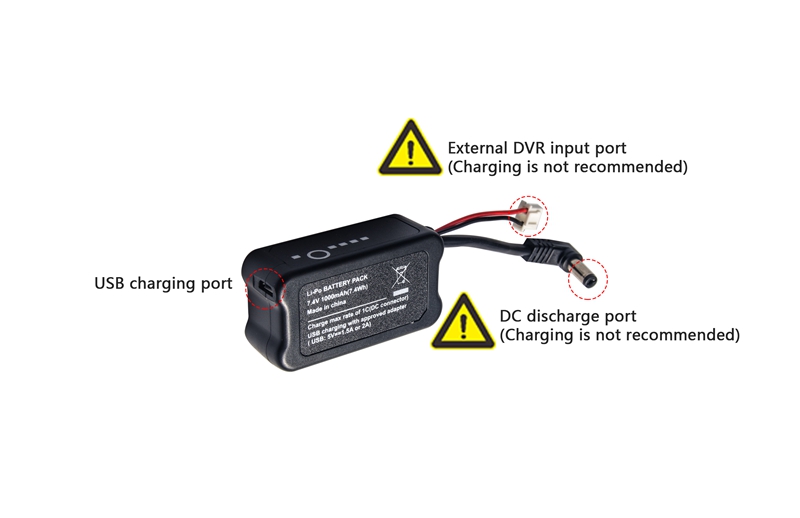

Warning :Don't use balance plug to charge the battery
Eachine-EV100-720540-58G-72CH-FPV-Goggles-White-With-Mini-DVR-74V-1000mAh-Battery-1266590



Eachine-EV100-720540-58G-72CH-FPV-Goggles-White-With-Mini-DVR-74V-1000mAh-Battery-1266590Eachine-EV100-720540-58G-72CH-FPV-Goggles-White-With-Mini-DVR-74V-1000mAh-Battery-1266590Eachine-EV100-720540-58G-72CH-FPV-Goggles-White-With-Mini-DVR-74V-1000mAh-Battery-1266590Eachine-EV100-720540-58G-72CH-FPV-Goggles-White-With-Mini-DVR-74V-1000mAh-Battery-1266590Eachine-EV100-720540-58G-72CH-FPV-Goggles-White-With-Mini-DVR-74V-1000mAh-Battery-1266590Eachine-EV100-720540-58G-72CH-FPV-Goggles-White-With-Mini-DVR-74V-1000mAh-Battery-1266590Eachine-EV100-720540-58G-72CH-FPV-Goggles-White-With-Mini-DVR-74V-1000mAh-Battery-1266590

Eachine-EV100-720540-58G-72CH-FPV-Goggles-White-With-Mini-DVR-74V-1000mAh-Battery-1266590



Description
Brand Name : Eachine
Item Name : EV100
Size : 165mm*76mm*30mm
Weight : 221g(with battery 57g and antenna 13g)
Package Weight : 400g

Display
Resolution  : 720*540
FOV : 28° diagonal
IPD : 58-68mm
Ratio : 4:3
Focal length adjusting:  under 400 degree of myopia and hyporopia 150 degree

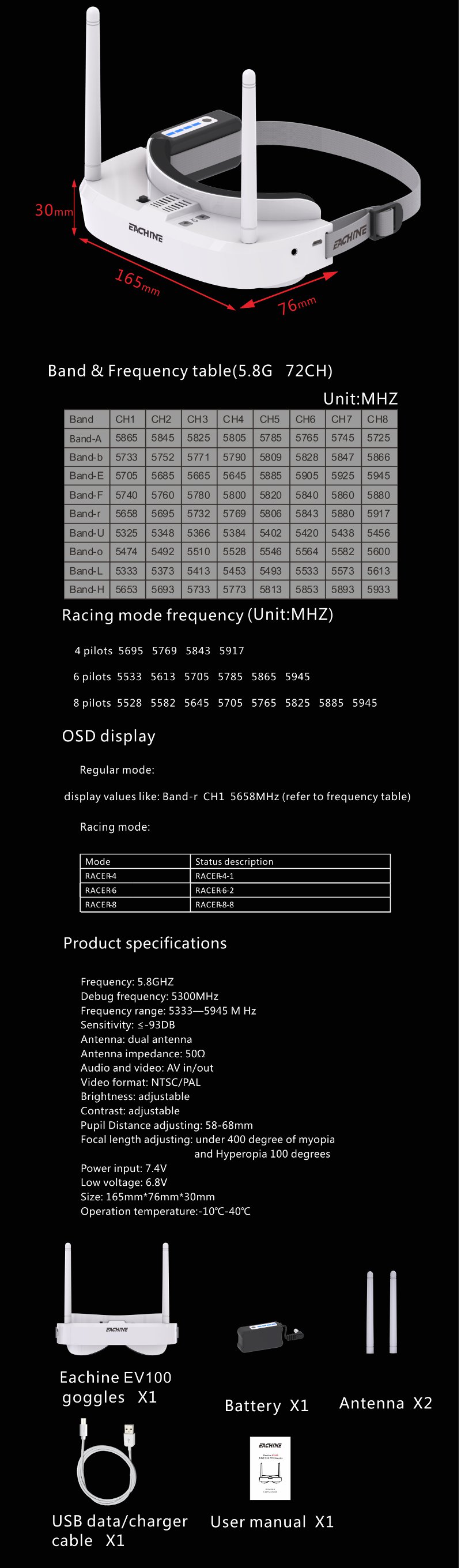

Specification
Frequency : 5.8G 5333Mhz-5945Mhz
Sensitivity : <=-93dB
Antenna Impedance : 50Ω
Antenna Gain : 3dBi
Antenna Connector : RP-SMA
Video Formate : NTSC/PAL
Support AV IN/OUT
Support Focal Length/Brightness/Contrast Adjustment
Suport Firmware Upgrading
Power Input : 7.4V

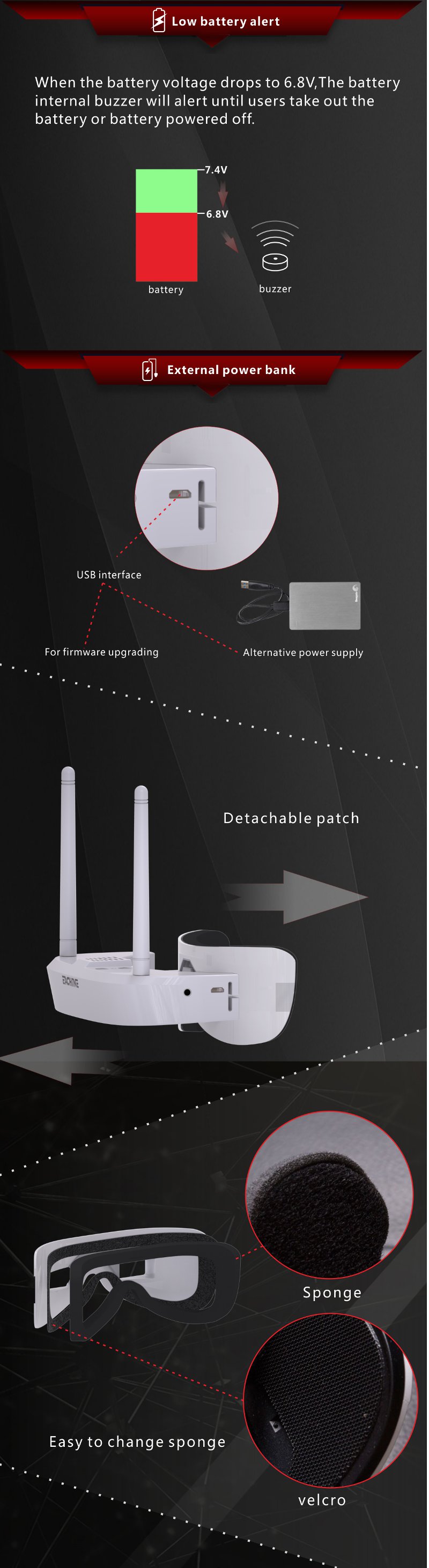

Low Voltage : 6.8V
Battery : 2S 7.4V 1000mAh
Charging : USB Cable(not included)
Working Temp. : -10℃-+40℃

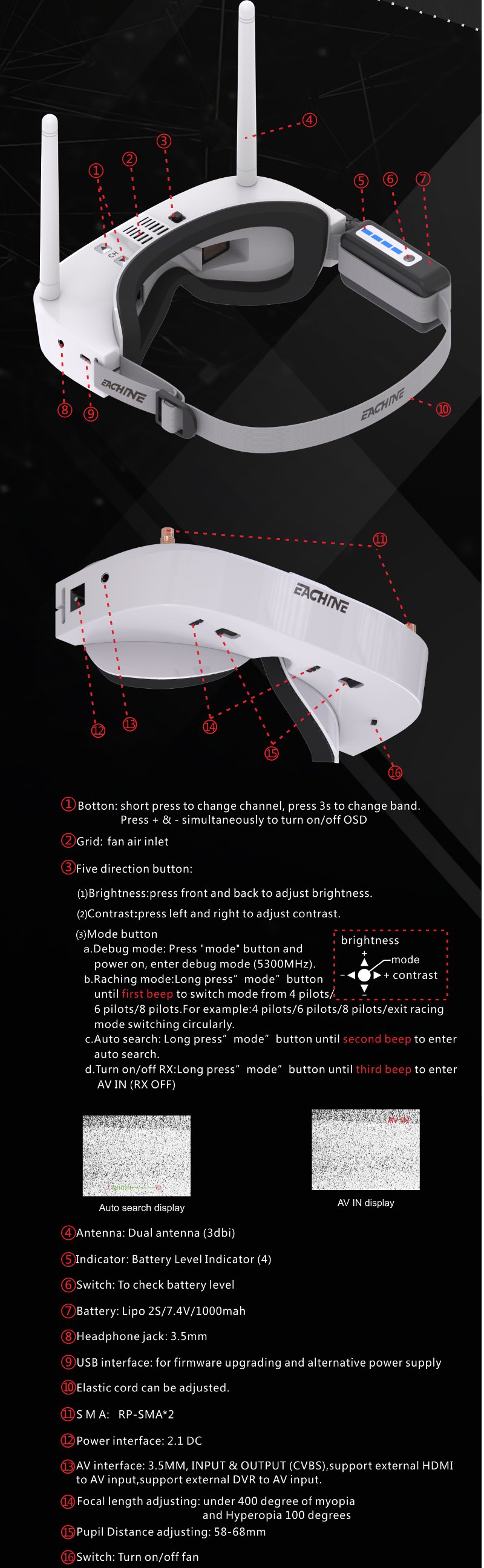

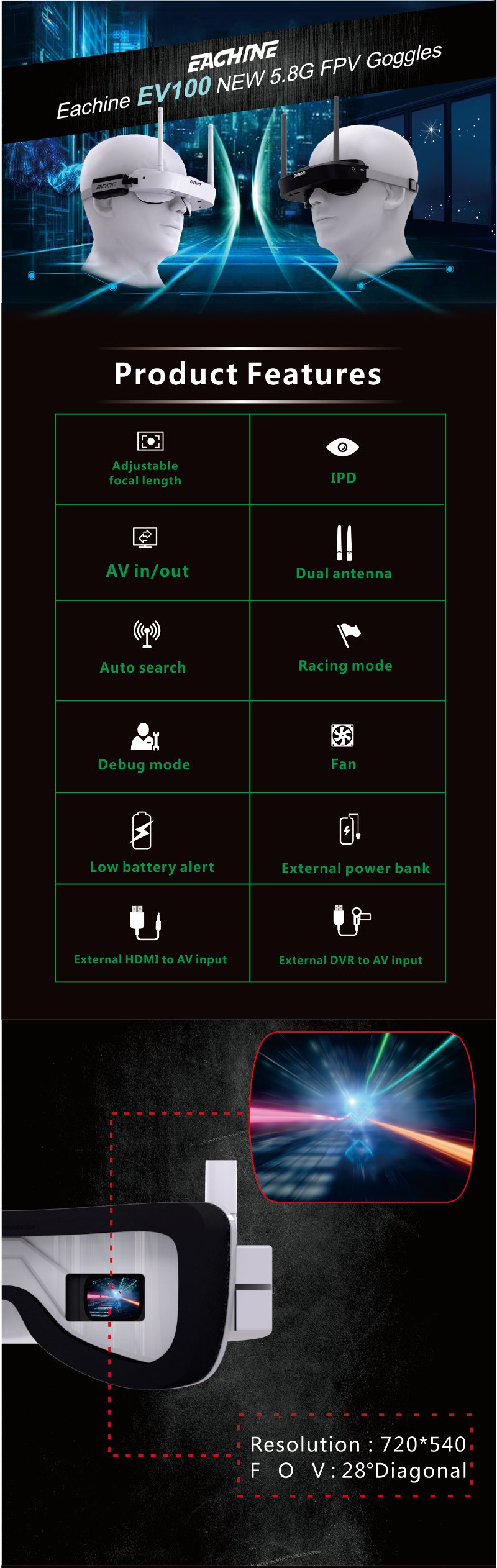

Features

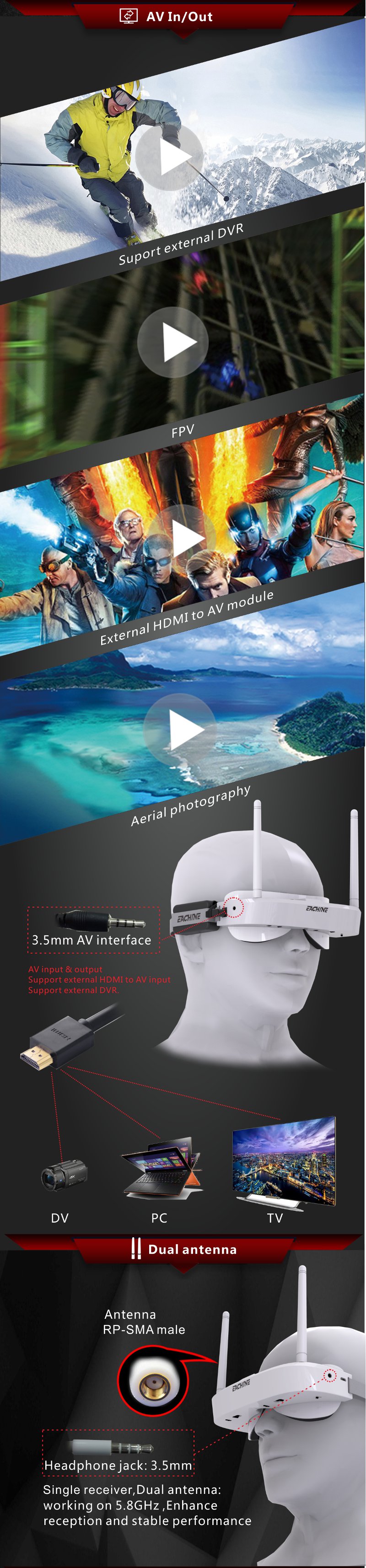

Support AV Input and Output
Support External HDMI to AV Module

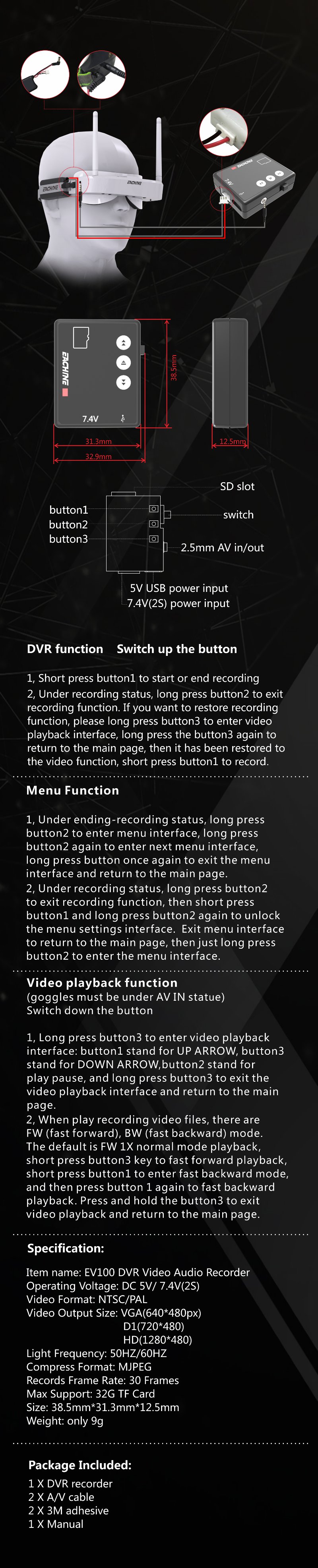

Support External DVR module
Single receiver with Dual Antennas, enhance the reception and stable performance.
With Fan, can defog the glasses for good visual experience.
Adjustable focal length,allows pilots under 400 degree myopia view directly via naked eye
Adjustable IPD 58~68mm

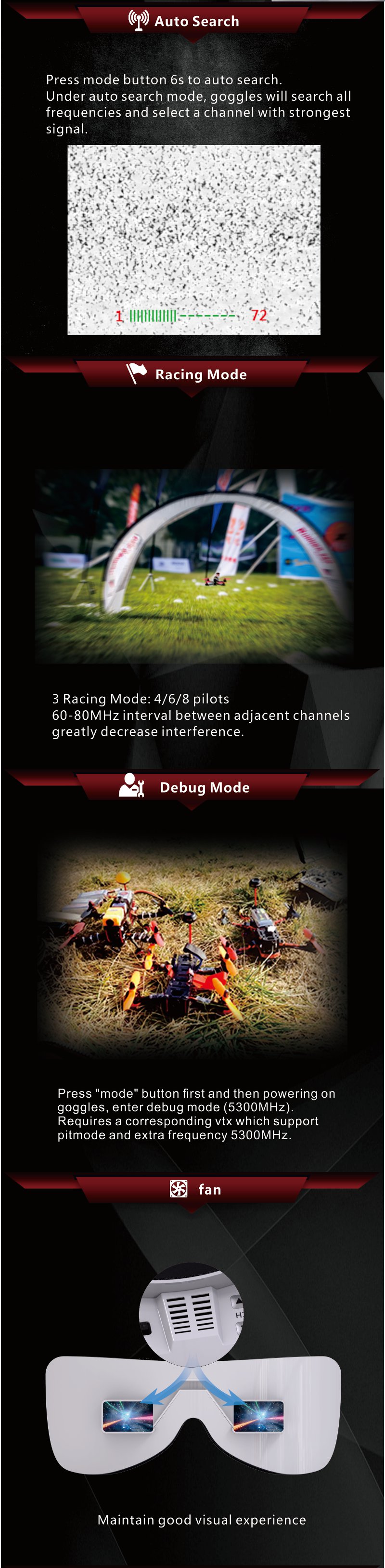

Auto Search function, can auto search all frequencies and select the channel of stongest signal.
Has 3 Racing Modes : 4/6/8 pilots. 60-80MHz interval between adjacent channels greatly decrease interference.
Has Debug Mode, requires a corresponding VTX which support pitmode and extra frequency 5300MHz

Package Included
1 x Eachine EV100 5.8G 72CH FPV Goggles
1 x 7.4V 1000mAh Battery
2 x RP-SMA 3dBi Antenna
1 x User Manual
1 x DVR Module
