- Stock: In Stock
- Model: 1230635

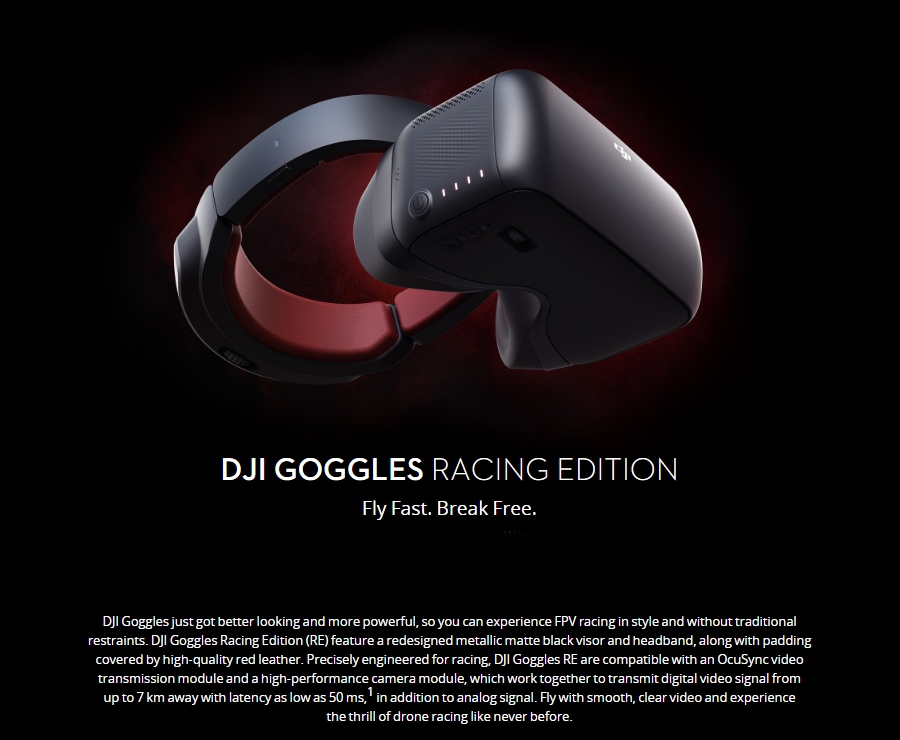

DJI GOGGLES RE
| Weight (Typical) |
DJI Goggles RE Body: 502 g; Headband: 500 g |
|---|---|
| Dimensions |
DJI Goggles RE Body: 195 × 155 × 110 mm; Headband (folded):255 × 205 × 92 mm |
| Screen Size | 5-inch × 2 |
| Screen Resolution | 3840 × 1080 (single screen: 1920 × 1080) |
| Transmitter Power (EIRP) |
2.4 GHz: 25.5 dBm (FCC); 18.5 dBm (CE); 19 dBm (SRRC) 5.8 GHz: 25.5 dBm (FCC); 12.5 dBm (CE); 18.5 dBm (SRRC) |
| Live View Modes | 1080p30, 720p60, 720p30 |
| Video Format | MP4 (H.264) |
| Supported Video Play Format |
MP4, MOV, MKV (Video format: H264; Audio format: AAC-LC, AAC-HE, AC-3, DTS, MP3) |
| Battery Capacity: | 9440 mAh |
| Operating Temperature Range | 32° to 104° F (0° to 40° C) |
| Charger Input | 100-240 VAC, 50 / 60 Hz, 0.5 A |
| Output | 5 V 3 A / 9V 2A / 12 V 1.5 A |

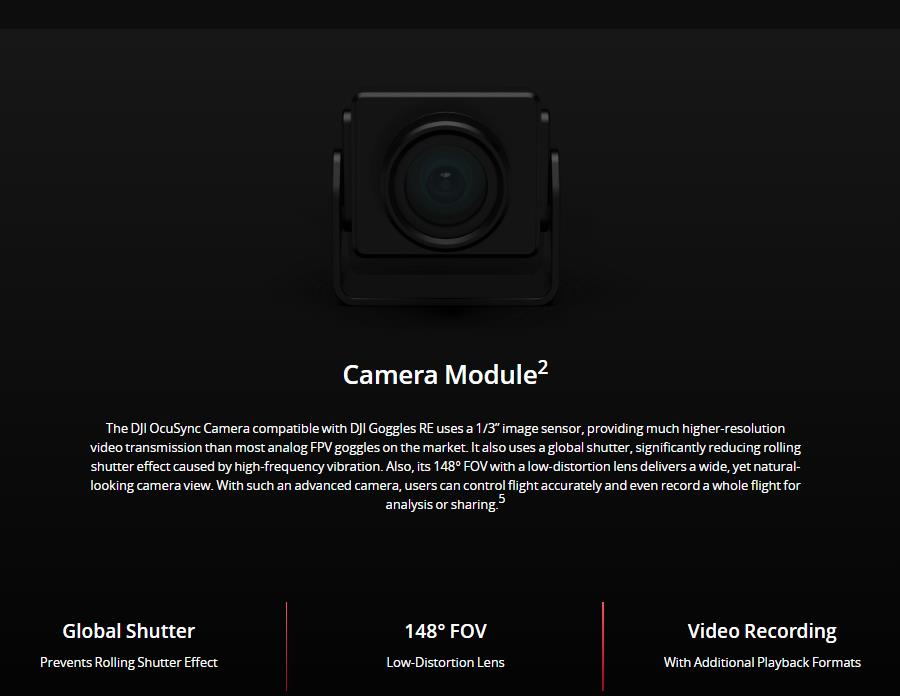

DJI OCUSYNC CAMERA
| Sensor |
1/3'' CMOS; Effective pixels: 1.2M |
|---|---|
| Lens | 2.65 mm, f/2.0 |
| Lens Group | 6G + IR |
| Shutter | Global shutter |
| ISO | 100 - 3200 |
| FOV | 148° (D); 111° (H); 79.5° (V) |

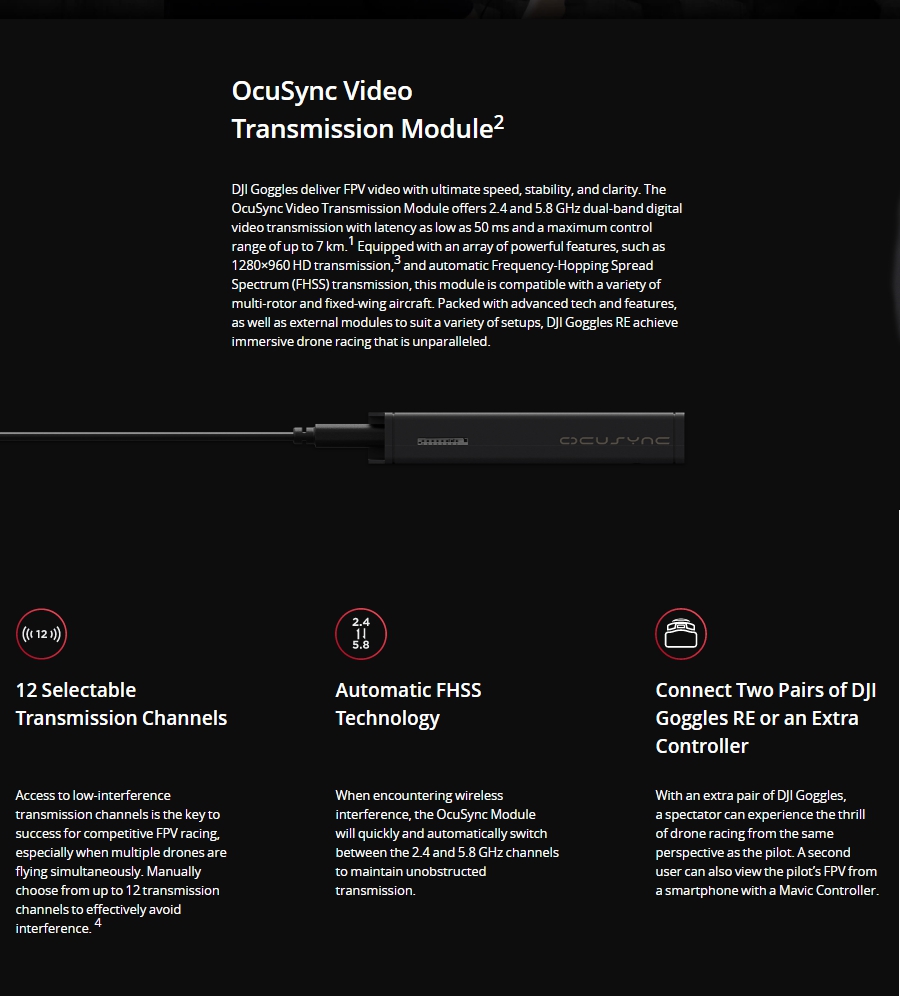

DJI OCUSYNC AIR SYSTEM
| Weight |
Air Unit: 43.7 g; Camera (cable included): 18.2 g; Pagoda Antenna: 9.4 g; Cylindrical Antenna: 9.4 g; Dipole Antenna: 4.2 g |
|---|---|
| Dimensions |
Air Unit: 72 × 33 × 14 mm; Camera: 29.4 × 28.2 × 22.6 mm |
| Communication Frequency | 2.4 GHz / 5.8 GHz |
| Transmitter Power (EIRP) |
2.4 GHz: 22.5 dBm (FCC); 18.5 dBm (CE); 19 dBm (SRRC) 5.8 GHz: 25.5 dBm (FCC); 12.5 dBm (CE); 25.5 dBm (SRRC) |
| Live View Modes and Min. Latency | 960p50: 70 ms; 720p60: 60 ms; 480p50: 50 ms |
| Max. Transmission Distance |
2.4 GHz:7 km (FCC); 4 km (CE); 4 km (SRRC) 5.8 GHz:4 km (FCC); 0.7 km (CE); 4 km (SRRC) |
| Recommended Frequency Band | 5.8 GHz; CE: 2.4 GHz; SRRC: 5.8 GHz |
| Video Format | MP4 (MPEG4) |
| I/O Interface | S.Bus, Micro USB, PPM, UART, MMCX, Micro SD card slot |
| Supported Flight Control Systems | F3, F4, KISS, NAZE |
| Supported Remote Controllers | X9D (Frsky), DEVO 10 (Walkera), T8FG (Futaba),T14SG (Futaba), WTF09sll (WFLY), AT9S (RadioLink) |
| Operating Temperature Range | 32° to 104° F (0° to 40° C) |
| Input Power | 9-16.8 V (3S-4S) |
