- Stock: In Stock
- Model: 971082
Compass direction toward:
Description:

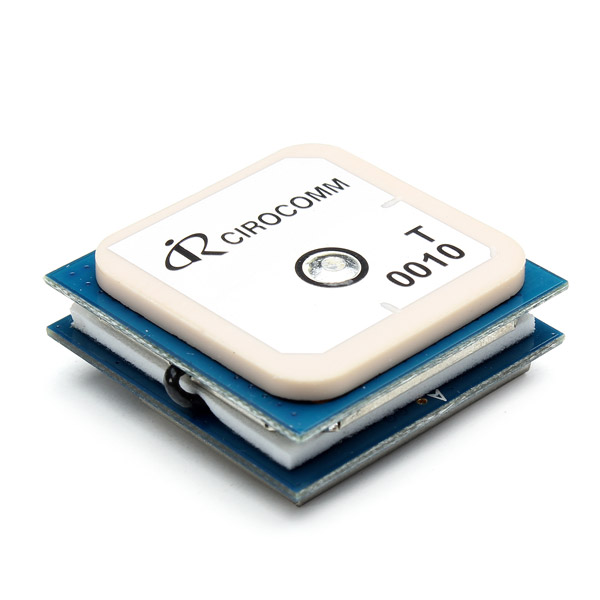

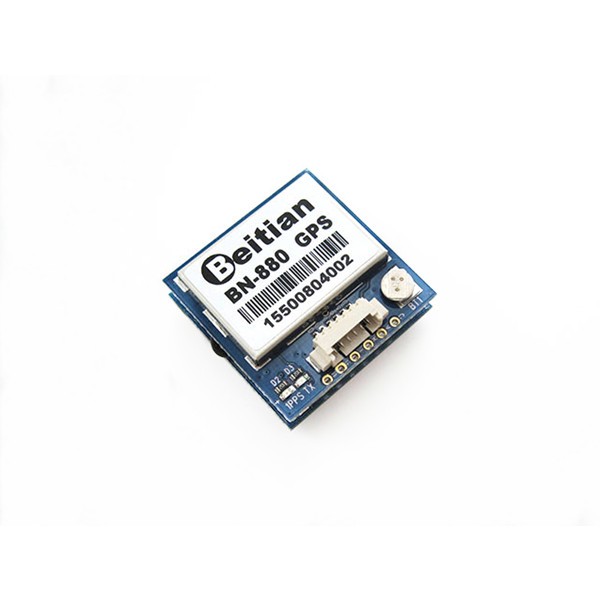

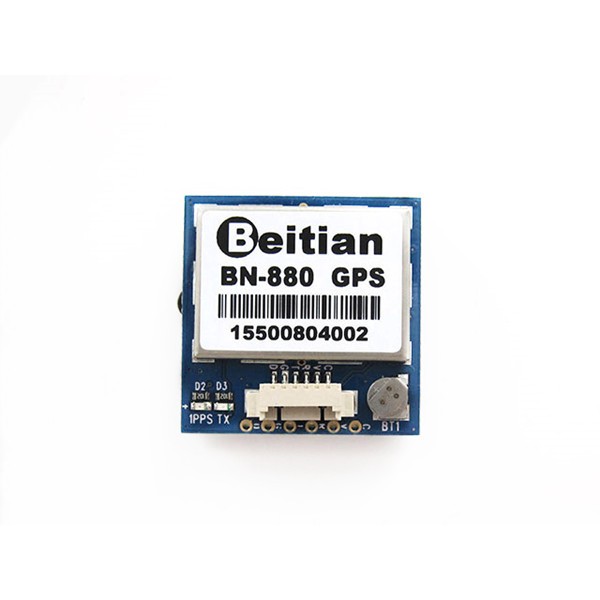

Model:BN-880ÂÂ
Power Supply:DC Voltage 2.8V~6.0V,Typical:3.3V or 5.0V
Consumption:Capture 50mA@5V
Receiving Format:GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Receiving Channel:72 Searching Channel
Receiving Sensitivity:Trace -167dBm
                    Capture-148dBm
Positioning Time:Cold Start:avg26s
                Warm Start:avg25s
                Hot Start:avg3s
Level Positioning Precison:2m At Open Wind
Output Frequency:1Hz-10Hz,Default 1Hz
Speed Precison:0.1 m/s (Without Aid)
Acceleration Precison:0.1 m/s (Without Aid)
Dynamic Characteristics:Max Height:18000m
                       Max Speed:5153m/s
                       Max Acceleration:4G
UART Interface:UART Port:TXDA and RXDA
              Support Rate:4800bps to 115200bps,Default 38400dps
Working Temperature:-40℃-+85℃
Storage Temperature:-40℃-+85℃
Size:28mm x 28mm x 10mm
Weight:10g

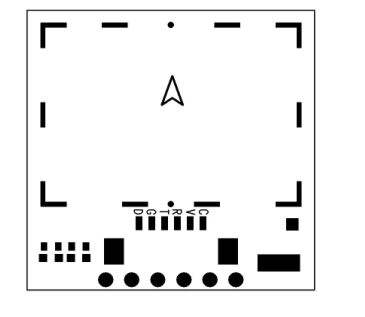

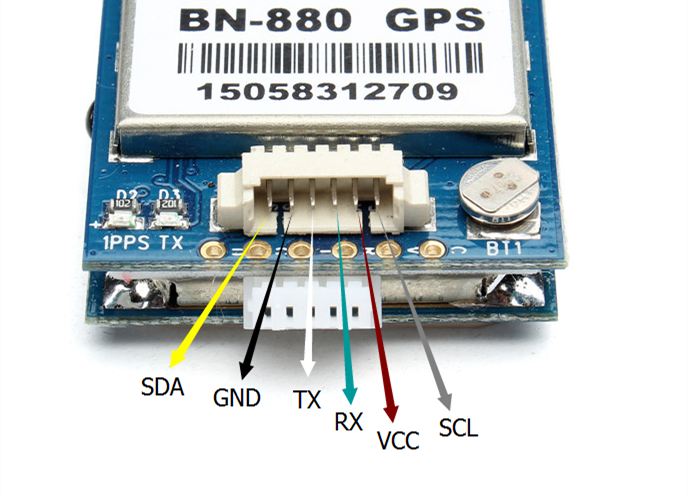

The Module’s Pins:SDA,GND,TX,RX,VCC,SCL
ÂÂ
Features:
GPS Module,Dual Module Compass
With electronic compass IC HMC5883L
1.25mm spacing between the 6pins patch seat
Note:Can not use for flight control with SCM,but it is  suitable for Open source flight controller.
ÂÂ
GPS Program Set up documents and instructions:Please click here
BN-880 GPS Configuration files
ÂÂ

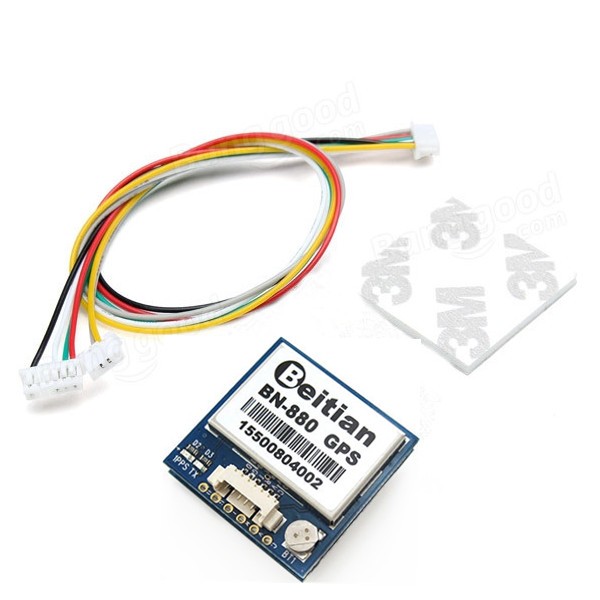

Pcakage Included:
1x BN-880 GPS ModuleÂÂ
1x 15cm Cable
