Auto Tire Air Pressure Monitor Sensor TPMS Reset Tools OEC-T5 for GM Series EL-50448

Auto Tire Air Pressure Monitor Sensor TPMS Reset Tools OEC-T5 for GM Series EL-50448
Auto Tire Air Pressure Monitor Sensor TPMS Reset Tools OEC-T5 for GM Series EL-50448
Auto Tire Air Pressure Monitor Sensor TPMS Reset Tools OEC-T5 for GM Series EL-50448
Auto Tire Air Pressure Monitor Sensor TPMS Reset Tools OEC-T5 for GM Series EL-50448
Auto Tire Air Pressure Monitor Sensor TPMS Reset Tools OEC-T5 for GM Series EL-50448
Auto Tire Air Pressure Monitor Sensor TPMS Reset Tools OEC-T5 for GM Series EL-50448
Auto Tire Air Pressure Monitor Sensor TPMS Reset Tools OEC-T5 for GM Series EL-50448
Auto Tire Air Pressure Monitor Sensor TPMS Reset Tools OEC-T5 for GM Series EL-50448
Auto Tire Air Pressure Monitor Sensor TPMS Reset Tools OEC-T5 for GM Series EL-50448
Auto Tire Air Pressure Monitor Sensor TPMS Reset Tools OEC-T5 for GM Series EL-50448
Auto Tire Air Pressure Monitor Sensor TPMS Reset Tools OEC-T5 for GM Series EL-50448
Auto Tire Air Pressure Monitor Sensor TPMS Reset Tools OEC-T5 for GM Series EL-50448
Auto Tire Air Pressure Monitor Sensor TPMS Reset Tools OEC-T5 for GM Series EL-50448
  • Stock: In Stock
  • Model: 1290885

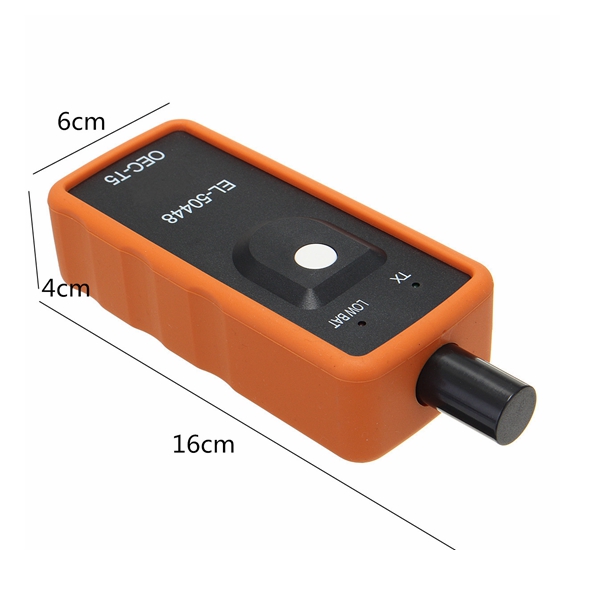

  • Dimensions: 16.00cm x 6.00cm x 4.00cm
$14.27
Ex Tax: $14.27







Feature:
1. Suitable for a variety of models
2. Light and easy to carry

Specification:

Material Plastic Case
Color Black + Orange
Size 16 x 6 x 4CM
Voltage 12V
Working Temperature       56 ℃

How to use? (Instructions)
Sensor function - use pressure increase / decrease method
In the standstill mode, each sensor performs a pressure measurement sample every 30 seconds. If the tire pressure is increased
or decreased by more than 8.3 kPa (1.2 lbf / s) compared to the last measured value, a re-measurement is made immediately to
confirm the barometric pressure change. If the barometric pressure does change, the sensor is transmitted in read-in mode. In the
tire pressure monitor read mode, when the body control module receives a read mode transmission signal, the sensor identification
code is assigned to the vehicle and its read order corresponding to the location, re-read mode cancellation


The preferred diagnostic device re-reads the enabling method
1. Depress the parking brake (manual transmission only).
2. Turn on the ignition switch to the ON position and use the diagnostic tool to start the "Tire Pressure Sensors Learn" mode.
If you hear the loudspeaker, you will see that the re-read mode is enabled. The left front turn signal will also light up.

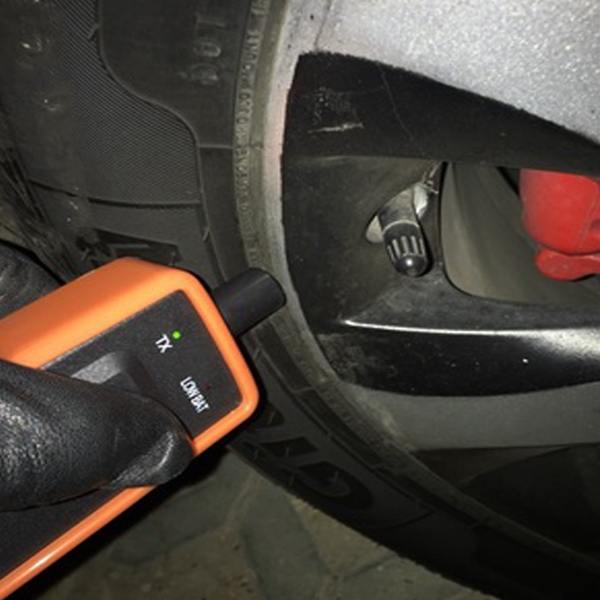

3. From the left front tire, keep the antenna of the tire pressure monitoring tool facing up against the tire sidewall near the rim
of the valve core. Press and release the start button and wait for the speaker to emit a chirp. Once the speaker is chirping, the
sensor information is read and the turn signal light to be read into the next position will light.
4. After the speaker is ringing and the right front turn signal light is on, the remaining three sensors repeat the steps in the
following order:
4.1 right front
4.2 right rear
4.3 left after the left
5. When the left rear sensor has been read and the speaker is also issued twice, the read process is completed and the body
control module also exits the re-read mode.
6. Set the ignition switch to the OFF position and adjust all tire pressure to the recommended value. See "Vehicle Certificates,
Tire Labels, Security and Service Parts Identification Numbers".


Package Included:
1 X Resetter


Auto-Tire-Air-Pressure-Monitor-Sensor-TPMS-Reset-Tools-OEC-T5-for-GM-Series-EL-50448-1290885

Auto-Tire-Air-Pressure-Monitor-Sensor-TPMS-Reset-Tools-OEC-T5-for-GM-Series-EL-50448-1290885

Auto-Tire-Air-Pressure-Monitor-Sensor-TPMS-Reset-Tools-OEC-T5-for-GM-Series-EL-50448-1290885
Auto-Tire-Air-Pressure-Monitor-Sensor-TPMS-Reset-Tools-OEC-T5-for-GM-Series-EL-50448-1290885
Auto-Tire-Air-Pressure-Monitor-Sensor-TPMS-Reset-Tools-OEC-T5-for-GM-Series-EL-50448-1290885
Auto-Tire-Air-Pressure-Monitor-Sensor-TPMS-Reset-Tools-OEC-T5-for-GM-Series-EL-50448-1290885
