AC170-240V Isolated Touch Light Switch for Bathroom Mirror Energy Saving LED Light Lamp
- Stock: In Stock
- Model: 1399338
$11.41
Ex Tax: $11.41
Specification:
Operating voltage: AC170-240V 50/60Hz
Load type: energy-saving lamps, H tubes, LED lamps and various household appliances
Load wattage:≤500W
Appearance size: host: 75*43*21mm
Touch head: 50*35*16mm
ÂÂ
Feature:
This switch is an isolated touch induction switch, suitable for medium (such as glass, acrylic, plastic, ceramic, etc.) on all kinds of lamps and lanterns body, in the case of isolation protection without touching metal parts separated by glass can be induced trigger switch work, to achieve the touch function, high safety performance. Switch use no mechanical wear, long life, switch installed mirror front can not see the switch accessories, just see the back light through the touch of the logo, beautiful and generous, is the wise choice to make high-end products.
The background lamp is designed on the touch switch board, and the background light and the touch switch design are integrated. When the power supply is connected with the switch, the background light on the switch board will light up and the background light will always be on.
Touch switch function: when the human body first touch is to turn on the light, touch again turn off the light, circulation in turn.
Can ensure the safety of users of electricity, there is a breakthrough absorber, can effectively prevent external and external interference.
Suitable for all kinds of lamps and lanterns with medium (such as glass, acrylic, plastic, ceramic, etc.).

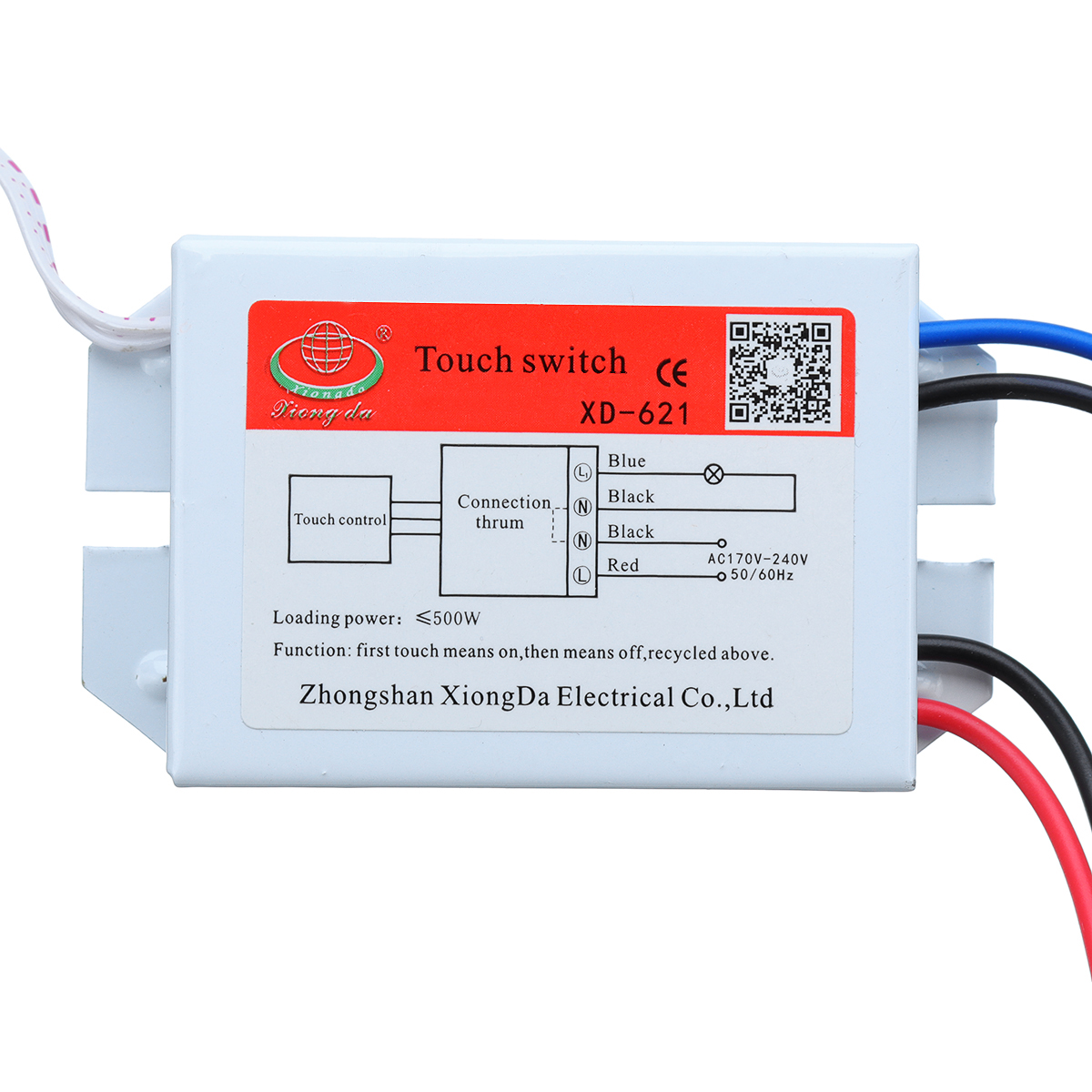

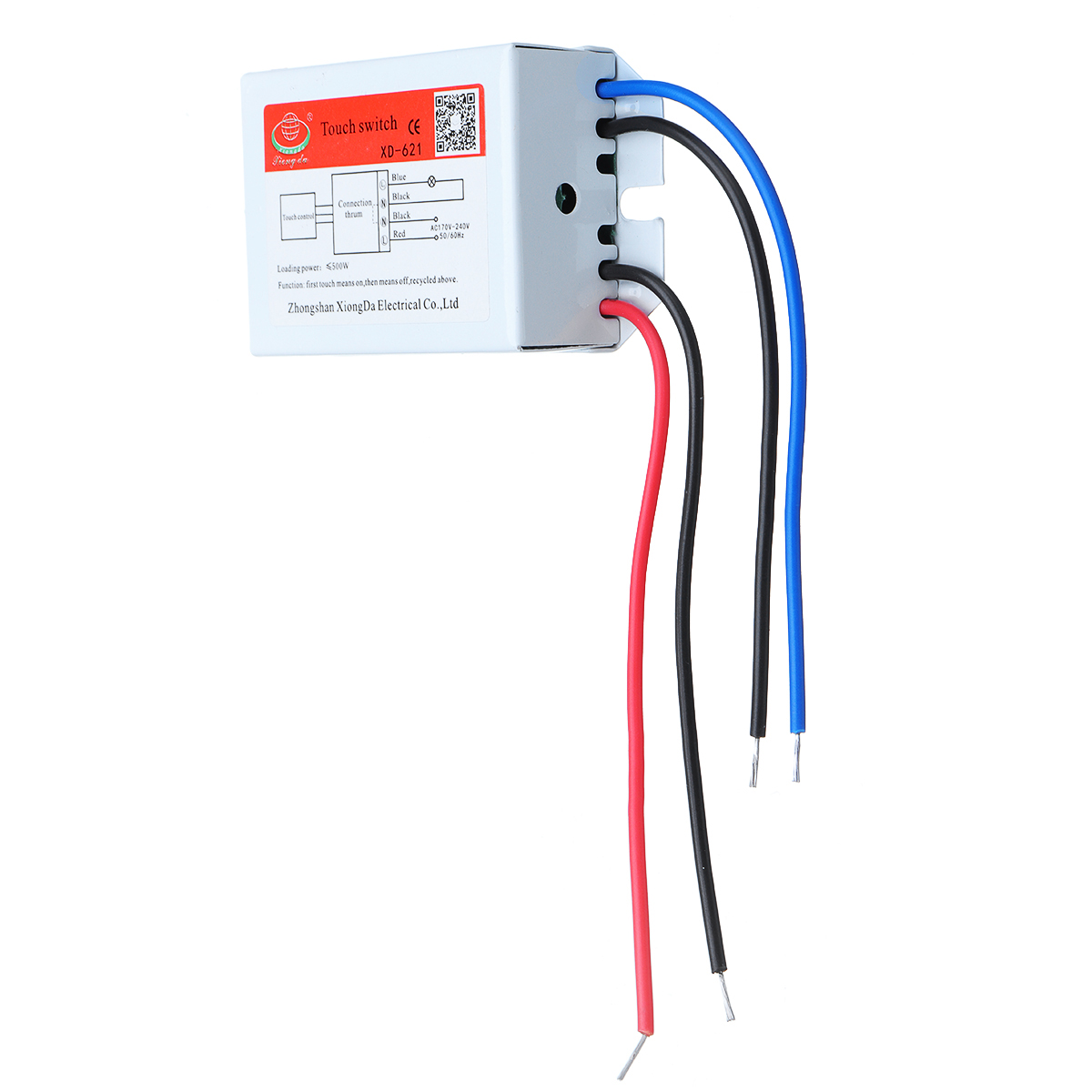

Connection: black line and red line to AC220V input, another black line and blue line for AC220V output light, black touch head mounted on the back of the mirror.
ÂÂ
Installation steps:
Note: please cut off the main power switch before installation.
1. Connect the black line and red line on the host to AC220V input, and the other black line and blue line to AC220V output to connect the lamps.
2. Fix the host machine in the desired position with screws;
3, in the mirror design of a touch point, the size of the touch point straight through 10-18mm, first of all, the lens touch point around the mercury hit off, hit off the mercury width is best 1.5-2mm, hit off the mercury position just backlight can be transparent, at a glance can see the touch position, that is, beautiful, and convenient to find the touch switch.

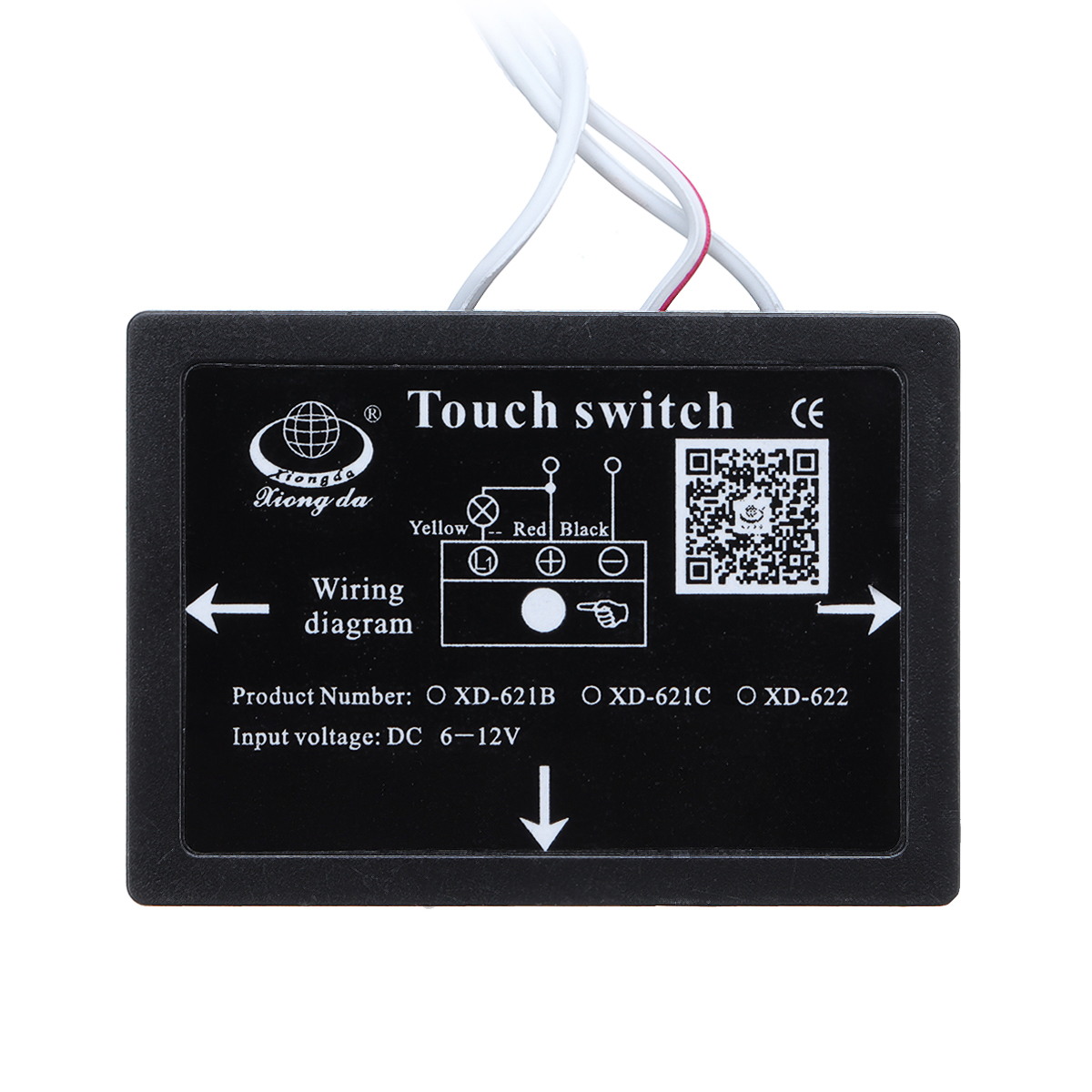

4, installing a switch in the center of the touch point do a reticle, switch box has three arrow on line, three arrow lines to aim at the touch point of any three of the reticle line,, (because touch switch board on the center position of 10 mm diameter for touch sensitive region, so be sure to aim the touch-sensitive area on the touch switch board touch point) of the mirror out of mercury, aim to touch, touch pad with viscose, rayon surface has a sticker, take off the sticker, for good on the lens can be opposite, affix test after switch is no problem to make sure that the permanent don't fall off, It can be fixed in other ways.
ÂÂ
Package included:
1 * touch dimmer switch
