Hantek DSO1062B 2 in 1 Handheld Oscilloscope 2 Channels 60MHZ 1GSa/s sample rate 1M Memory Depth 6000 Counts Multimter DMM with Analog Bargraph
- Stock: In Stock
- Model: 1280031
- Dimensions: 245.00mm x 163.00mm x 52.00mm
$383.99
Ex Tax: $383.99
Features:
ÂÂ

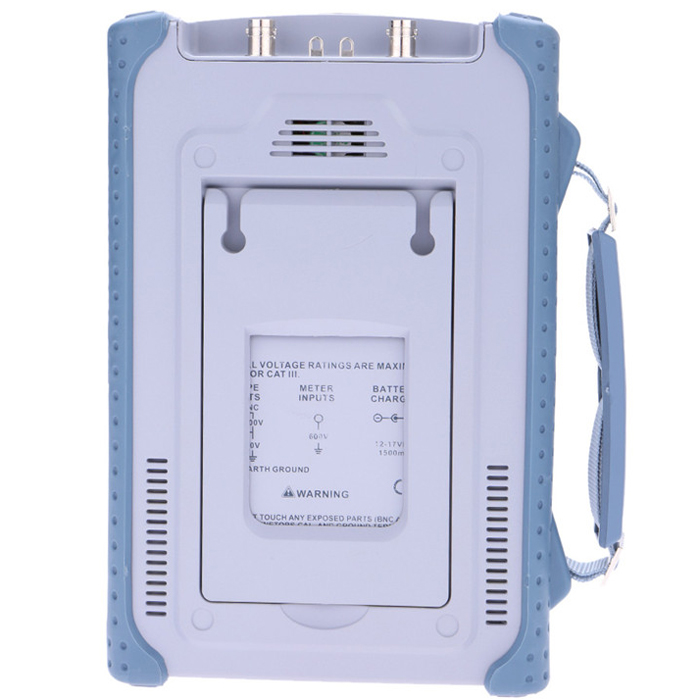

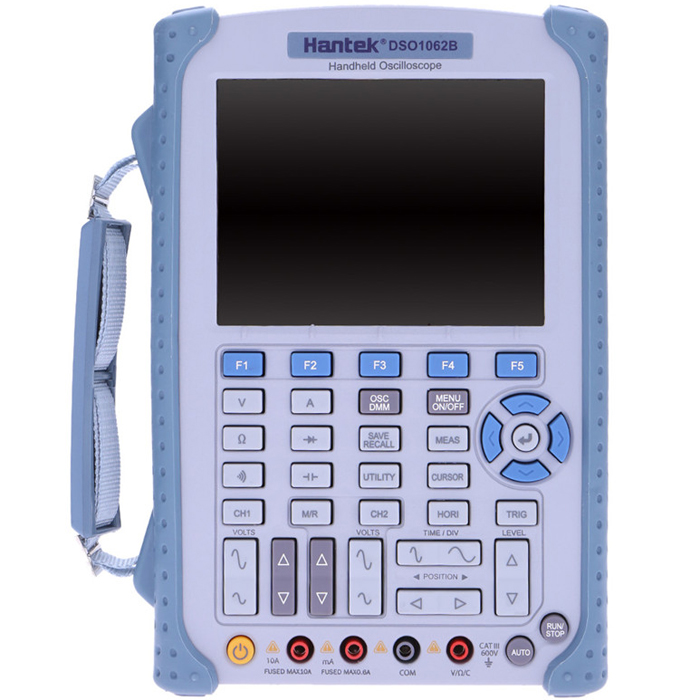

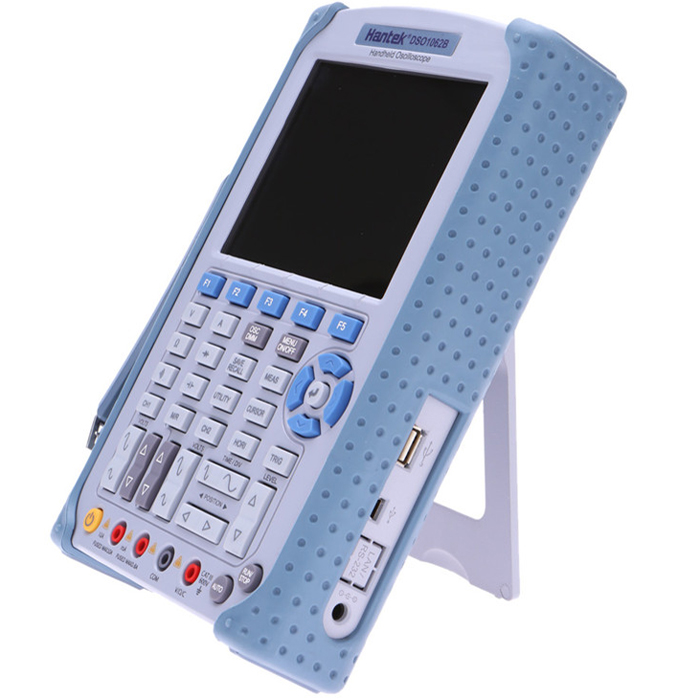

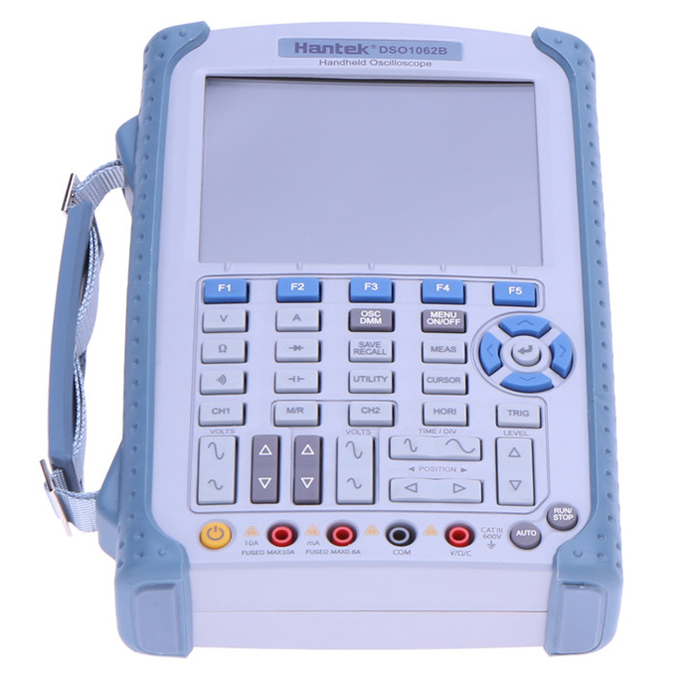

Detail Pictures:
60MHz Oscilloscope, 1GS/s sample rate, and 6000 Counts DMM with analog bargraph.
1M Memory Depth.
High Refresh Rate (2500 frames).
Large 5.6 inch TFT Color LCD Display; High Resolution(640*480); Dual-Window Design --More clear, More Detailed
One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform.
Easy-to-use pop-up menu with built-in multi-language help system.
32 Automatic Measurements.
Waveform Math: Add, Subtract, Multiply, and Divide.
Store and recall over.
Automatic cursor tracking measurements.
XY Mode.

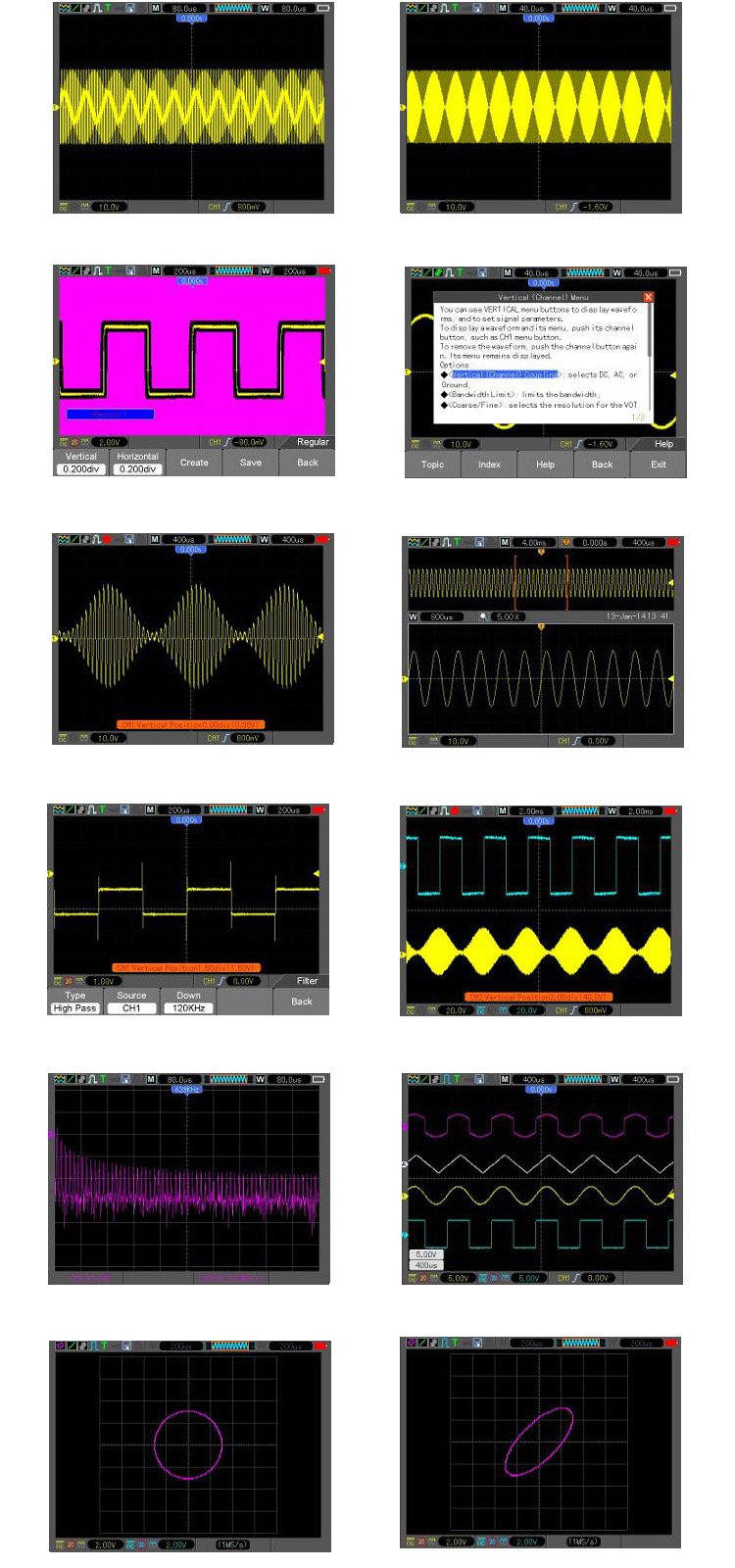

Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems.
Waveform Recorder to capture/r eplay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames.
Pass/Fail function compares a stored waveform to an unknown input.
Average Mode for smoothing waveforms.
Square Wave Output (2V, 1kHz) for probe adjustment.
USB Host/Device 2.0 full-speed interface; support removeable disk;  LAN Option, easy to control by PC or long-distance.
Dimensions (mm): 240(L) x 165(W) x 50(H), be carried easily

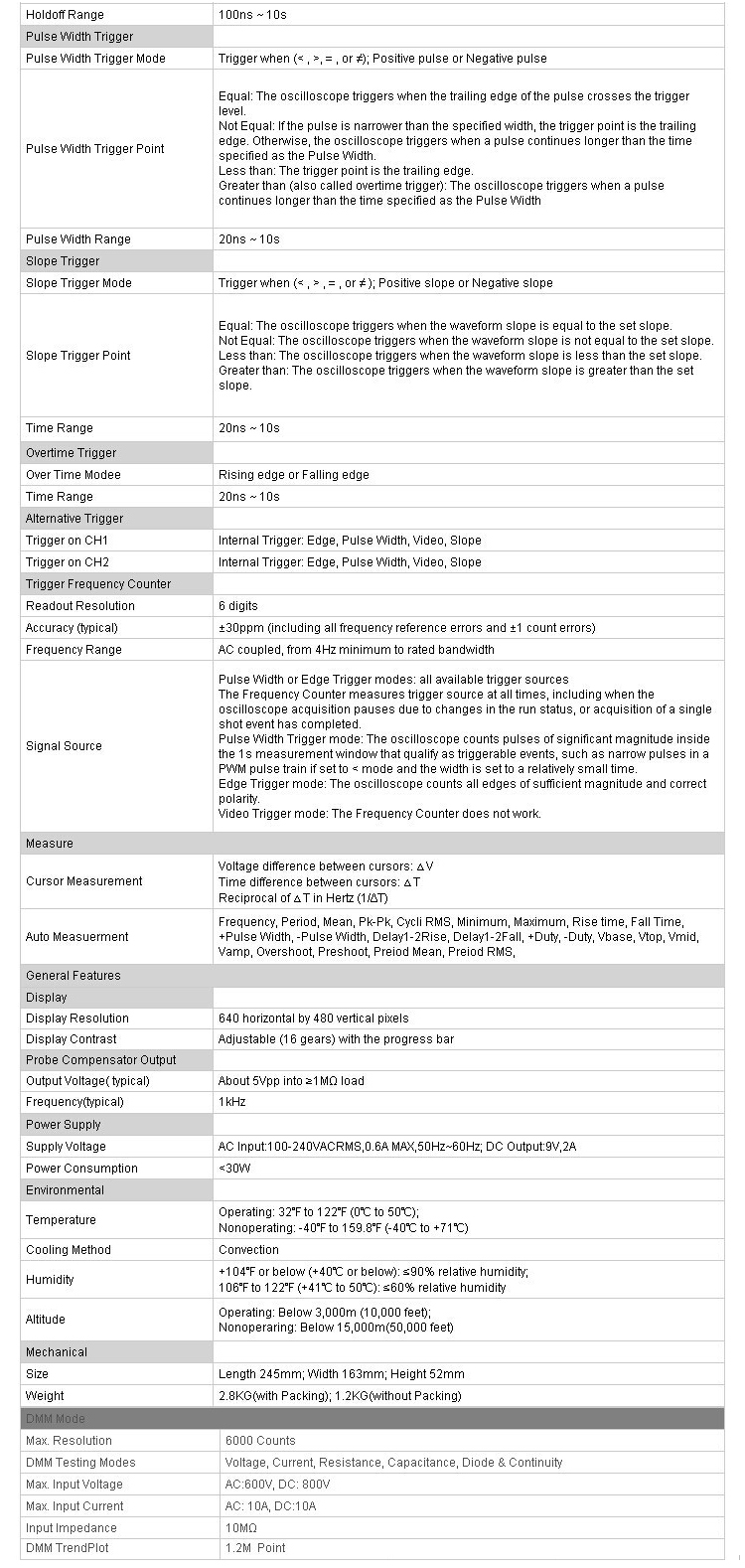

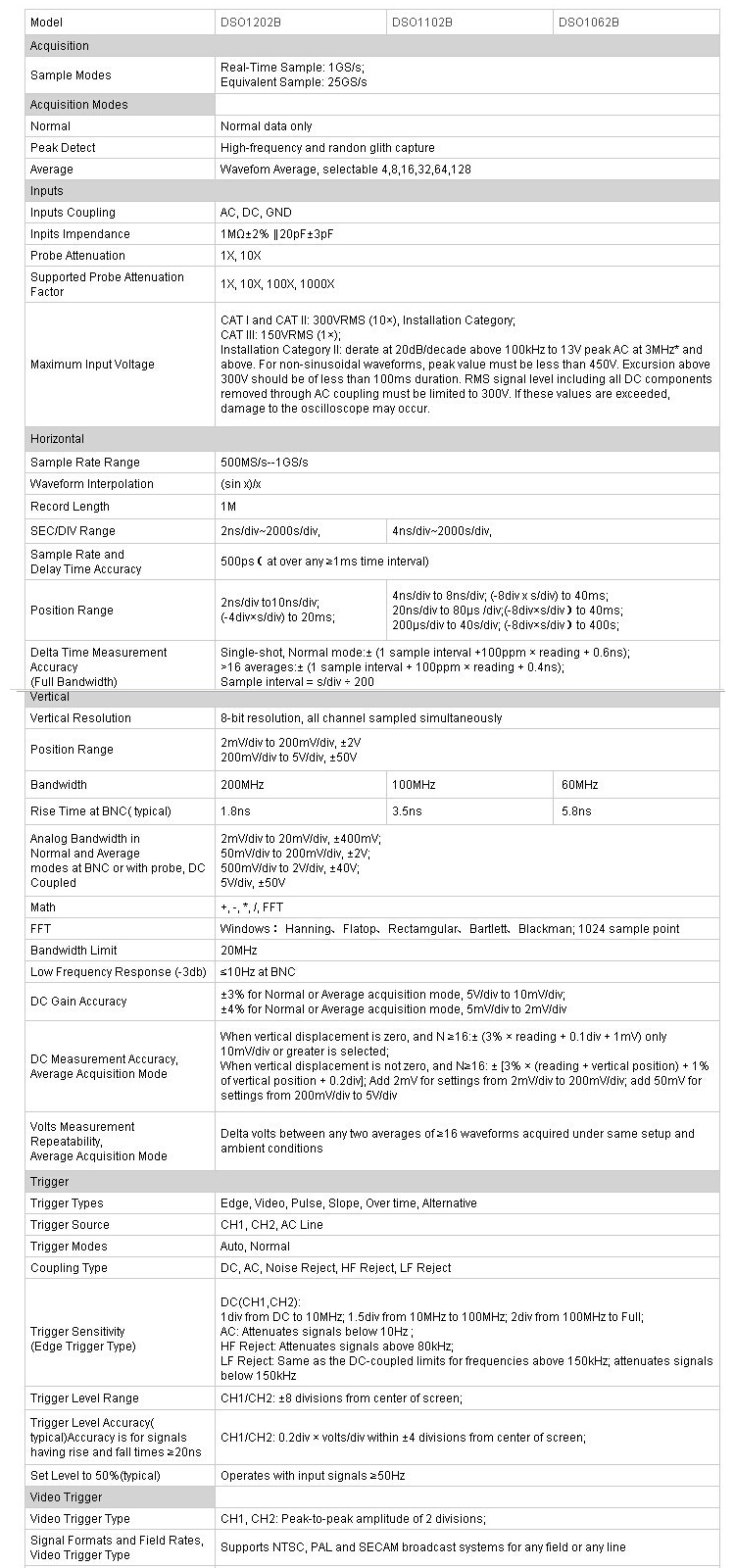

Specification:
Specification:
| Model | DSO1202B | DSO1102B | DSO1062B |
| Oscilloscope mode | |||
| Bandwidth | 200MHz | 100MHz | 60MHz |
| Real-time Sample Rate | 1GSa/s | ||
| Equivalent Sample Rate | 25GSa/s | ||
| Record Length(Sample Points) | Single-channel: Maximum 1M; Dual-channel:Maximum 512k | ||
| SEC/DIV Range | 2nS/div-2000S/div (in a 2, 4, 8 sequence) | ||
| Delay Time Accuracy | 500ps | ||
| Vertical | |||
| A/D Converter | 8-bit resolution | ||
| VOLTS/DIV Range | 2mV/div¡«5V/div at input BNC | ||
| Position Range | ±50V(5V/div), ±40V(2V/div¡«500mV/div), 2V(200mV/div¡«50mV/div)±400mV(20mV/div¡«2mV/div) | ||
| Rise Time at BNC | ≤1.7ns | ≤3.5ns | ≤5.8ns |
| DC Gain Accuracy |
±4% for Sample or Average acquisition mode, 5mV/div to 2mV/div ±3% for Sample or Average acquisition mode, 5V/div to 10mV/div |
||
| Trigger | |||
|
Trigger Sensitivity (Edge Trigger Type) |
DC: CH1/CH2(Typical) 1div from DC to 10MHz; 1.5div from 10MHz to Full EXT£¨Typical£© 200mV from DC to 40MHz EXT/5£¨Typical£© 1V from DC to 40MHz AC: Attenuates signals below 10Hz HF Reject: Attenuates signals above 80kHz LF Reject: Attenuates signals below 150kHz Noise Reject: Reduces trigger sensitivity |
||
| Trigger Level Range |
CH1, CH2: ±8 divisions from center of screen EXT: ±1.2V EXT/5: ±6V |
||
|
Trigger Level Accuracy, typical (Accuracy is for signals having rise and fall times ≥20ns) |
CH1, CH2: ±(0.3div×V/div) (within ±4 divisions from center of screen) | ||
| Holdoff Range | 100ns-10s | ||
| Trigger Type | |||
| Edge | Trigger on the rising or falling edge | ||
| Pulse Width |
Trigger (when >,<,=,≠) on positive or negative pulses Pulse Width Range: 20ns-10s |
||
| Video |
Trigger on an NTSC, PAL, or SECAM standard video signal Line Range: 1-525 (NTSC), 1-625 (PAL/SECAM) |
||
| Slope |
Trigger (when >,<,=,≠) on a positive or negative slope Set Time: 20ns–10s |
||
| Overtime |
from the rising or falling edge Set Time: 20-10s |
||
| Alternate | Internal trigger on edge, pulse width, video or slope | ||
| Measurement | |||
| Cursors |
Manual: The difference between voltage cursors ¡÷V; the difference between time cursors ¡÷T; 1/¡÷T calculated by Hz. Tracing: The voltage and time at a waveform point |
||
| Automatic | Pk-Pk, Max, Min, Mean, Cyc RMS, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width | ||

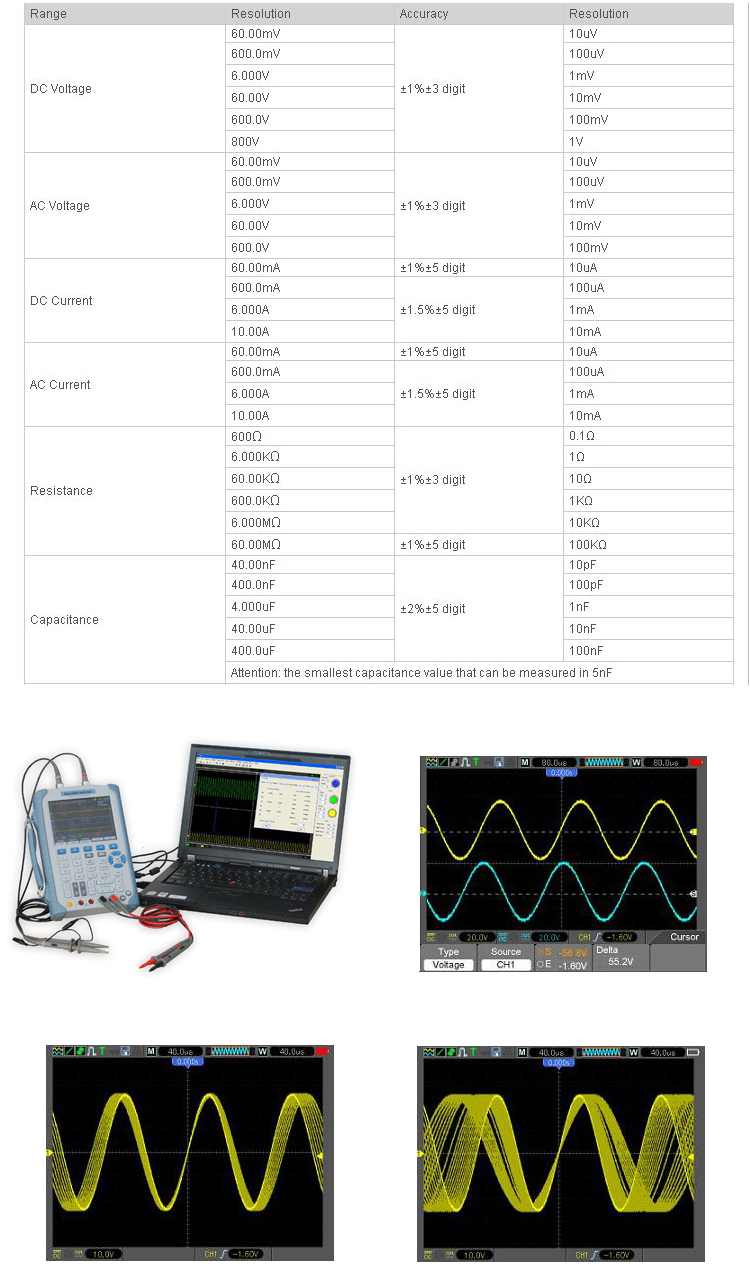

| Meter Mode | |||
| Max.Resolution | 6,000 Counts | ||
| DMM Testing Modes | Voltage, Current, Resistance, Capacitance,Diode & Continuity | ||
| Max. Input Voltage | AC: 600V, DC: 800V | ||
| Max. Input  Current | AC: 10A, DC: 10A | ||
| Input Impedance | 10 MΩ | ||
| Display | |||
| Type | Right angle 5.6 16-digit color LCD | ||
| Resolution | 640 x 480 dots | ||
| Contrast | 16 gears, with the progress bar to show adjustment | ||
| Interface | USB host and USB slave, Lan Optional | ||
| Power Supply | |||
| Voltage |  DC Input: 12-17VDC, 1500mA | ||
| Mechanical | |||
| Size | 245 x 163 x 52 (mm) | ||
ÂÂ

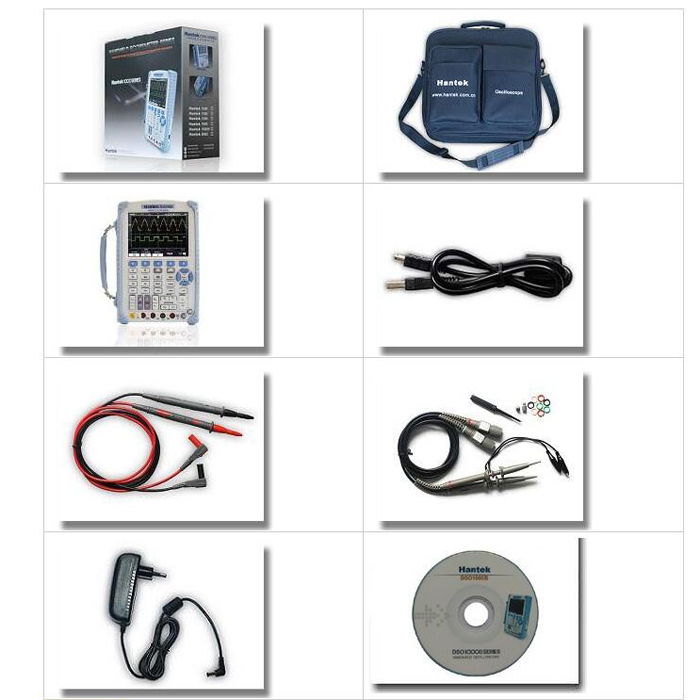

Package Included:ÂÂ
ÂÂ
1 x Hantek DSO1062B Digital Handheld Oscilloscope
2 x Oscilloscope Probe
1 x Test Probe
1 x USB Cable
1 x CD and Manual
1 x Wall charger with EU,US, Standard Plug
1 x Package bag
