Hantek 6254BC PC USB Oscilloscope 4 Channels 250MHz 1GSa/s Waveform Record Function Portable Osciloscopio

Hantek 6254BC PC USB Oscilloscope 4 Channels 250MHz 1GSa/s Waveform Record Function Portable Osciloscopio
Hantek 6254BC PC USB Oscilloscope 4 Channels 250MHz 1GSa/s Waveform Record Function Portable Osciloscopio
Hantek 6254BC PC USB Oscilloscope 4 Channels 250MHz 1GSa/s Waveform Record Function Portable Osciloscopio
Hantek 6254BC PC USB Oscilloscope 4 Channels 250MHz 1GSa/s Waveform Record Function Portable Osciloscopio
Hantek 6254BC PC USB Oscilloscope 4 Channels 250MHz 1GSa/s Waveform Record Function Portable Osciloscopio
Hantek 6254BC PC USB Oscilloscope 4 Channels 250MHz 1GSa/s Waveform Record Function Portable Osciloscopio
Hantek 6254BC PC USB Oscilloscope 4 Channels 250MHz 1GSa/s Waveform Record Function Portable Osciloscopio
Hantek 6254BC PC USB Oscilloscope 4 Channels 250MHz 1GSa/s Waveform Record Function Portable Osciloscopio
Hantek 6254BC PC USB Oscilloscope 4 Channels 250MHz 1GSa/s Waveform Record Function Portable Osciloscopio
  • Stock: In Stock
  • Model: 1375813
Based on 0 reviews. - Write a review
$250.00
Ex Tax: $250.00
Add to Cart
Buy Now
Add to Wish List







Features:

The performance of this model could even better than the performance of benchtop oscilloscope. It has 4 independent analog channels, 1GSa/s real-time sampling rate, 2mV-10V/DIV input sensitivity, and 250MHz bandwidth.
Pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record and re play function. The operation interface is similar to banchtop oscilloscope, easy to operate with high cost performance.
USB2.0 Interface, plug and play device.
Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.
Fit for the portable computers, table PC, and repairing/fixing of production line. Suitable for business trip use.
Software support: Windows10, Windows 8, Windows 7
The waveform data could be output to EXCEL,BMP,JPG as time and voltage category.
More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.
Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
FFT spectrum analyzer
One computer could connect with multiple oscilloscopes, expand the channel number easily.
USBXI standard interface, easy to insert into USBXI case to constitute assembling instrument.
Provide secondary development library DLL; Provide LabviewVBVCQT developing examples

Specification:

Model

Hantek6254BC

Bandwidth

250MHz

Channel

4 CH

Real-time Sampling Rate

1GSa/s

Memory Depth

64K

Time BasePrecision

±50ppm

Time Base Range

2ns/div-1000s/div (1-2-4 sequences)

Input Impedance

1MΩ 25pF

Input Sensitivity

2mV/div~10V/div

Vertical Resolution

8Bit

Vertical Displacement Range

2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe;
200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe

DC Gain Accuracy

±3%

Bandwidth

20MHz

Trigger Mode

Edge, Pulse, Video, Alternative

Trigger Source

CH1, CH2, CH3,CH4

Waveform Signal Process

+,-,x,÷,FFT, Invert

Cursors Measurement

Cross, Trace, Horizontal, Vertical

Auto Measurement

Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot,
Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

Volume

175mm * 105mm * 25mm

Weight

0.9KG

Accessory

2 passive probes, 2 gator clip lines

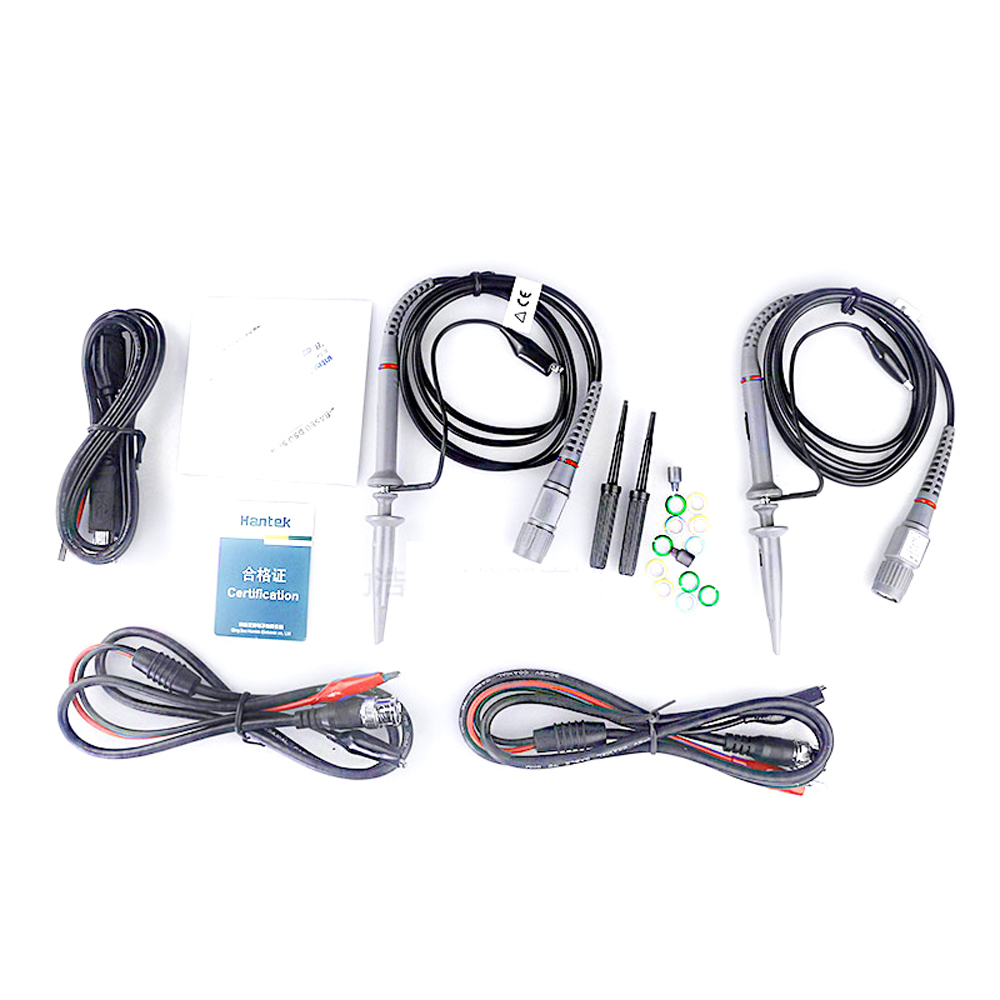

Package Included:

1 x 6254bc USB Oscilloscope
2 x Oscilloscope Probe
2 x BNC - Clip Cable
1 x USB Cable
1 x CD (driver / manual... inside)

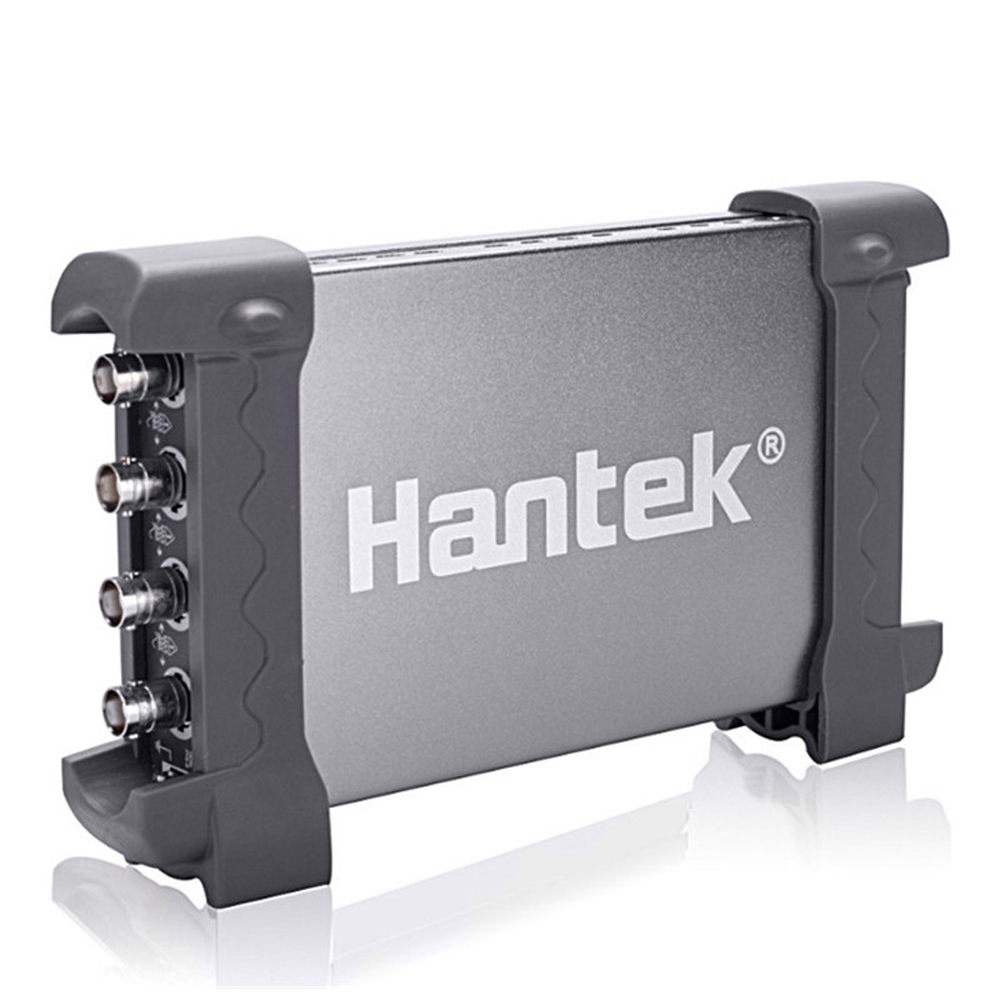

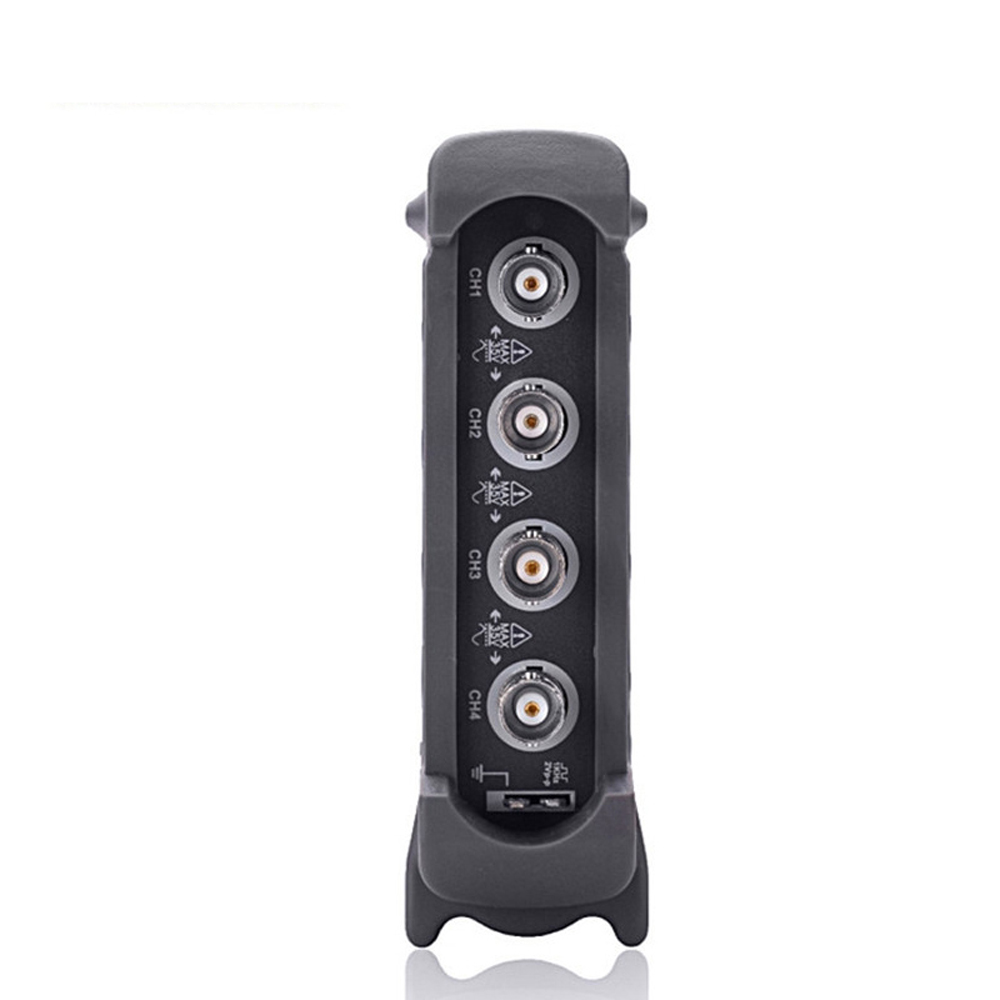

Details Pictures:



Hantek-6254BC-PC-USB-Oscilloscope-4-Channels-250MHz-1GSas-Waveform-Record-Function-Portable-Oscilosc-1375813

Hantek-6254BC-PC-USB-Oscilloscope-4-Channels-250MHz-1GSas-Waveform-Record-Function-Portable-Oscilosc-1375813

Hantek-6254BC-PC-USB-Oscilloscope-4-Channels-250MHz-1GSas-Waveform-Record-Function-Portable-Oscilosc-1375813

Hantek-6254BC-PC-USB-Oscilloscope-4-Channels-250MHz-1GSas-Waveform-Record-Function-Portable-Oscilosc-1375813
