User Manual, Please select Download
1. Frsky receiver
2. DSM2/DSMX receiver
3. Flysky receiver
Specifications:
Brand Name: Eachine

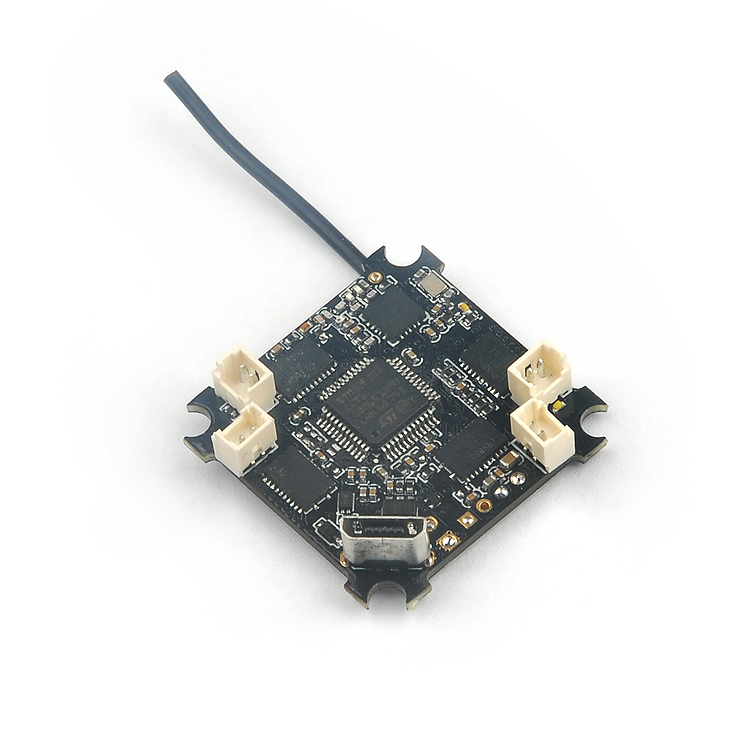

Item Name: Turtlebee F3 Brushed Flight controller
MCU: STM32F303CCT6
Gyro& Accelerometer: MPU6000
Working Voltage: 1S Lipo or LiHV
Firmware Target: Betaflight OMNIBUS
Motor Driver: Texas Instruments DRV8850
Continuous Current: 5A each
Peak Current: 8A each

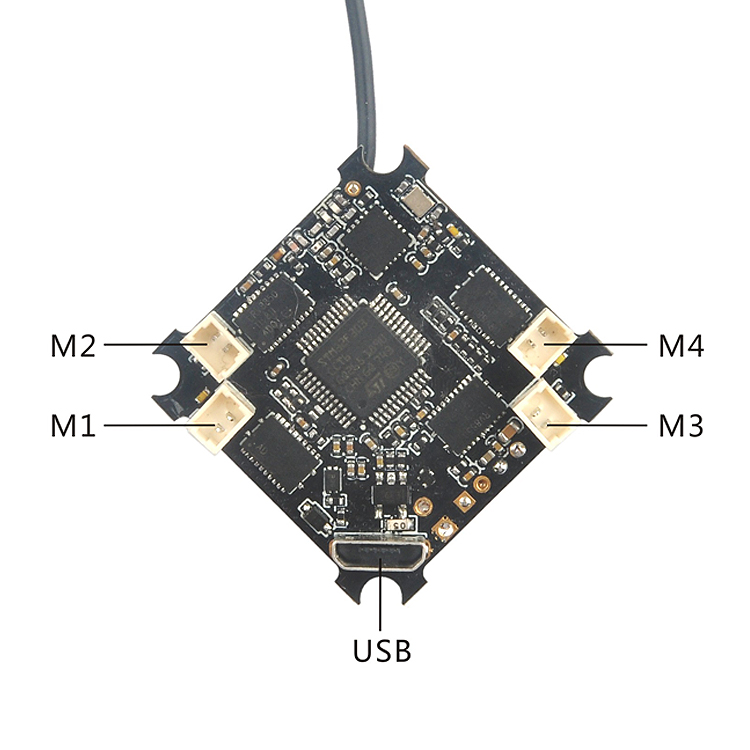

Motor Socket: JST 1.25MM 2pin
Mounting Hole Distance: 25.45*25.45mm
Diagonal Hole Distance: 36mm
Whole Size: 29.2*29.2mm

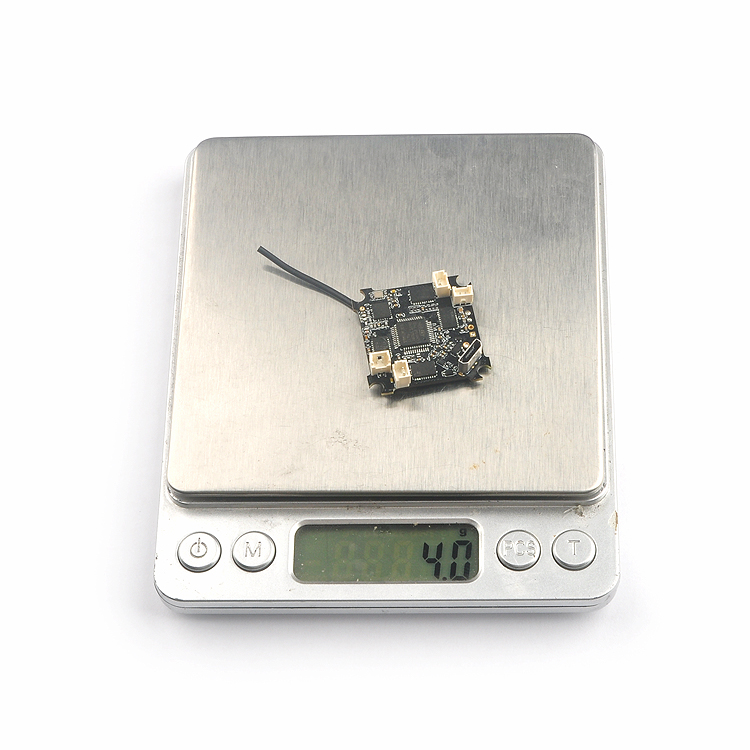

Weight: 4g
Features:
- Support ACRO/ Stable/ Horizon/ Air multi fly mode

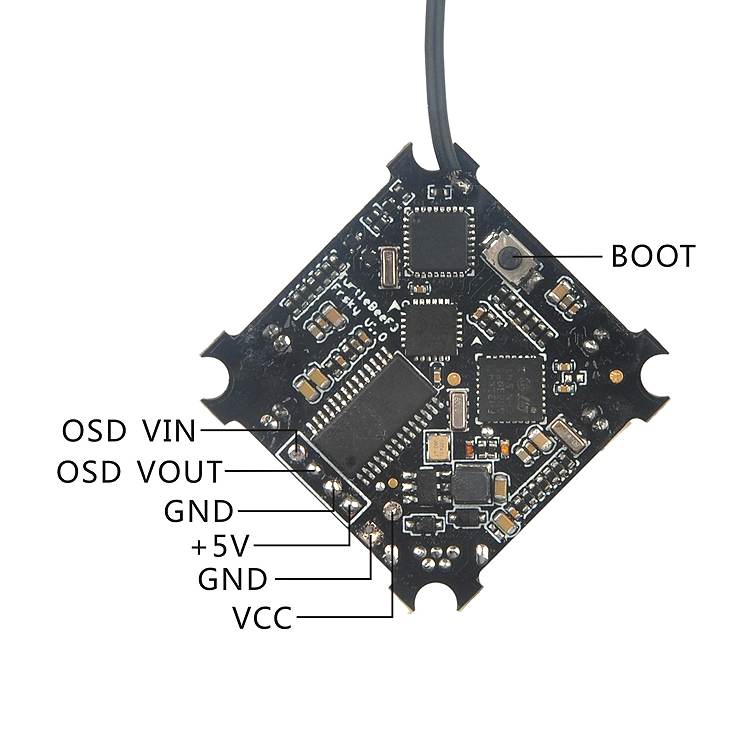

- Built-in Betaflight OSD
- Built-in 2.4g receiver (Frsky/Flysky/DSM2 DSMX to choose)
- Built-in voltage and current detector alarm

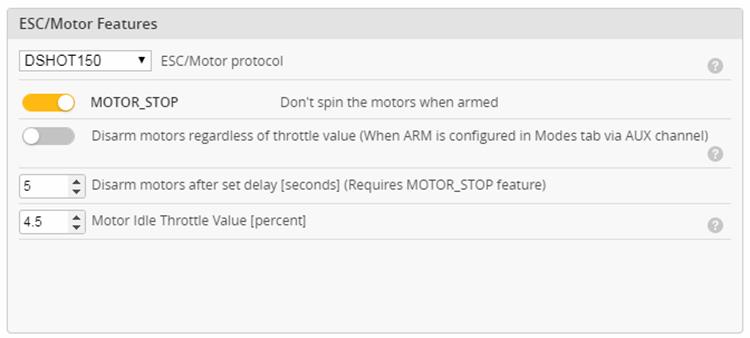

- Dshot150 protocol ready, support Betaflight flip over when crashed.
Receiver Option:
1. Frsky protocol D8 Mode
2. Flysky AFHDS-2A protocol
3. Spektrum DSM2/DSMX protocol
Compatible:
1.Frsky Receiver Support FRSKY X9D/X9D PLUS(D8 mode),and XJT (D8 Mode),DJT DFT DHT Transmitter.
2.Flysky Receiver Support Eachine i6, FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F, Turnigy Evolution Transmitter.
3.Spektrum DSM2/DSMX Receiver Support Spectrum/JR(DSM2/DSMX protocol) DEVO10/DEVO 7E(with deviation firmware).
Flip Over Setting:

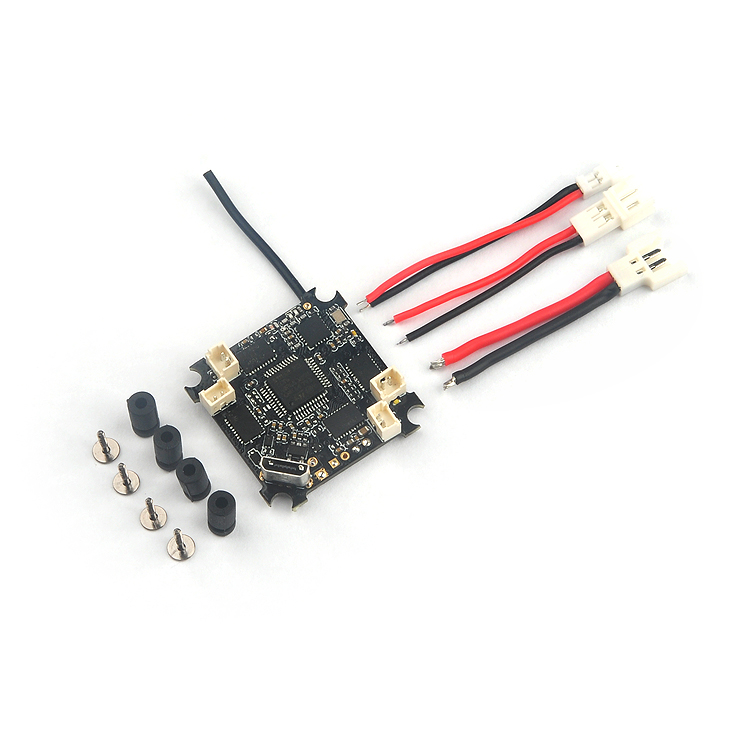

Package Included:
1 x Turtlebee F3 Flight controller
3 x Power Cable
4 x Rubber Shock Absorber
4 x Screws
