- Stock: In Stock
- Model: 1104884
Specification: User manual

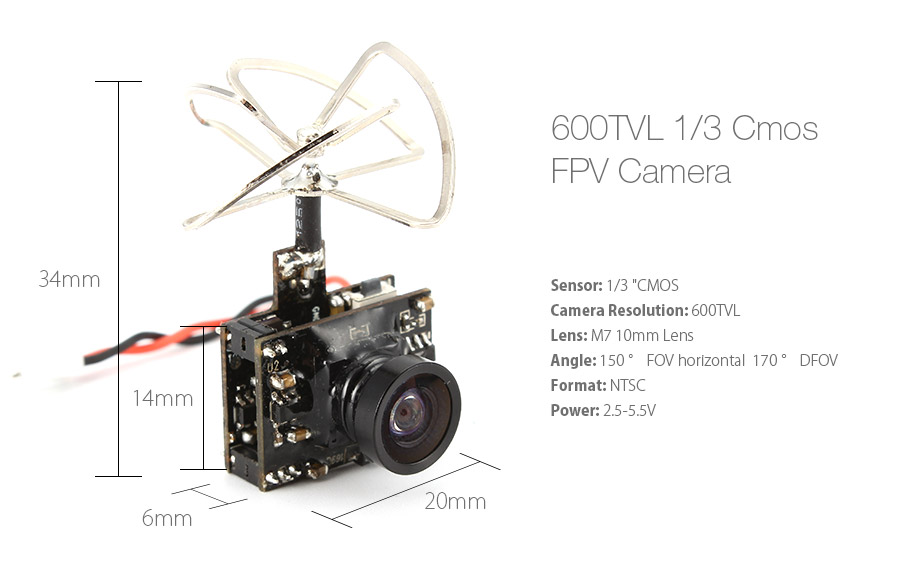

| Overall | Brand Name | Eachine |
| Item NO. | TX03 | |

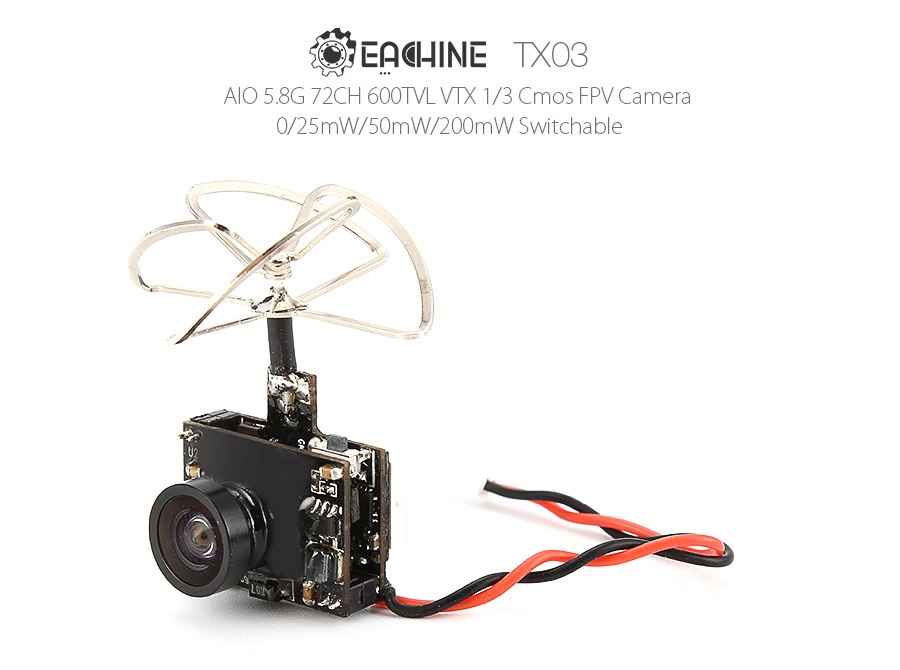

| Item name | AIO FPV VTX Camera | |
| Size | 20.66mm*14.06mm*6mm (not included antenna,lens) | |

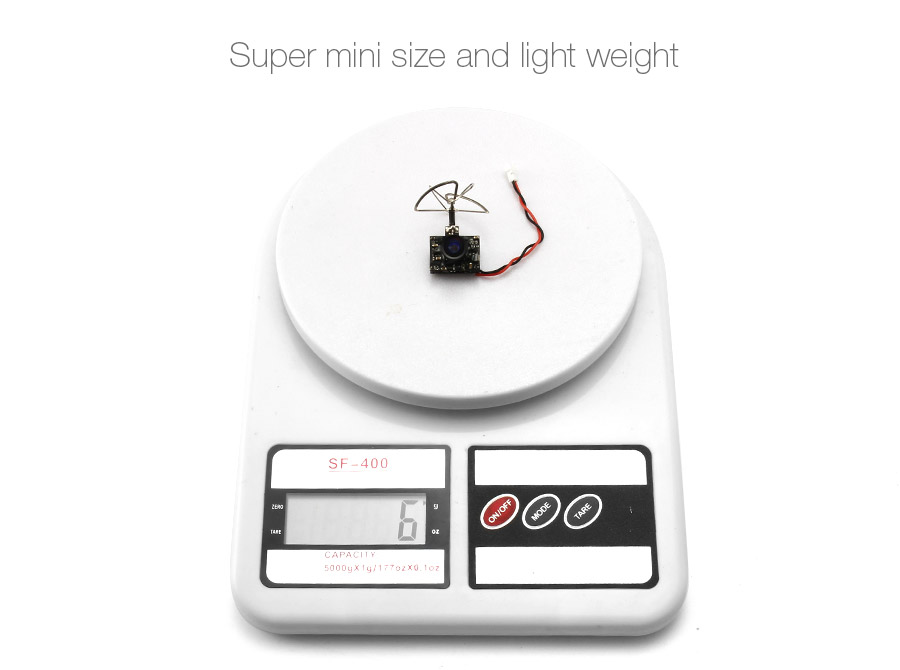

| Weight | 6g | |
| FPV Camera | Output power |
0/25mW/50mW/200mW (switchable) (Set output power on 0, to avoid frequency interference) |
| Input Power | 2.5-5.5V | |
| Sensor | 1/3 "CMOS | |
| Camera Resolution | 600TVL | |
| Lens | M7 10mm Lens | |
| Angle | 120 ° FOV horizontal viewing angle 150 ° DFOV diagonal perspective | |
| Mini illumination | 1 lux | |
| Format | NTSC | |
| Transmitter | Support video format | NTSC |
| Output Impedance | 50 Ohm | |
| Output signal strength | 13±1dbmdBm | |
| Output Power |
25mW:  14dBm 50mW:  17dBm 200mW: 23dBm |
|
| Wireless Channel | 72CH | |
| Antenna | RHCP circular polarization clover leaf antenna | |
| Antenna Size | 22x29mm | |
| Operating voltage | 2.5V ~ 5.5V | |
| Current consumption |
25mW:  250mA-510mA 50mW:  270mA-640mA 200mW: 330mA-740mA |
|
| Audio carrier | NO | |
| Battery | 1S Lipo Battery (3.7-4.2V) | |

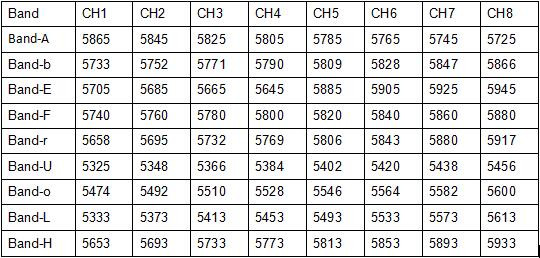

| Frequency Table |
5.8GHz 9 bands 72 channels
with Raceband: 5325-5945 MHZ   |
|

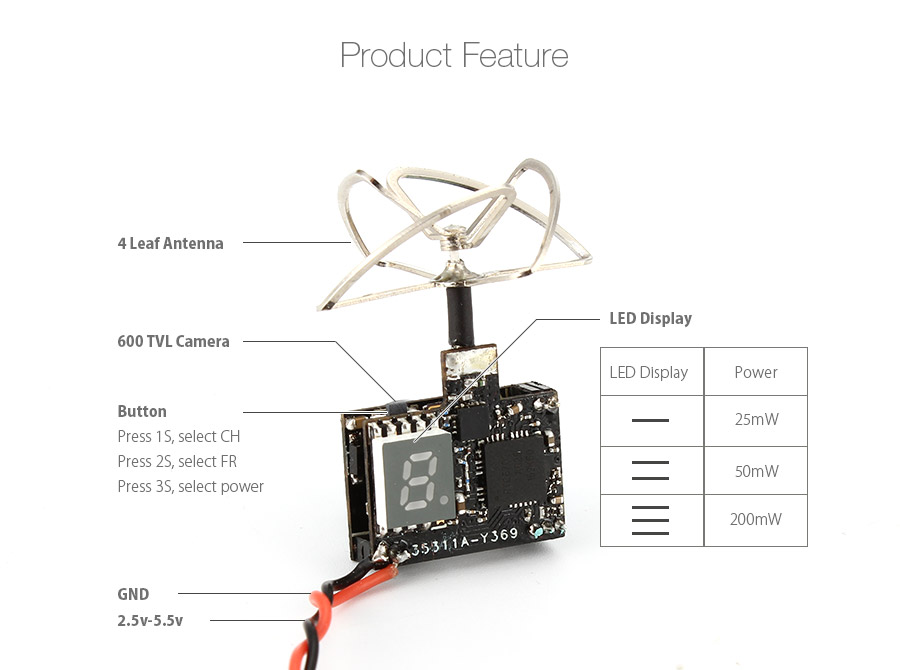

Feature:
AIO FPV camera, transmitter , atnenna all 3 functions in one limit size and weight
120 ° FOV horizontal viewing angle of 150 ° DFOV diagonal perspective

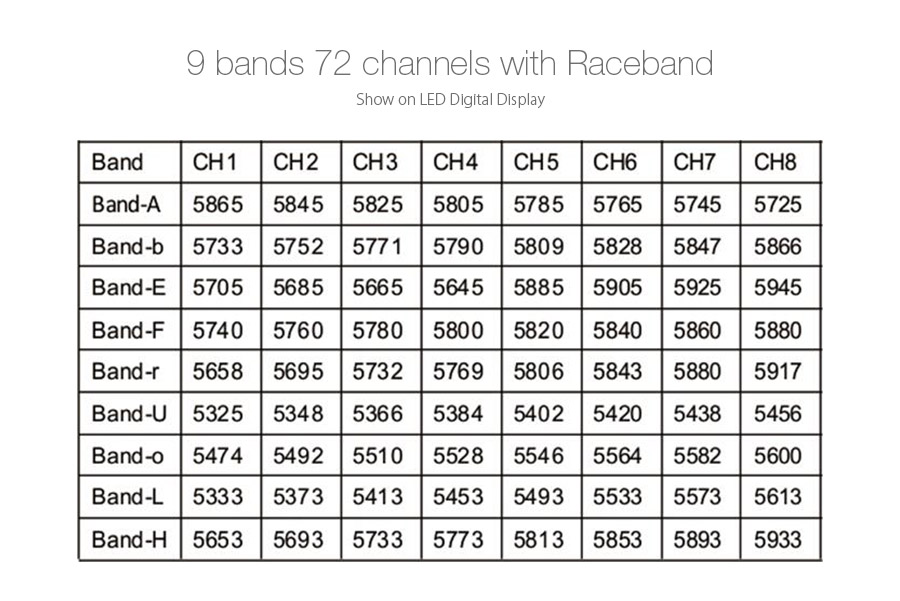

9 bands 72 channels with Raceband

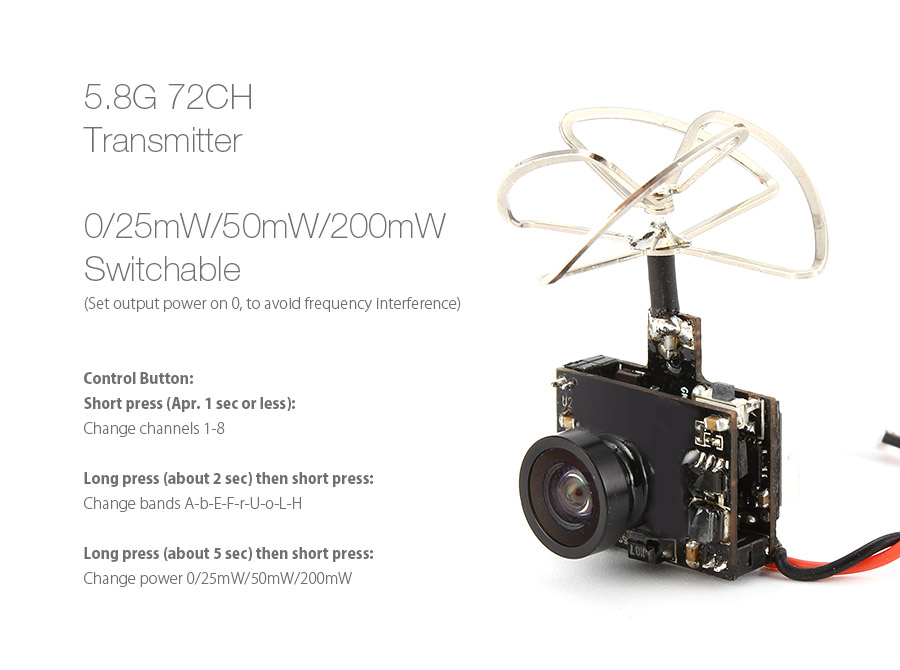

Output power 25mW 50mW 200mW Switchable

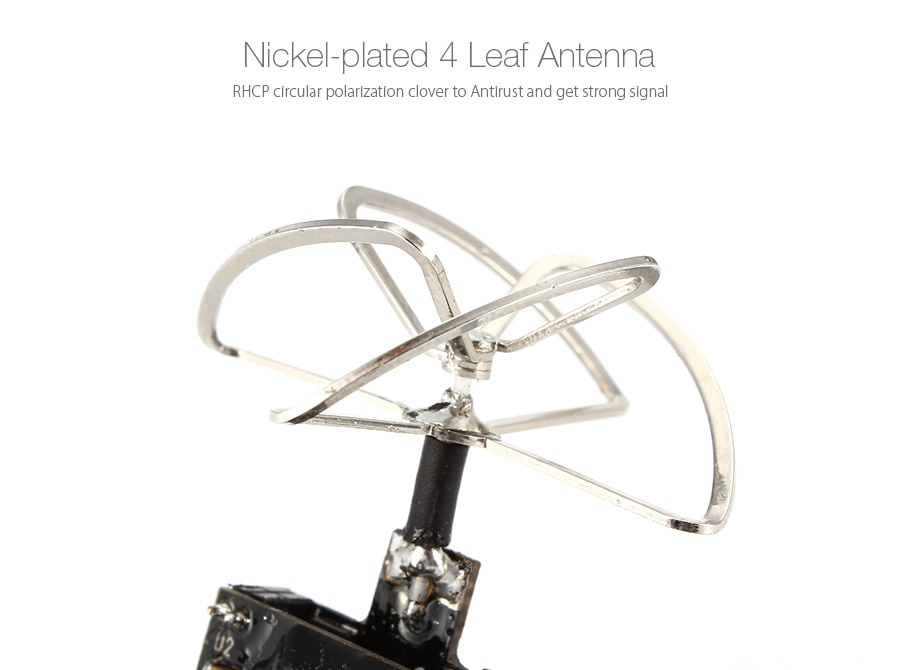

Nickel-plated 4 Leaf Antenna , RHCP circular polarization clover to Antirust and get strong signal
Package Included:
1 X TX03 AIO FPV Camera
1 X Cable
1 X User Manual
