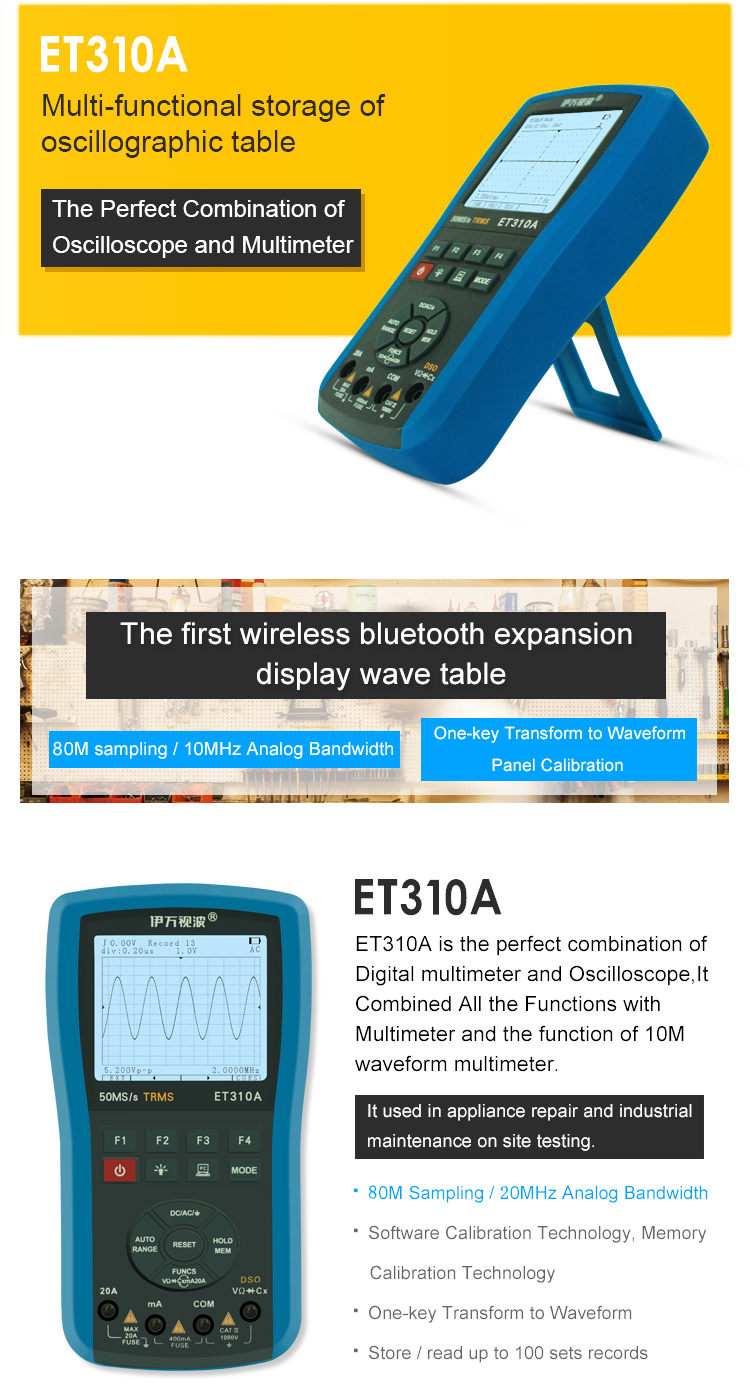

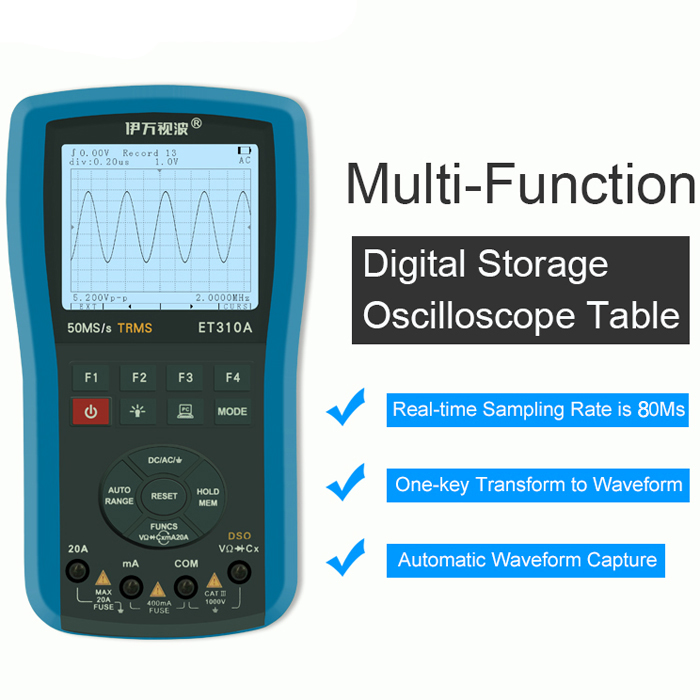

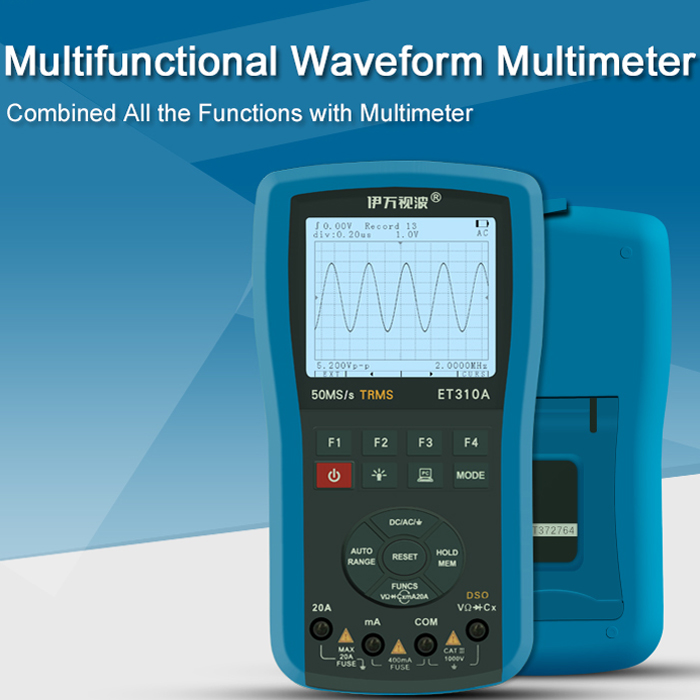

EONE ET310A 2 in 1 20MHz 80Msps Digital Handheld Storage Oscilloscope ScopeMeter True RMS Multimeter Automatic Measurement
- Stock: In Stock
- Model: 1214324
$151.58
Ex Tax: $151.58
Features:
ÂÂ
ÂÂ
Combination of 4000 count auto-range true RMS DMM and multimeter.
DMM functions includes true RMS AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, dBm, diode and continuity tests.
Full auto-setup for volt/division and time/division of DSO.
Screen hold function.
Save and recall up to 100 waveform and data.
High contrast FSTN LCD with white LED backlight.
Auto power off in 5 to 60 minutes or continuous on.
Inner Li-ion polymer battery with AC adapter.
Isolated USB/RS232 interface with PC.
Specifications:
Digital Storage Oscilloscope
Specifications:
Digital Storage Oscilloscope
| Simulation bandwidth | DC~20MHz(50mV/div ~ 10V/div) | Maximum real-time sampling rate | 80Msps |
| The vertical resolution | 8 bits | Nonlinearity | ±1 bit |
| Channel number | 1 | Coupling | DC/AC/GND |
| Input impedance | about 10MΩ | indexing | Vertical ±4.8, horizontal 12.8 |
| Vertical sensitivity range | 50mV/div ~ 200V/div | When range | 0.20μs/div ~ 20s/div |
| Vertical amplitude precision | ±(5%+ 0.1div) | When the yankees accuracy | ±(0.01% + 0.1div) |
| Automatic zero reference | In DC/dB measurement | Scanning mode | Auto/normal/single |
| Trigger level | ± 12 div (At each step, 0.1div) | Trigger slope | Rising along/down along |
| Trigger position adjustment | ± 6 div (At each step, 0.1div) | Automatic Settings | When the vertical amplitude and automatic Settings |
| The cursor measurement function | dV, dt, 1/dt (Frequency) | Automatic measurement function | Vp-p, Vavg, RMS, dBm |
| Automatic measurement accuracy | ±(5%+ 0.1div) | Record length | 12.8div |
20MHz refers to simulate bandwidth to 3db voltage when the attenuation of bandwidth, when the input signal interference, change with ADP08 and special high frequency shield.
1-2-5 for vertical attenuation switch range.

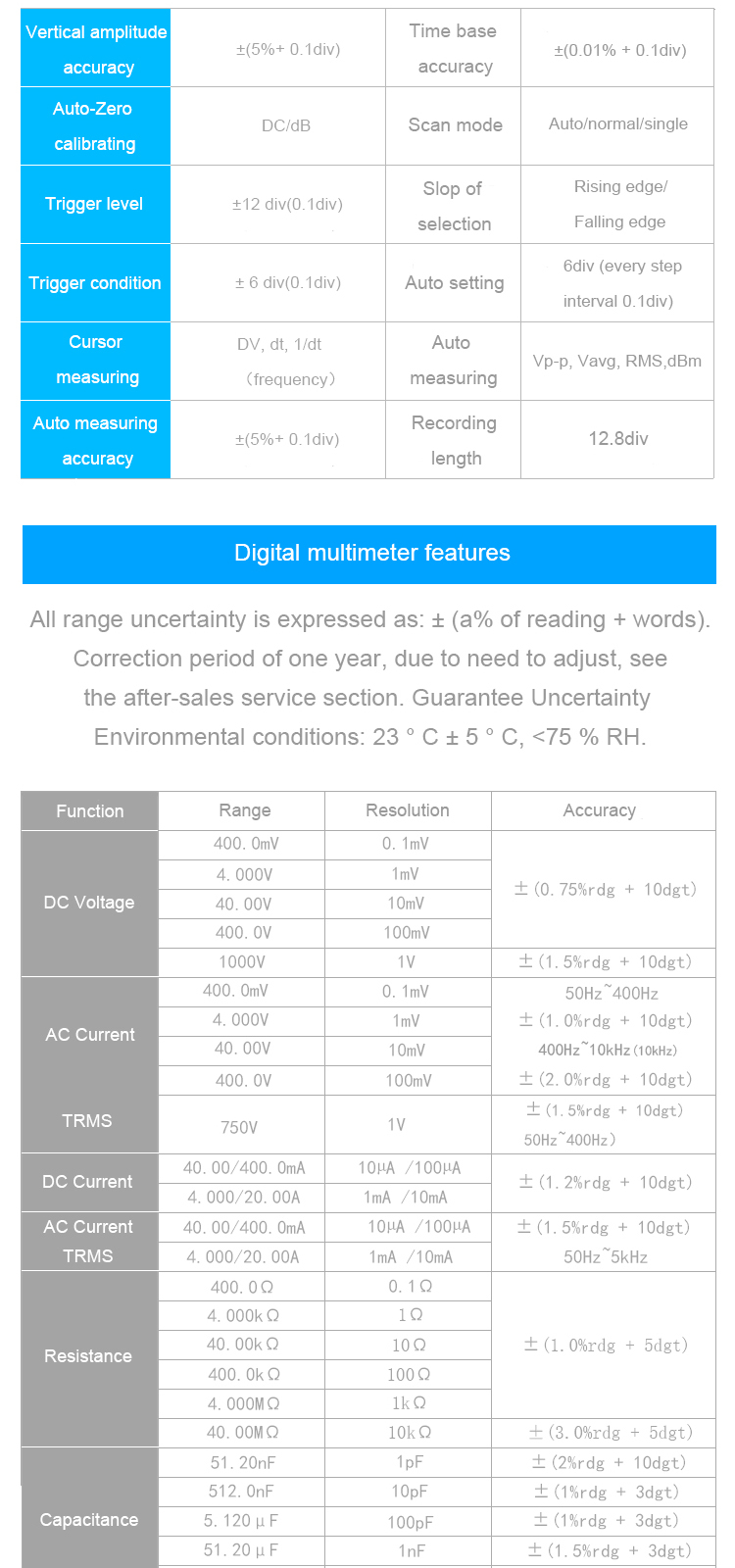

Digital Multimeter
Digital Multimeter
| Function | Range | Resolution of | Uncertainty |
| DC voltage | 400.0mV | 0.1mV | ±(0.8%rdg + 10dgt) |
| 4.000V | 1mV | ±(0.8%rdg + 10dgt) | |
| 40.00V | 10mV | ||
| 400.0V | 100mV | ||
| 1000V | 1V | ±(1.5%rdg + 10dgt) | |
|
AC voltage True RMS  |
400.0mV | 0.1mV |
50Hz~400Hz ±(1.2%rdg + 10dgt) 400Hz~2kHz (10kHz These will not be examined) ±(2.0%rdg + 10dgt) |
| 4.000V | 1mV | ||
| 40.00V | 10mV | ||
| 400.0V | 100mV | ||
| 750V | 1V | ±(1.5%rdg + 10dgt) (50Hz~400Hz) | |
| DC current | 40.00/400.0mA | 10µA /100µA | ±(1.2%rdg + 10dgt) |
| 4.000/20.00A | 1mA /10mA | ||
|
AC current True RMS |
40.00/400.0mA | 10µA /100µA |
±(1.5%rdg + 10dgt) 50Hz~2kHz (5kHz These will not be examined |
| 4.000/20.00A | 1mA /10mA | ||
| Resistance | 400.0Ω | 0.1 Ω | ±(1.0%rdg + 5dgt) |
| 4.000kΩ | 1 Ω | ||
| 40.00kΩ | 10 Ω | ||
| 400.0kΩ | 100 Ω | ||
| 4.000MΩ | 1kΩ | ||
| 40.00MΩ | 10kΩ | ±(3.0%rdg + 5dgt) | |
| Capacitance | 51.20nF | 1pF | ±(2.0%rdg + 10dgt) |
| 512.0nF | 10pF | ||
| 5.120μF | 100pF | ||
| 51.20μF | 1nF | ||
| 100.0μF | 10nF | ±(5%rdg + 3dgt) | |
| Frequency | 5.12Hz ~ 10MHz | 0.1Hz ~ 10kHz | ± (1.0% rdg + 5dgt), (signal amplitude is not less than 1Vp-p, AC V or 20mA RMS, AC A) |
| Duty | 0.1~99.9% (AC 1Vp-p) | ||
| Diode test | Open circuit voltage of about 1.5 V, the maximum test current of about 1.5mA | ||
| Continuity test | Determine resistance: approximately 30Ω | ||
| Automatic range switching | Can be applied to each measurement function | ||
| Range overflow Tips | “O. L†(Over load) | ||
| Multimeter to measure the rate of | 2.5 times / second | ||
| Dynamic Data Window | Continue after the main display dynamic refresh to keep the actual measurement data | ||
| dB (-80 ~ +80 dB) reference impedance | 2, 3, 8, 16, 50, 75, 93, 110, 125, 135, 150, 300, 600, 900, 1000, 1200 Ω | ||
| Fuse Size | Φ5×20,0.5A/250V   Φ10×38,20A/500V | ||

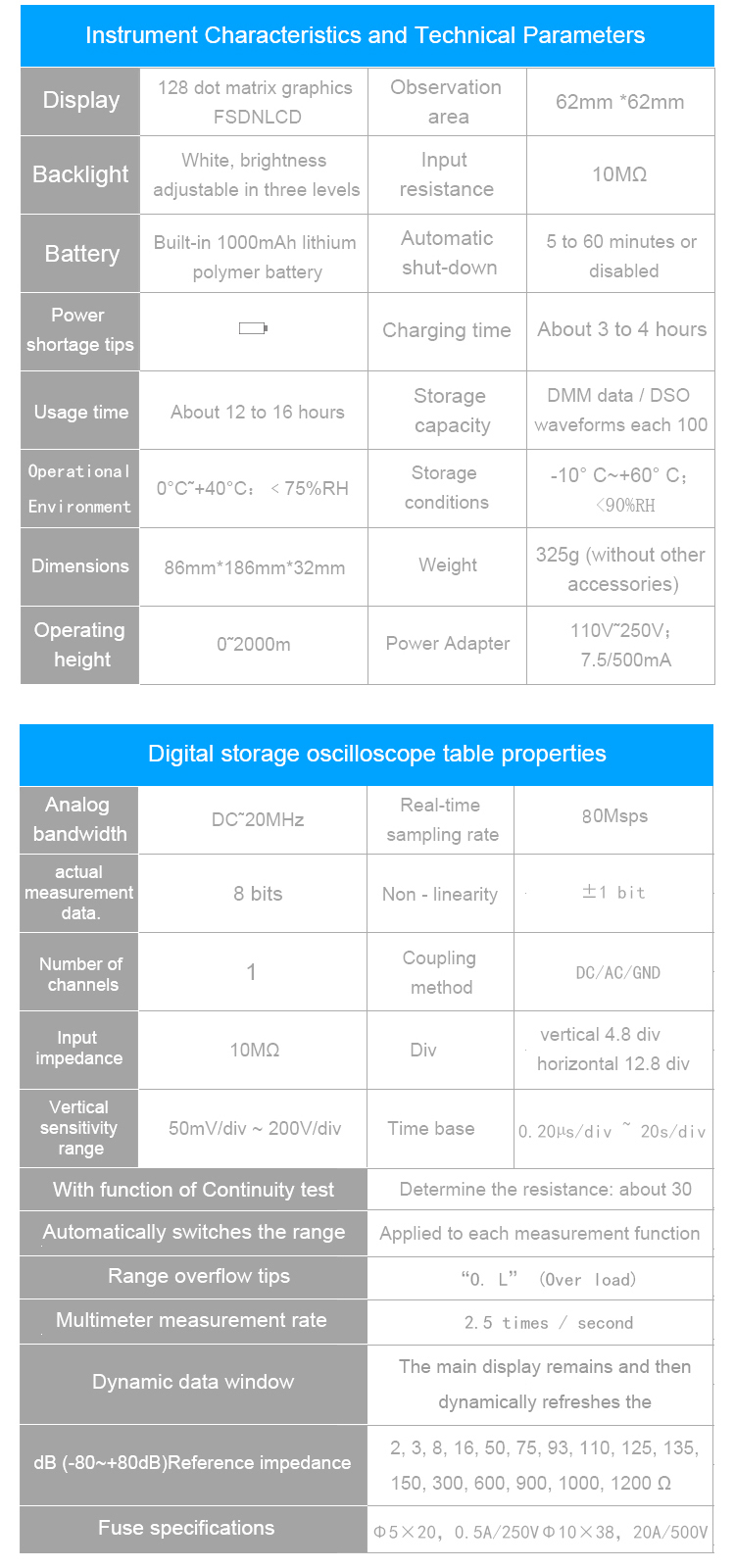

General Information:
| Display | 128 x 128 pixel graphic LCD | Viewing Area | 71.7mm x 71.7mm |
| Back Light | White LED, 3 levels of brightness | Input Impedance | 10MΩ |
| Power | Inner Polymer Li-Ion Battery or AC adapter | Auto Power Off | 5~60minutes adjustable with disable feature |
| Indication of low power |  | Charging time | About 3hrs |
| Battery life | 12~16hrs approx. (vary with different models) | Memory | 100 records (both DMM data and DSO waveform)* |
| Operational conditions | 0°C to +50°C (+32°F to +122°F); < 75%RH | Storage conditions | -10°C to +60°C (-14°F to 140°F) |
| Dimensions | 86mm x 186 mm x 32mm | Weight |
325g  |

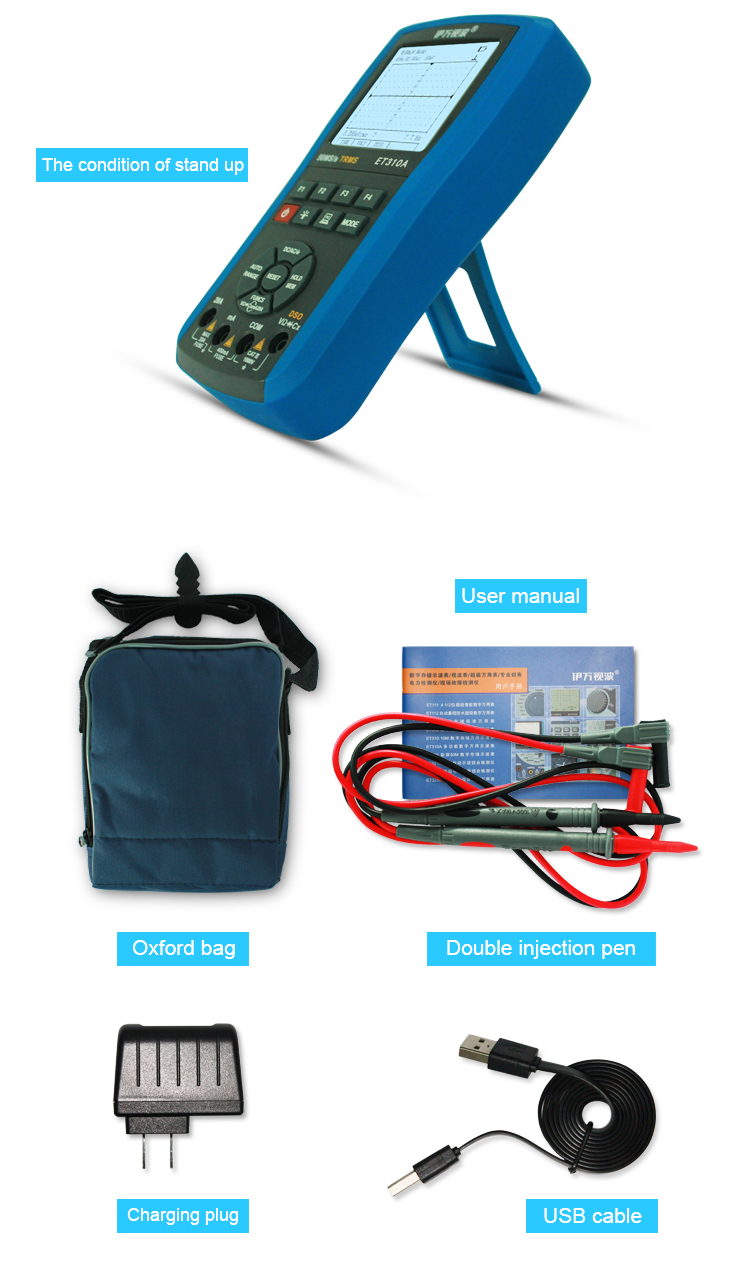

Package Included:
1 x EONE ET310A 2 in 1 20M 80Msps Digital Handheld Storage
1 x Test Probe
1 x USB Cable
1 x Charging Plug
1 x Oxford Bag
Detail Pictures:
