  • Stock: In Stock
  • Model: 1315186
$28.79
Ex Tax: $28.79








Description :

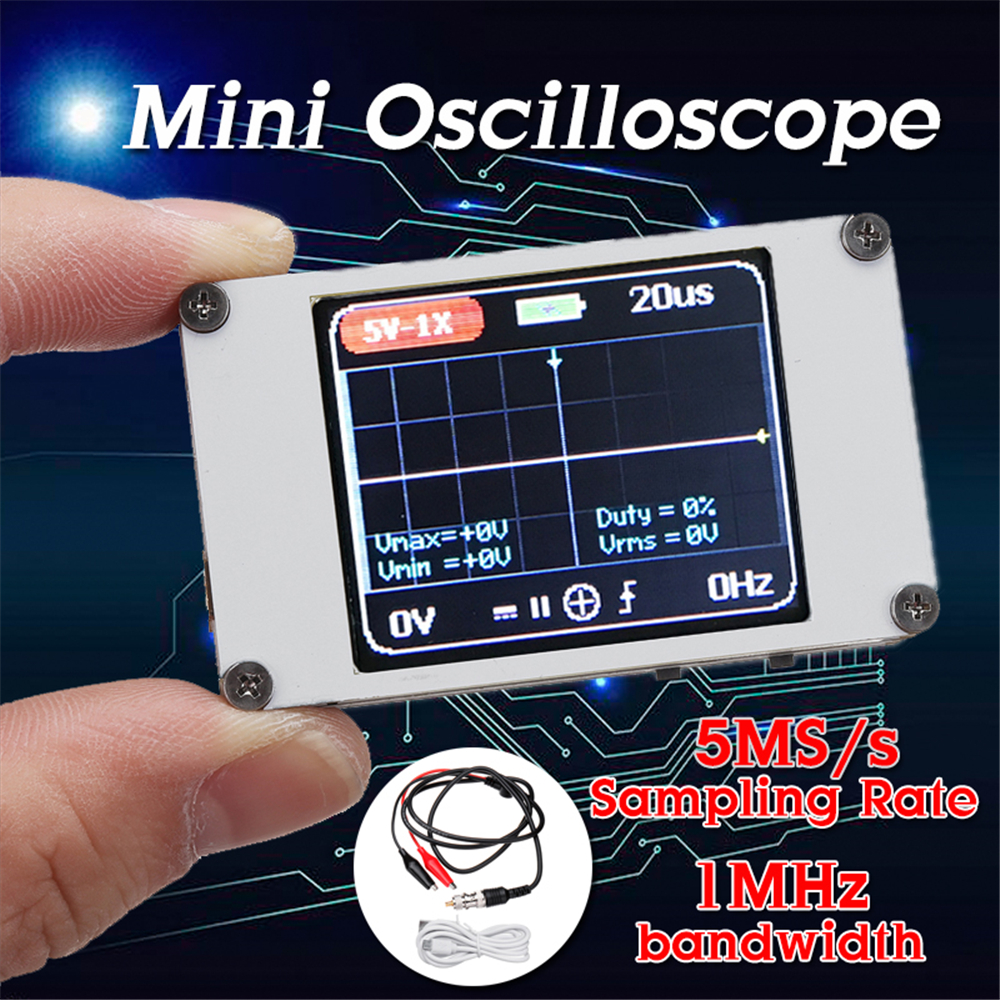

DANIU DSO188 is a super small digital oscilloscope with 5MS/s sampling rate and 1MHz bandwidth is designed for electronic enthusiasts and circuit R & D maintenance personnel. 1MHz bandwidth can be used for an amplifier, oscillator, automatic control system, DC/DC, inverter, switching power supply and so on. Whether DIY or scientific research education, vehicle maintenance, household appliances maintenance and so on are all good choices.

Features :

Memory compression technology, waveform refresh screen does not flicker.
1.8-inch color display screen.
1MHz analog bandwidth and 5MS/s sampling rate.
High measurement voltage range, 1X can measure 0-40V, 10X can measure 40-800V.

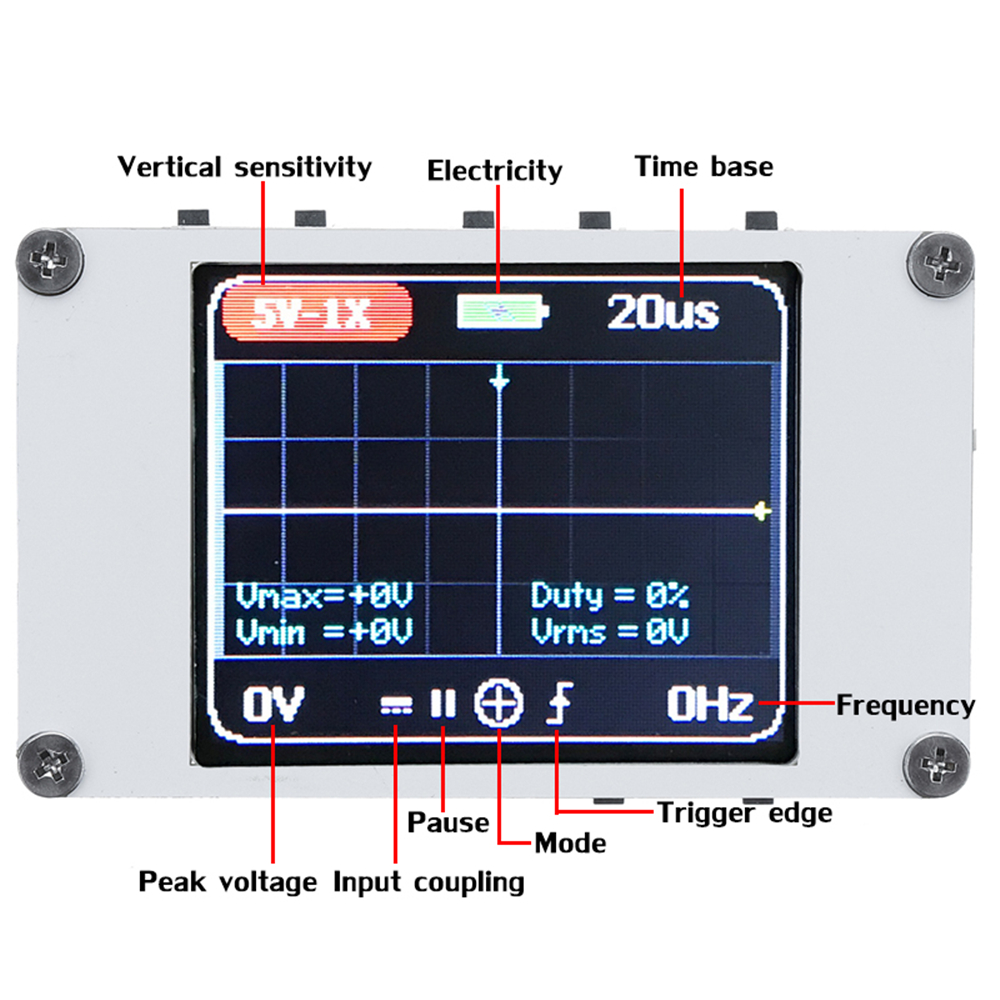

Frequency can be displayed, Vmax, Vmin, Duty, Vrms, Vpp.
At any time, the waveform display (pause function) is frozen.
Battery/USB power supply, built-in 250mAh battery and intelligent charge management.
Ultra small volume, easy to carry.

Specification :

1. Analog band width: 1MHz
2. Maximum real time sampling rate: 5MS/s
3. Vertical sensitivity: 50 mV/div-200 V/div
4. Horizontal time base range: 100mS/div-2uS/div
5. Maximum input voltage: 40 V (1X probe), 800 V (10X probe)
6. Storage depth: 40KB
7. Input resistance: 1M
8. ADC precision: 12bits
9. Coupling mode: AC/DC
10. Trigger mode: Auto
11. Trigger edge: Ascending/descending edge
12. External trigger voltage 0-40V
13. Display: TFT color display
14. Power supply: 250 mAh lithium battery

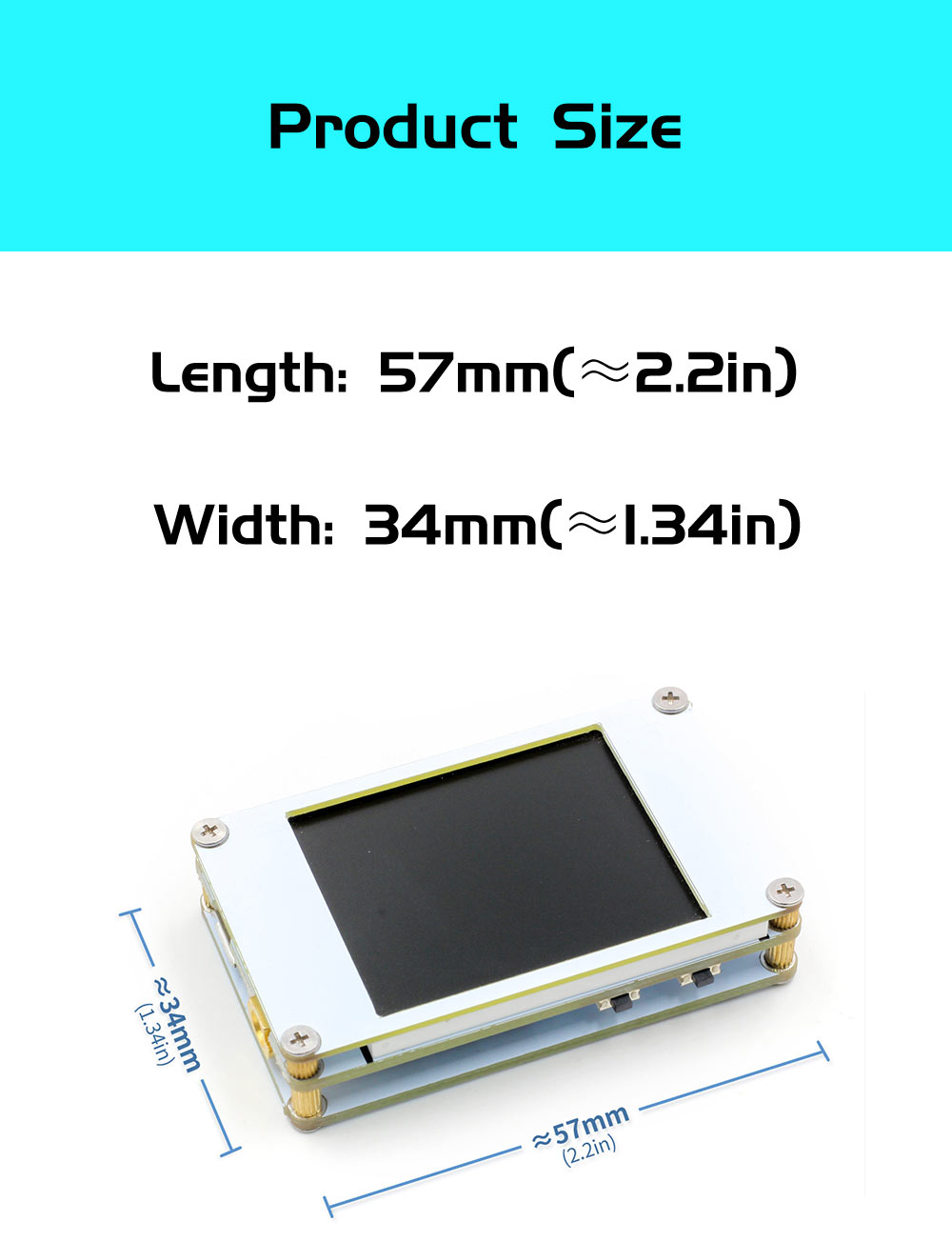

15. Size: 57 x 34 x 11 mm
16. Weight: 40 grams

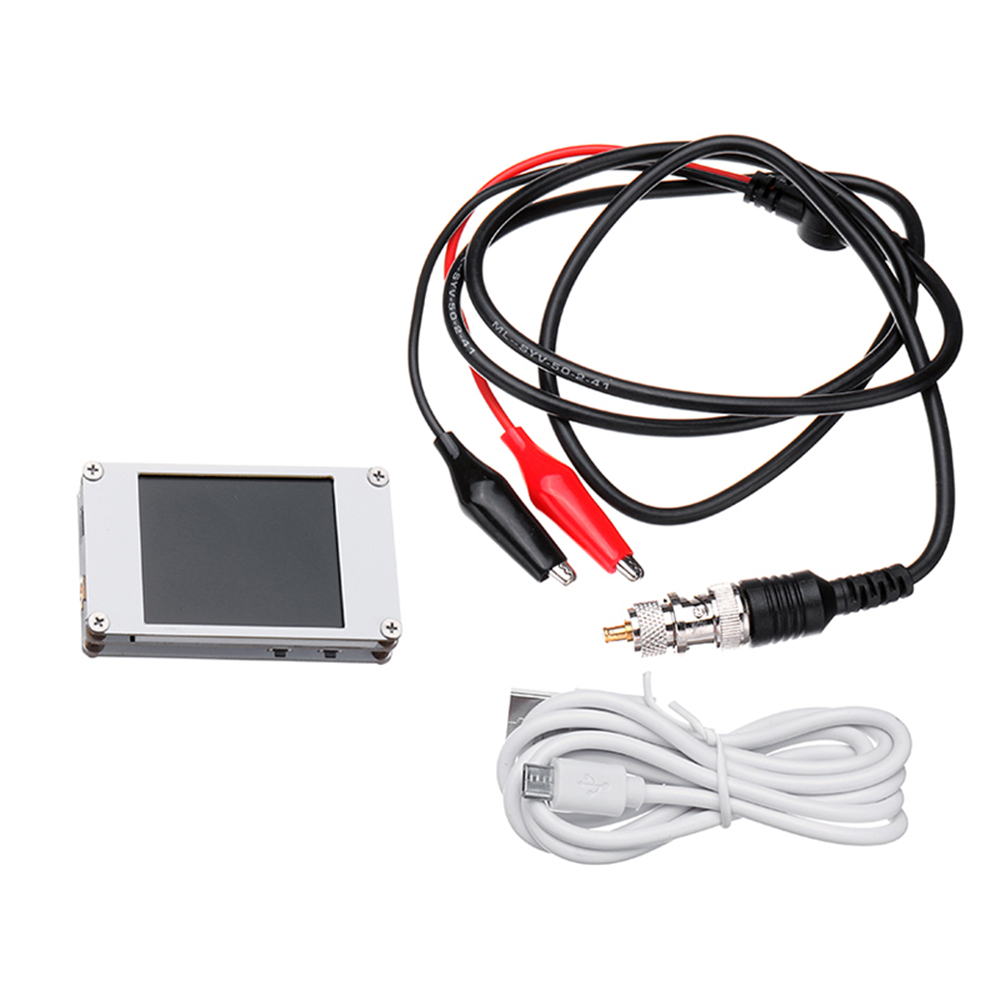

Package includeds :

1 x DANIU DSO188 oscilloscope host
1 x Oscilloscope probe
1 x BNC turn MCX switch head
1 x Micro USB data line
1 x English User manual
