- Stock: In Stock
- Model: 1124567
Remote operation:
Long press the lock button for 5 seconds, start the vehicle remote control, but also remote flameout
Introduction to Startup Keys
Material: Use conductive adhesive
Maximum outside diameter: 40mm
Button Thickness:
Internal lighting: blue, red and yellow
4 conductive contacts, do not use the current old mechanical key switch, the use of the effective number
of 30 million times, without replacement
Installation method 1: directly remove the lock and use the buckle of the installation
Installation method 2: Remove the button behind the iron, using the paste installation method
Remote start function:
1. To ACC, ON file first power supply, and then start the car
2. Long press 5 seconds to start the remote control button
3. Remote start detection handbrake, do not pull the hand brake remote start is invalid,
4. 10 minutes after the start of remote control without operation is automatically turn off, the brake on the
car to stop the flame function is canceled
Sensing mode switching function:
Method:
1. Open the ACC bar first
2. At the same time press the remote control unlock key and lock key 1 seconds after release
3. Horn sound that open the induction function
Emergency car function
When the induction remote control is lost or damaged, then want to use the car according to the
following methods: Use the spare key to open the door, find the host open and long press
The host code on the switch for 5 seconds, then the speaker chirp 3, it means that anti-theft lock function
will be lifted, the vehicle can use
Remote start automatically locks the door function
After each remote start or close the remote start, the system will automatically lock the door to ensure vehicle safety
Specification:

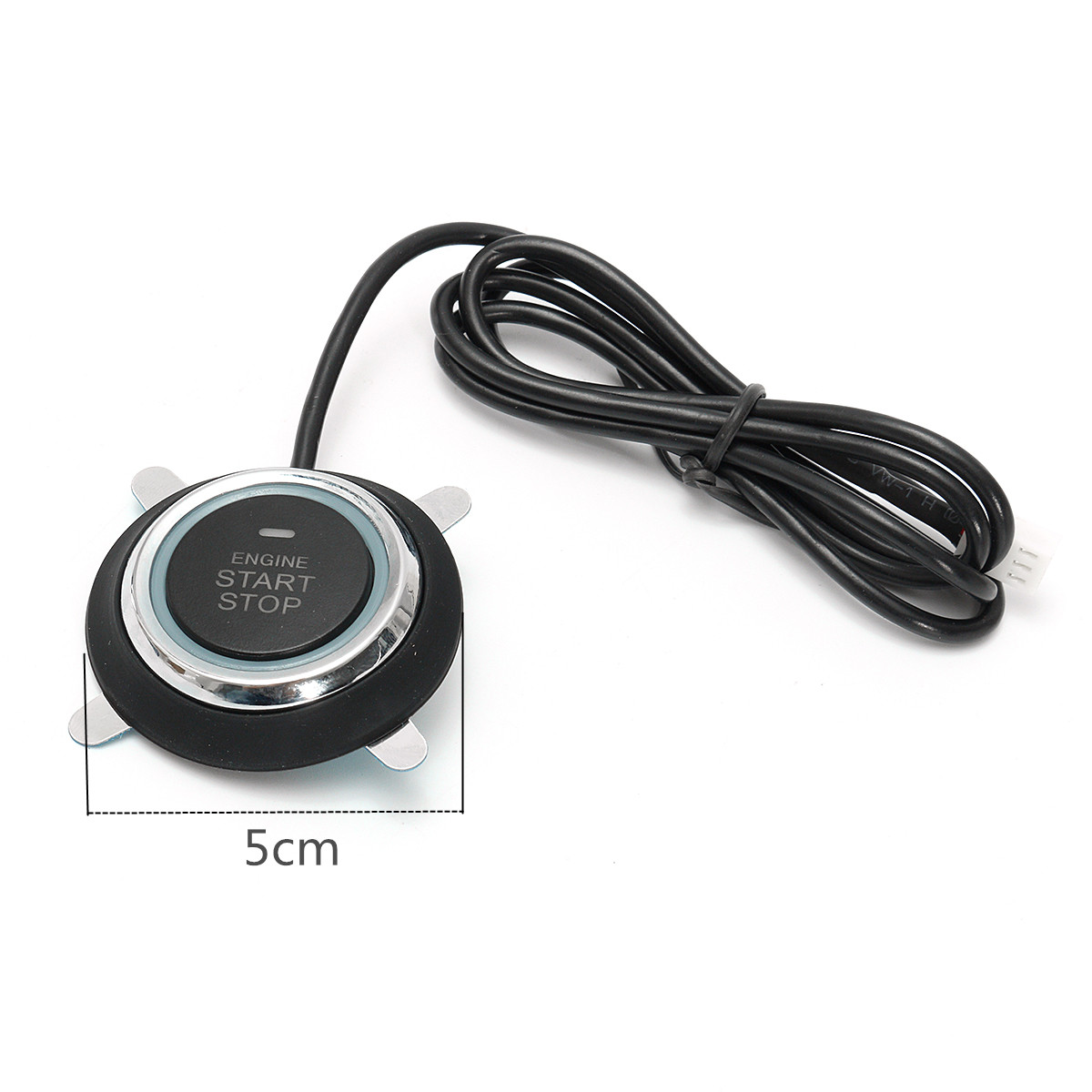

Engine start stop:5cm
Working Voltage:+12v+2V
Working Current:6mA
Remote control frequency:433MHZ
Receive frequency:433MHZ

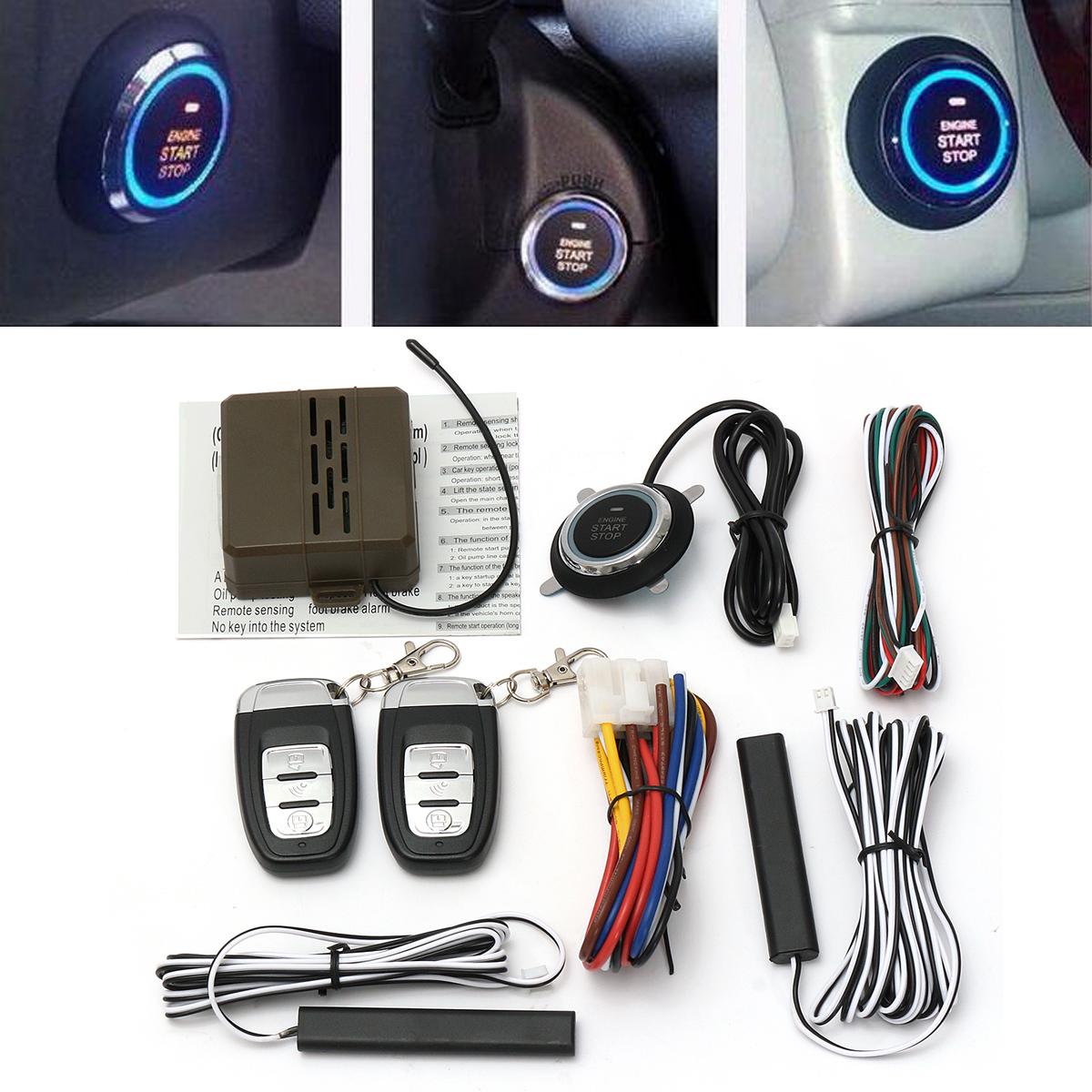

Package Included:
| 1 X Car Engine Start Button | 1 X Start Button | 1 X Poutput Line |
| 1 X 6P Output Cable | 2 X Smart Rremote Control | 2 X Antenna |
| 1 X Manual |  |  |
