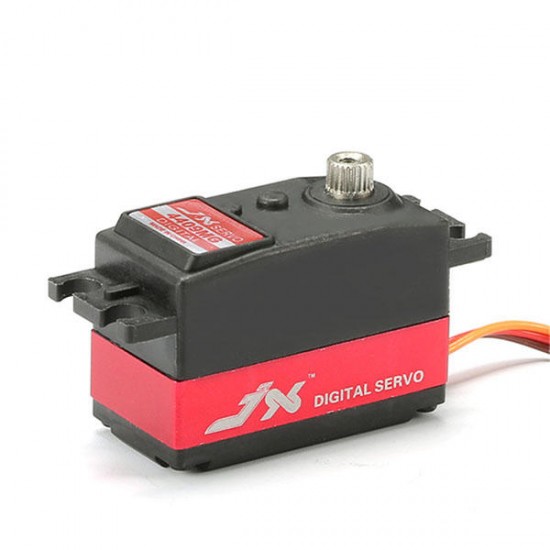

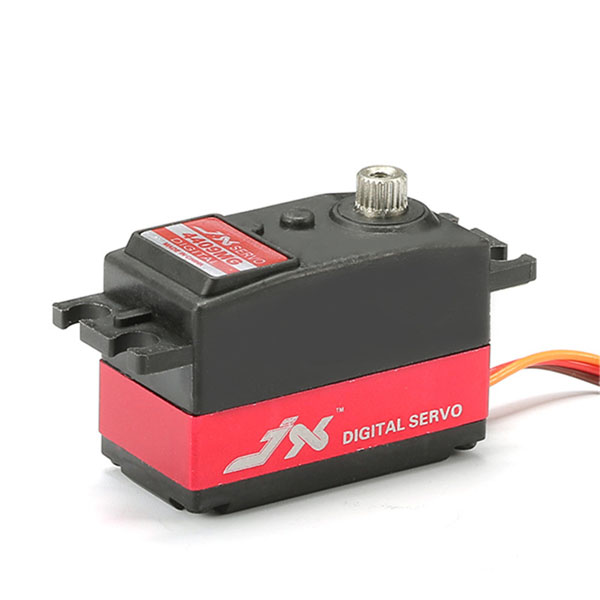

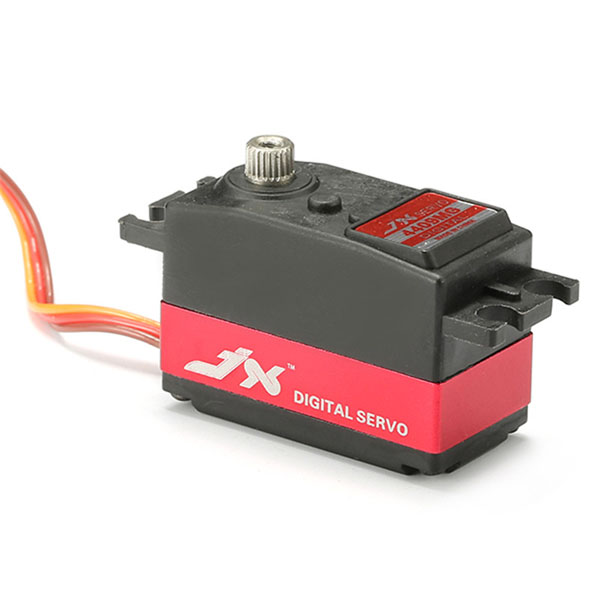

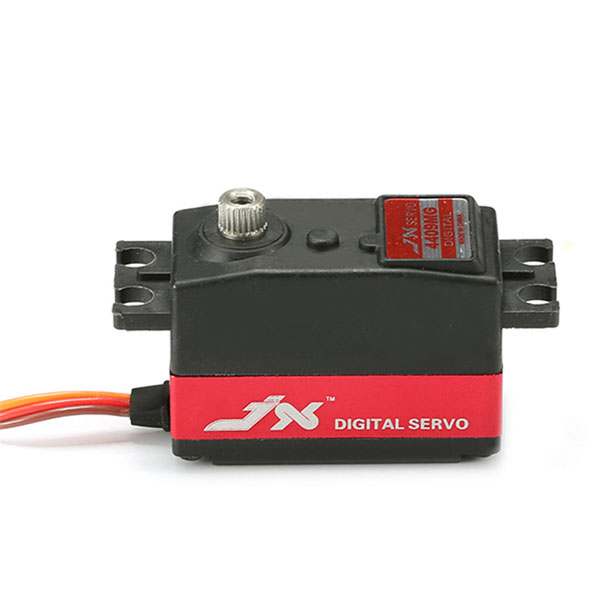

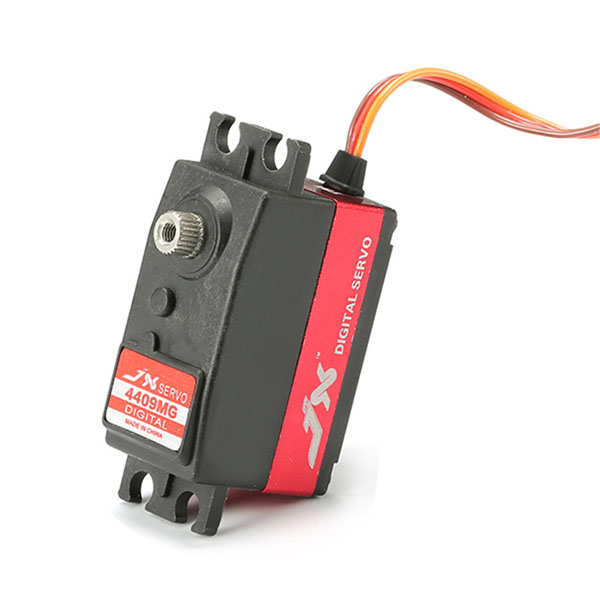

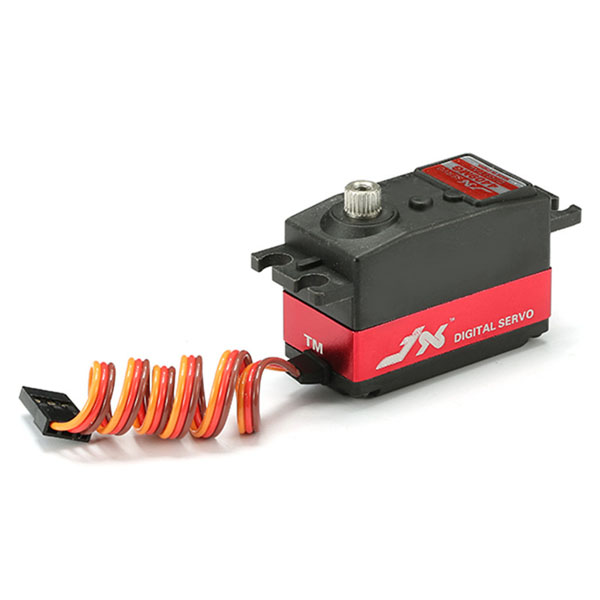

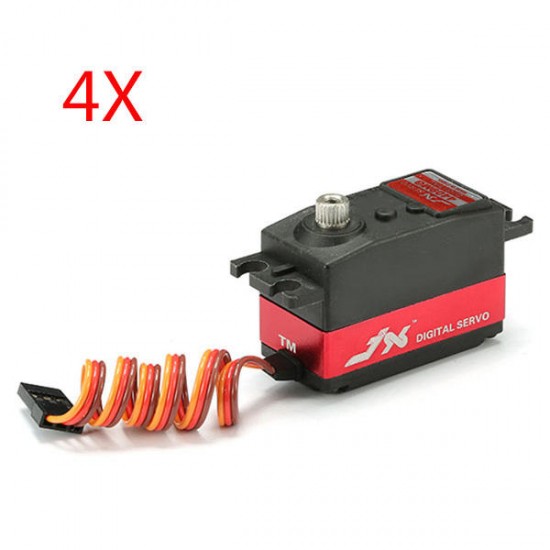

4x JX Servo PDI-4409MG 9kg Large Torque 180 Degree Digital Servo

4x JX Servo PDI-4409MG 9kg Large Torque 180 Degree Digital Servo
4x JX Servo PDI-4409MG 9kg Large Torque 180 Degree Digital Servo
4x JX Servo PDI-4409MG 9kg Large Torque 180 Degree Digital Servo
4x JX Servo PDI-4409MG 9kg Large Torque 180 Degree Digital Servo
4x JX Servo PDI-4409MG 9kg Large Torque 180 Degree Digital Servo
4x JX Servo PDI-4409MG 9kg Large Torque 180 Degree Digital Servo
4x JX Servo PDI-4409MG 9kg Large Torque 180 Degree Digital Servo
4x JX Servo PDI-4409MG 9kg Large Torque 180 Degree Digital Servo
4x JX Servo PDI-4409MG 9kg Large Torque 180 Degree Digital Servo
4x JX Servo PDI-4409MG 9kg Large Torque 180 Degree Digital Servo
4x JX Servo PDI-4409MG 9kg Large Torque 180 Degree Digital Servo
4x JX Servo PDI-4409MG 9kg Large Torque 180 Degree Digital Servo
4x JX Servo PDI-4409MG 9kg Large Torque 180 Degree Digital Servo
  • Stock: In Stock
  • Model: 1232244
$69.72
Ex Tax: $69.72







Description:

Brand: JX Servo
Item: PDI-4409MG
Max pulse width: 500-2500us
Max angle: 180°
Dead band:2μs
Working frequence:1520μs / 330hz
Motor:high quality core motor
Operating Voltage: DC4.8~6.0 V
Operating Speed: (4.8V) 0.13 sec/60°
Operating Speed: (6.0V) 0.11 sec/60°
Stall Torque: (4.8V) 7.8 kg.cm
Stall Torque: (6.0V) 9.2 kg.cm
Dimensions: 40.5X20.3X28mm
Weight: 44.5g
Bearing: 2BB
Connector Wire Length: JR 265mm
Gear: 25T

Fearture:

High-performance standard digital servo
High-precision metal gear
High-quality brushed motor
Dual ball bearing

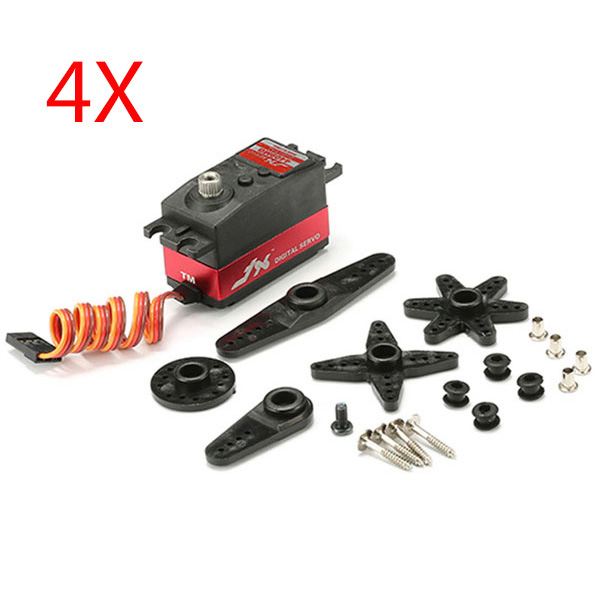

Package included:

4x JX Servo PDI-4409MG Servo
