- Stock: In Stock
- Model: 1141773
Description:

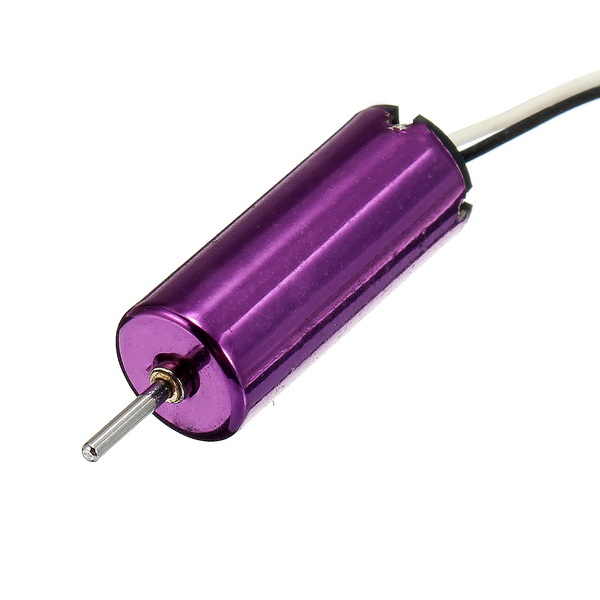

Motor Diameter: 6.0mm
Motor Length: 15mm
Shaft Diameter: 0.05-0.3mm
Cable Length: 70mm
Weight: about: 1.8g/1pcs

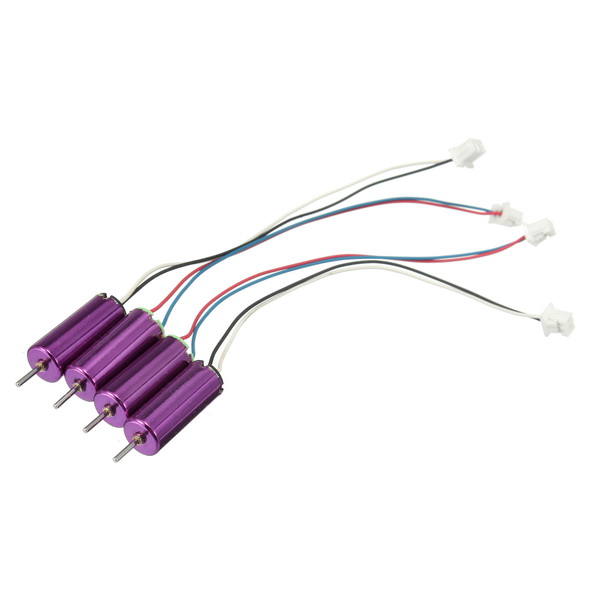

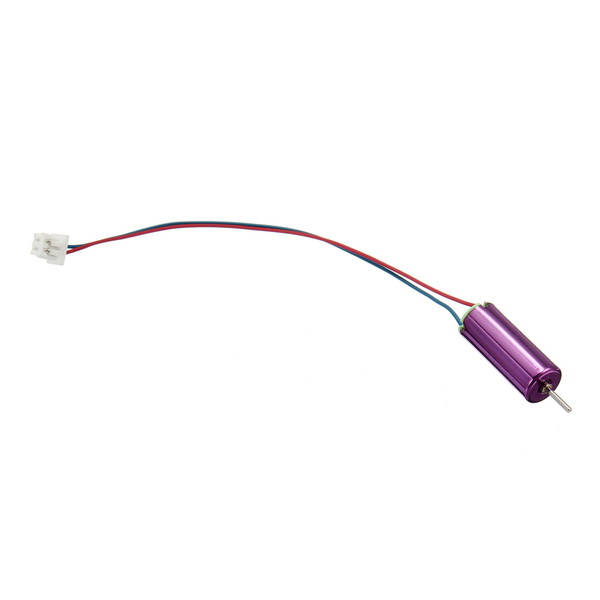

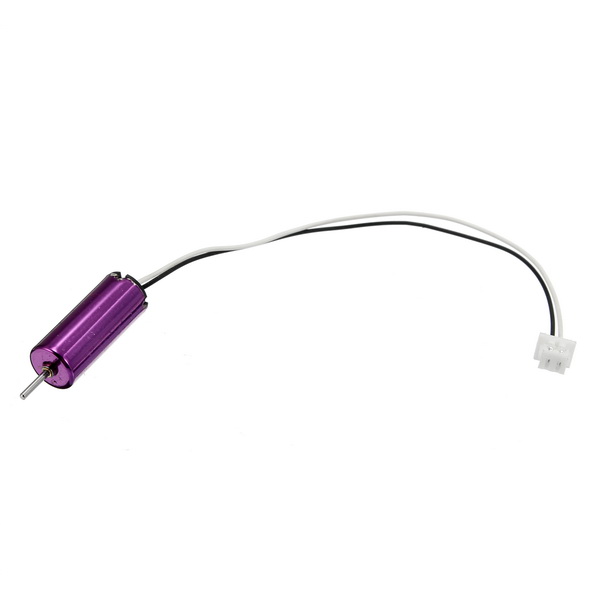

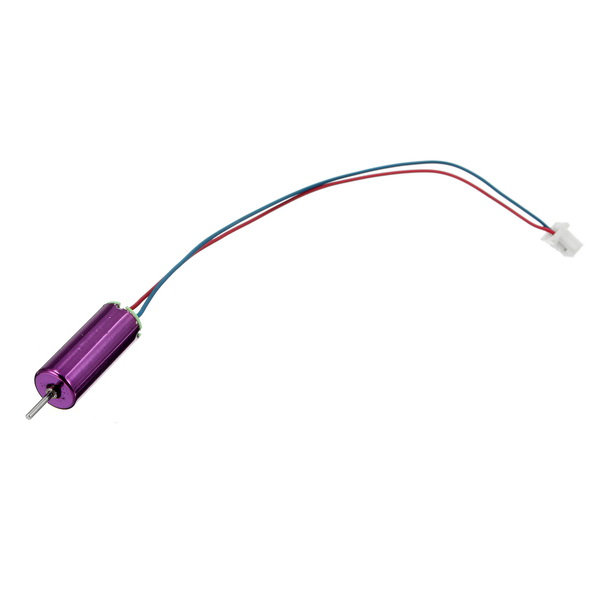

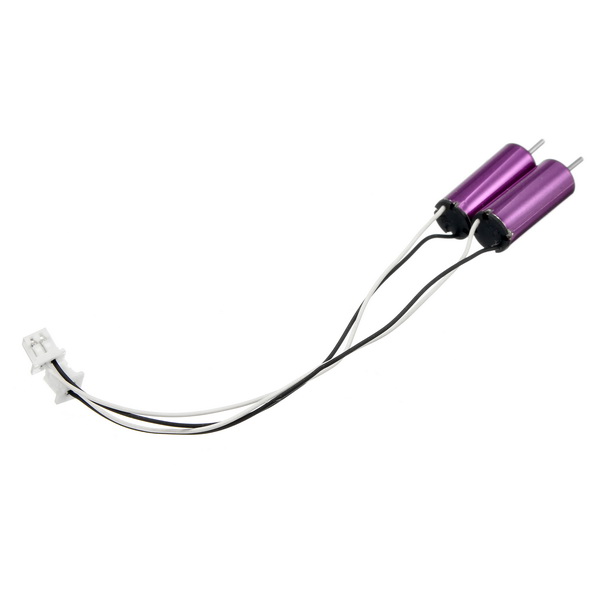

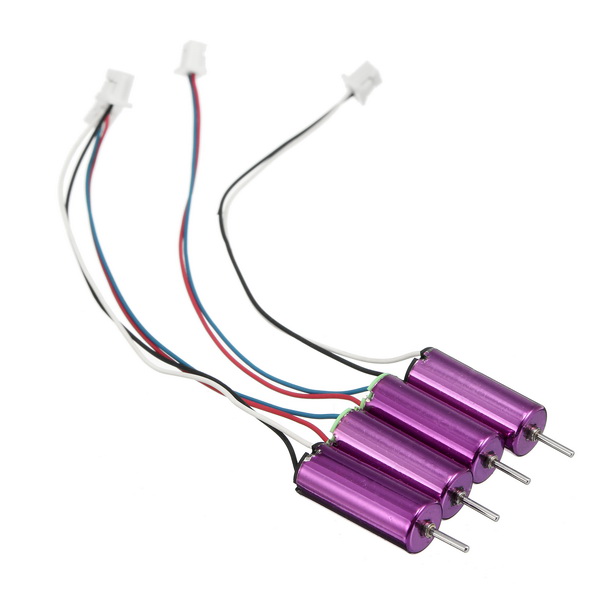

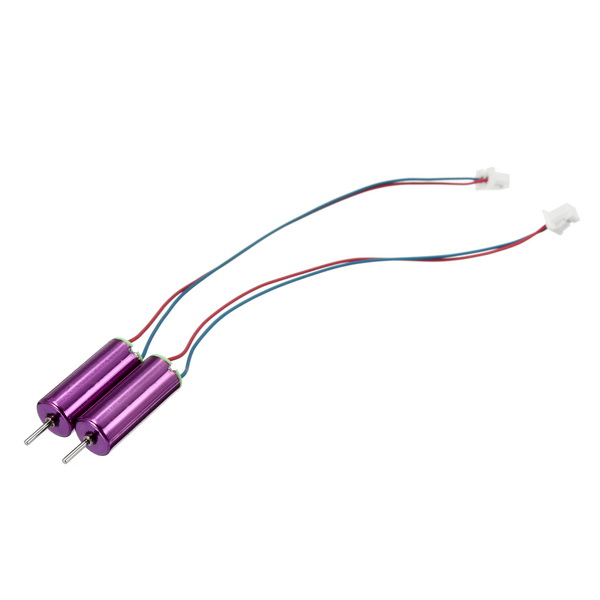

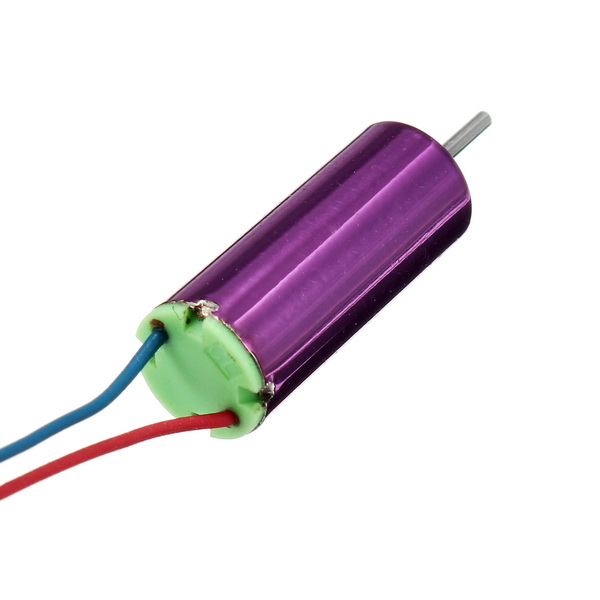

Option: Clockwise Motor(With Red Blue Wire), Anti-clockwise Motor(With Black White Wire)

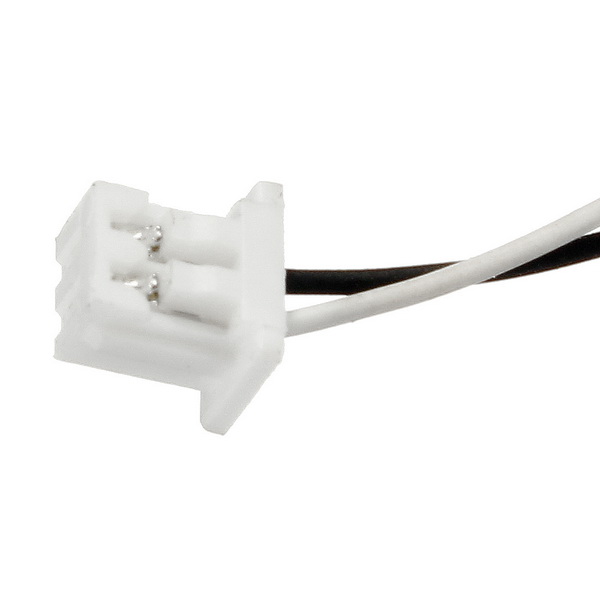

Option: With 1.25mm JST Plug
Color: Purple
Quantity: 4pcs
1.Operating condition
| Rated voltage | 3.4V DC |
| Direction of rotation | CW and CCW |
| Operating voltage range | DC2.0--4.5V DC |
| perating temperature range | -10-50°C |
| Motor position | all position |
2.Mearsuring condition
| Motor position | horizontal or vertical |
| Power supply | regulated DC power supply assuring unquestionable measuring |
| regulated DC power supply assuring unquestionable measuring |
10-30°C 30-95% If the judgment is questionable,Measurent is to be made based on JIS Standard Testing Condition(20+2°C,65+5% ) |
| Direction of rotation | viewed from output shaft side |
3.Electrical characteristics
| Items | Specification | Standard value |
| No Load speed | 67000rpm±15% | 67000 rpm |
| No Load current | 200mA max | 180mA |
| Starting voltage | 0.8V max | 0.5V DC |
| Stall current | 240mA±5% | 240mA |
| Terminal resistance | 0.9Ω ±5% | 0.9Ω |
| Insulation resistance | 10MΩ min |
AT 250V DC between motor terminal and case |
ÂÂ
Cautions:
1) Please use the motor in this technology index range for the performance of the motor is affected by environmental temperature seriously.
2) It is not allowed to operate in the high temperature with high humidity, and not allowed to contact with corrosive liquid and corrosive gas,should not to be stored and without running Continuously for more than six months.
3) Do not lock the motor shaft while the electric is on. The motor will be burnt out after the motor shaft was locked for more then 1 second.
4) Do not hit the motor directly.
Package included:

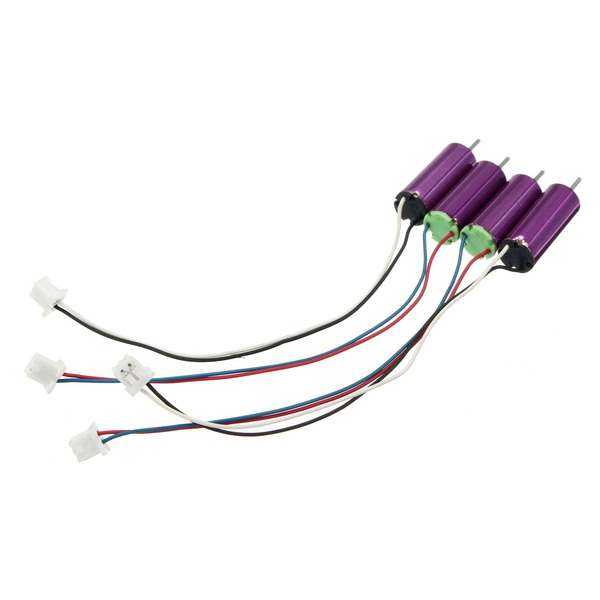

4 x motor
