- Stock: In Stock
- Model: 1358262
Input power: DC 12V
RF frequency: 433MHZ
Receive sensitivity: -105dbm
Transmitting distance: >100m (pen space)
Decoding mode: MCU software decoding
Support remote type: Learning code
Dimension of PCB: 68 x 48 x 18mm

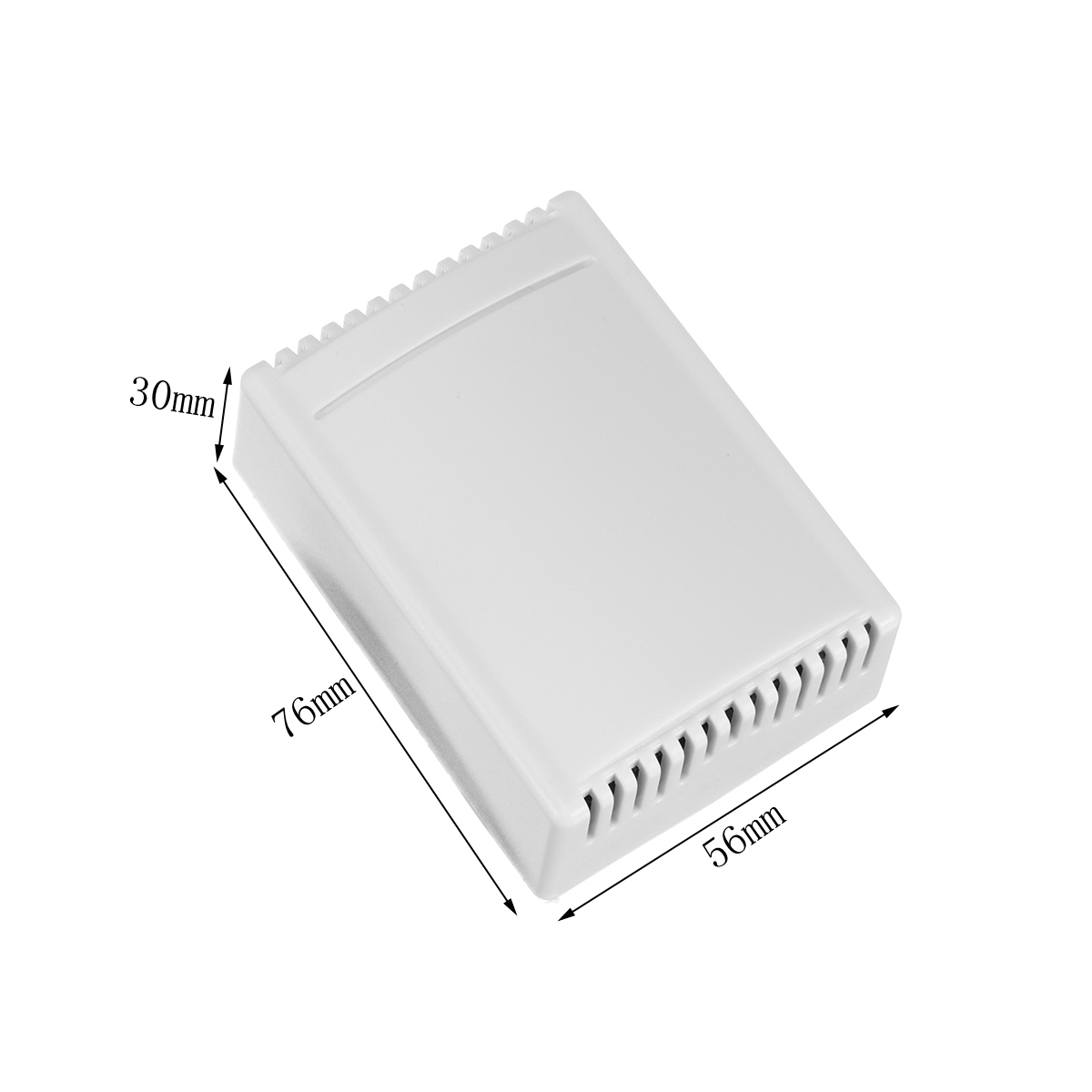

Dimension of Shell: 76 x 56 x 30mm

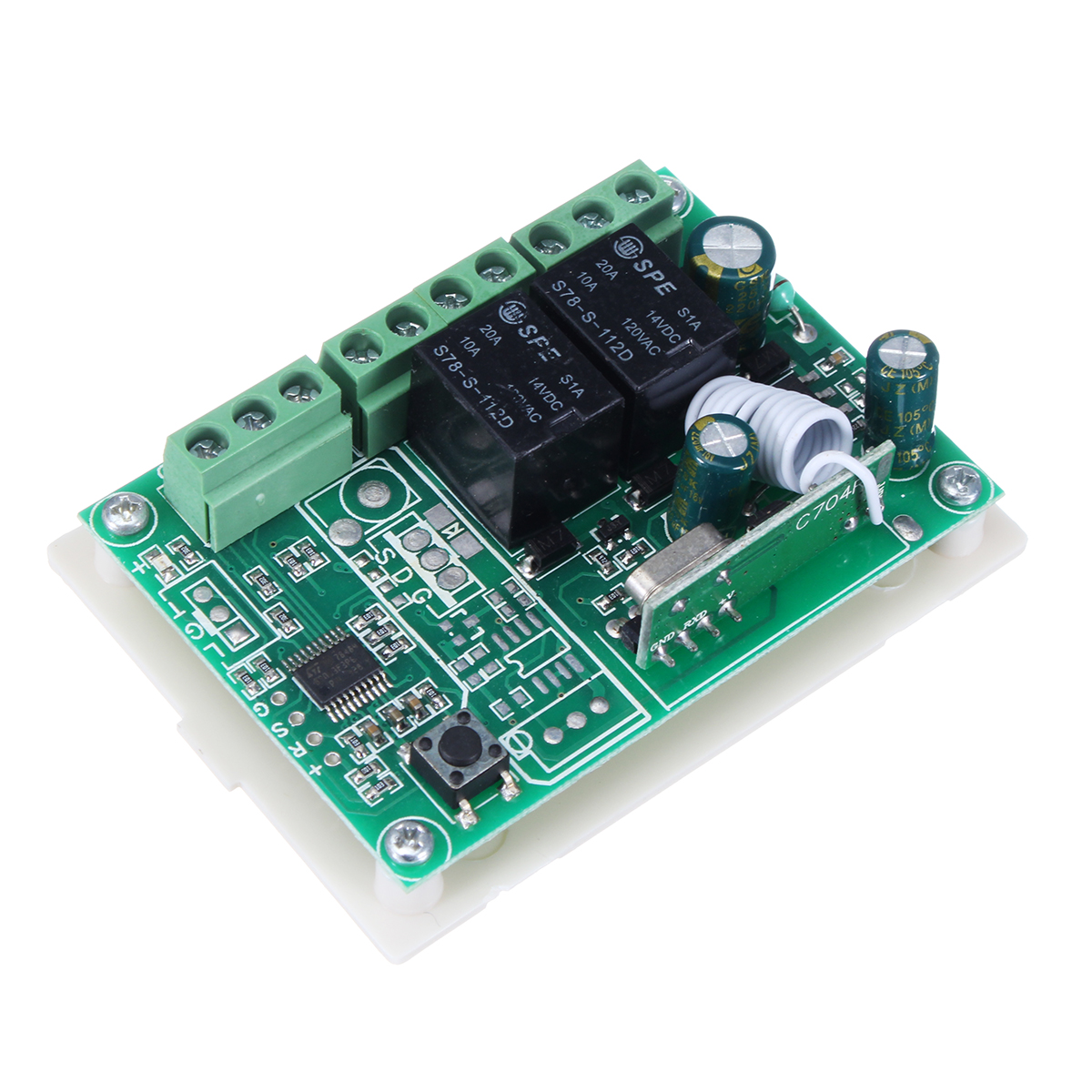

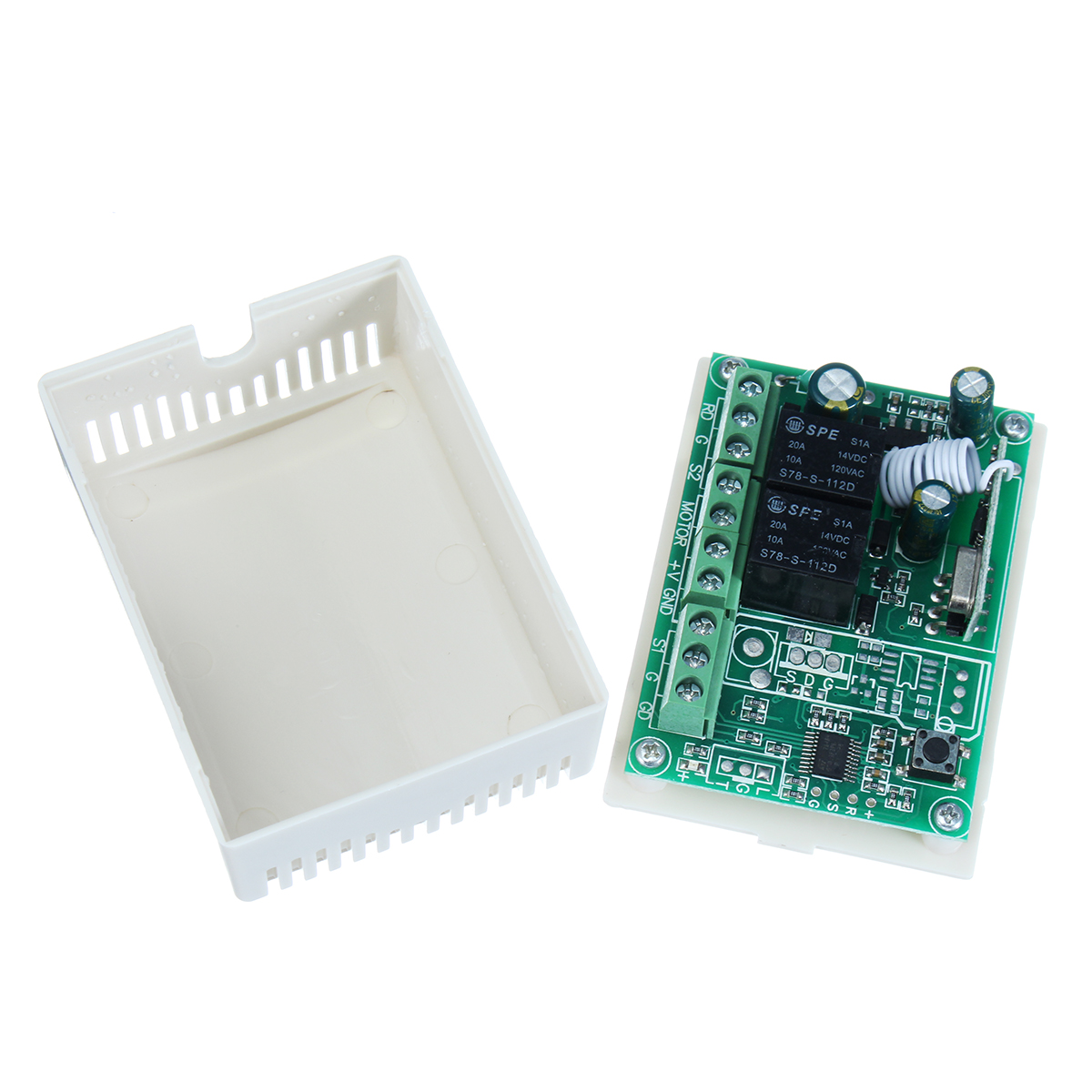

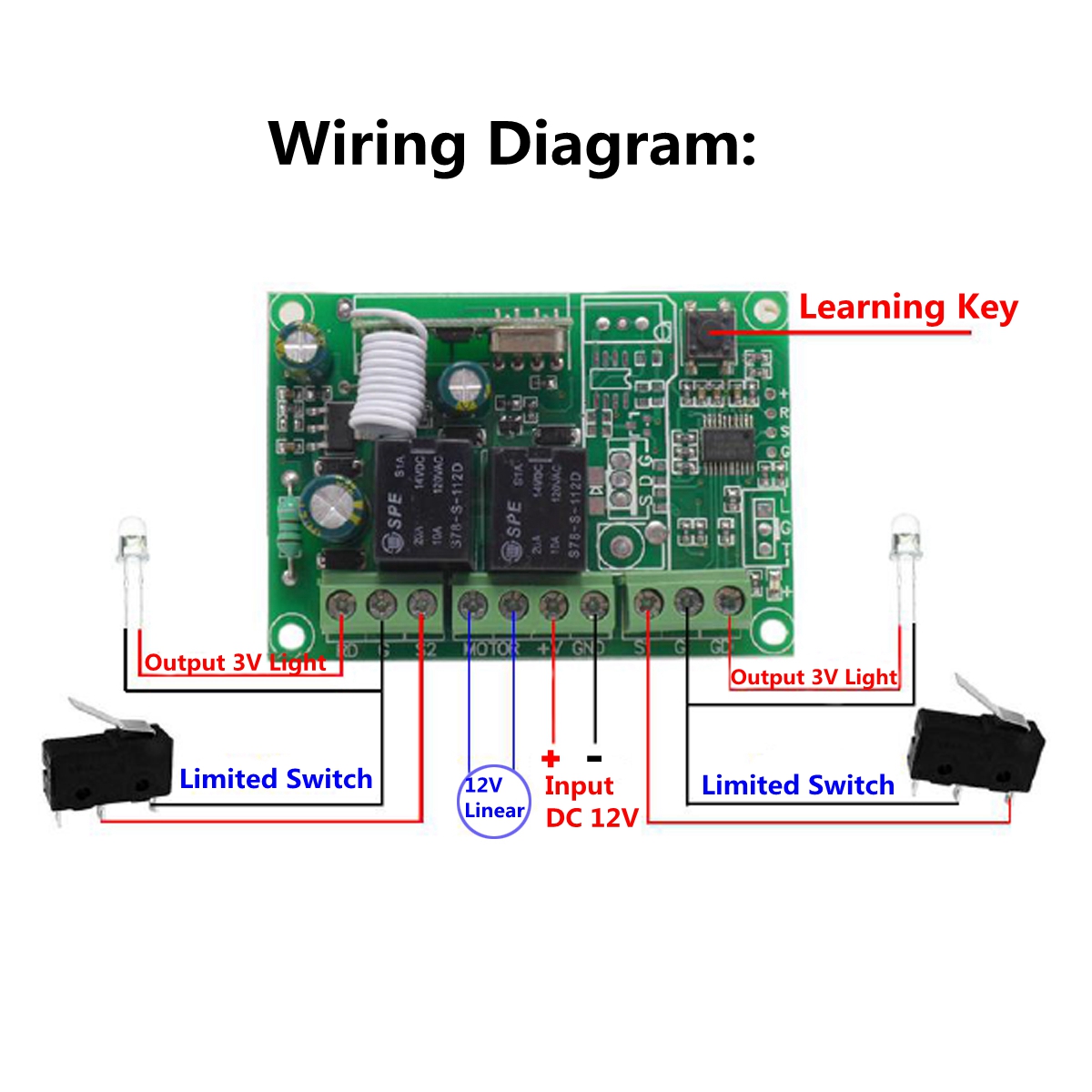

Wiring Diagram:
+V: 12V + input
GND: 12V - input
Motor: 12V DC Linear output
S1/S2: Limit switch output
G: Limit switch output
GD: Limit LED output
Learning code:
1. Push the learning key on the receiver once time, the LED will be on.
2. Push the remote button, LED indicator on the receiver board will flash for 3 times
3. After that, the learning code is matched successfully
Clearing code:
1. Press the learning button on the receivers until the led Light stop flashing, the codes will be cleaned.
2. After clearning the code, all the remote control cannot work any more.

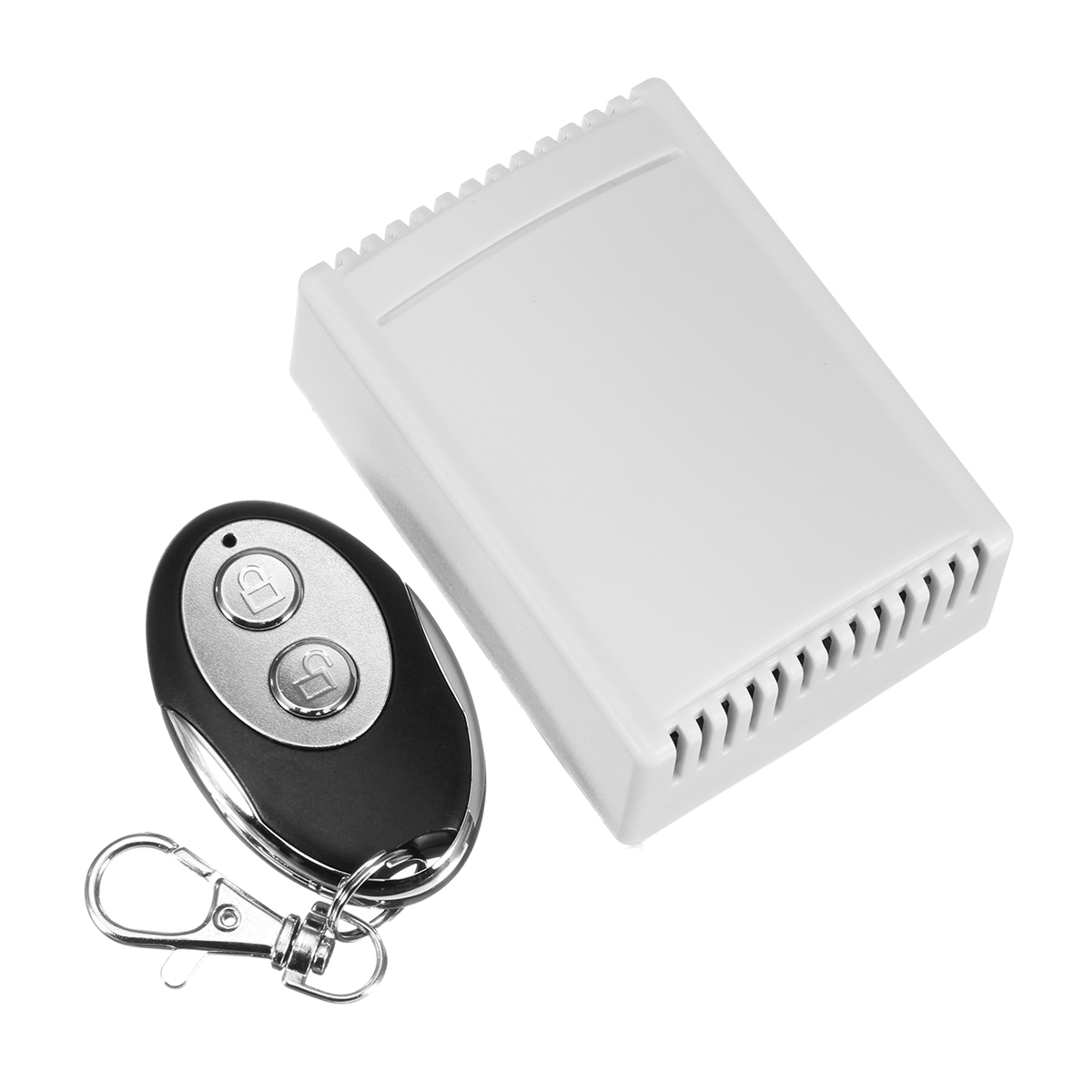

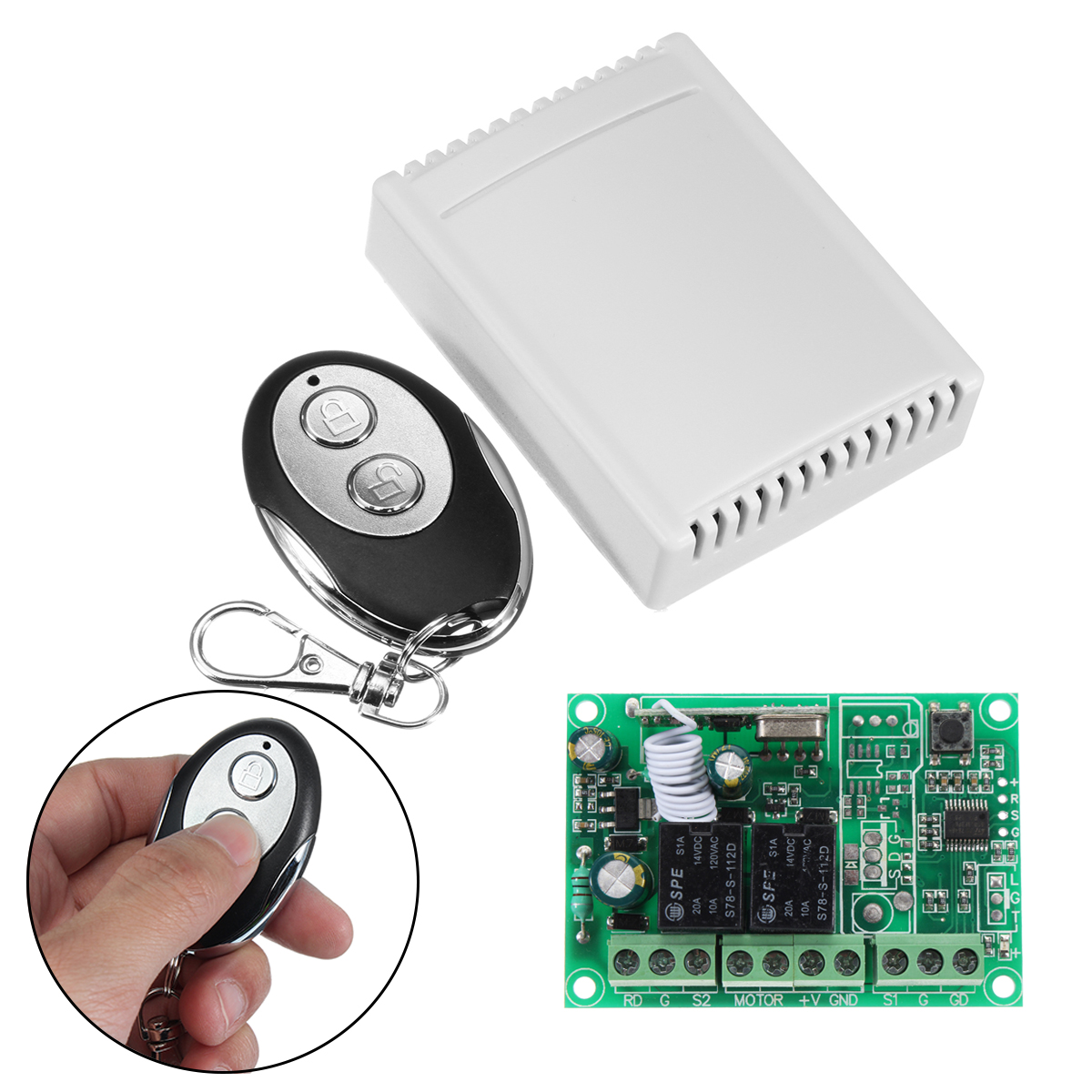

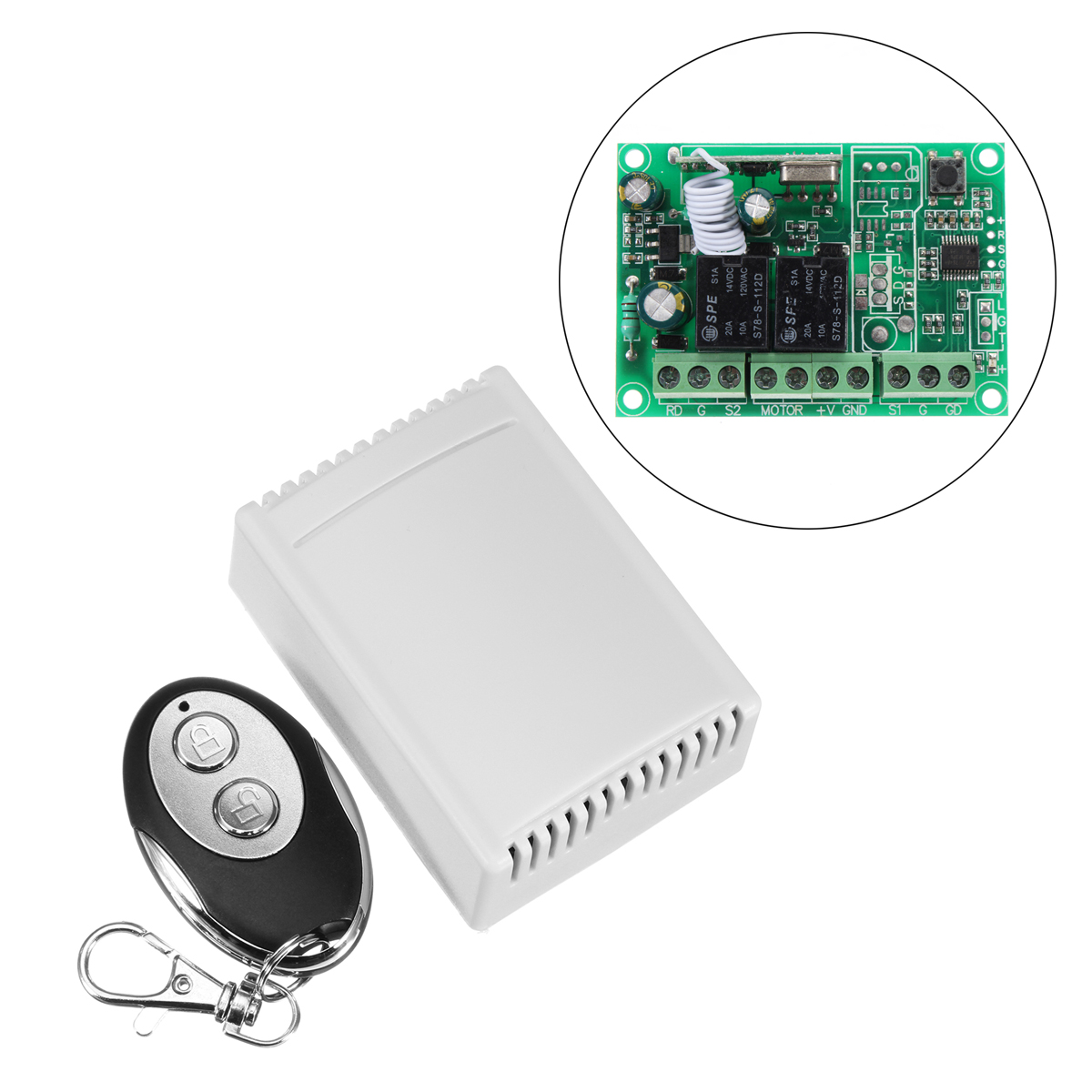

Package included:

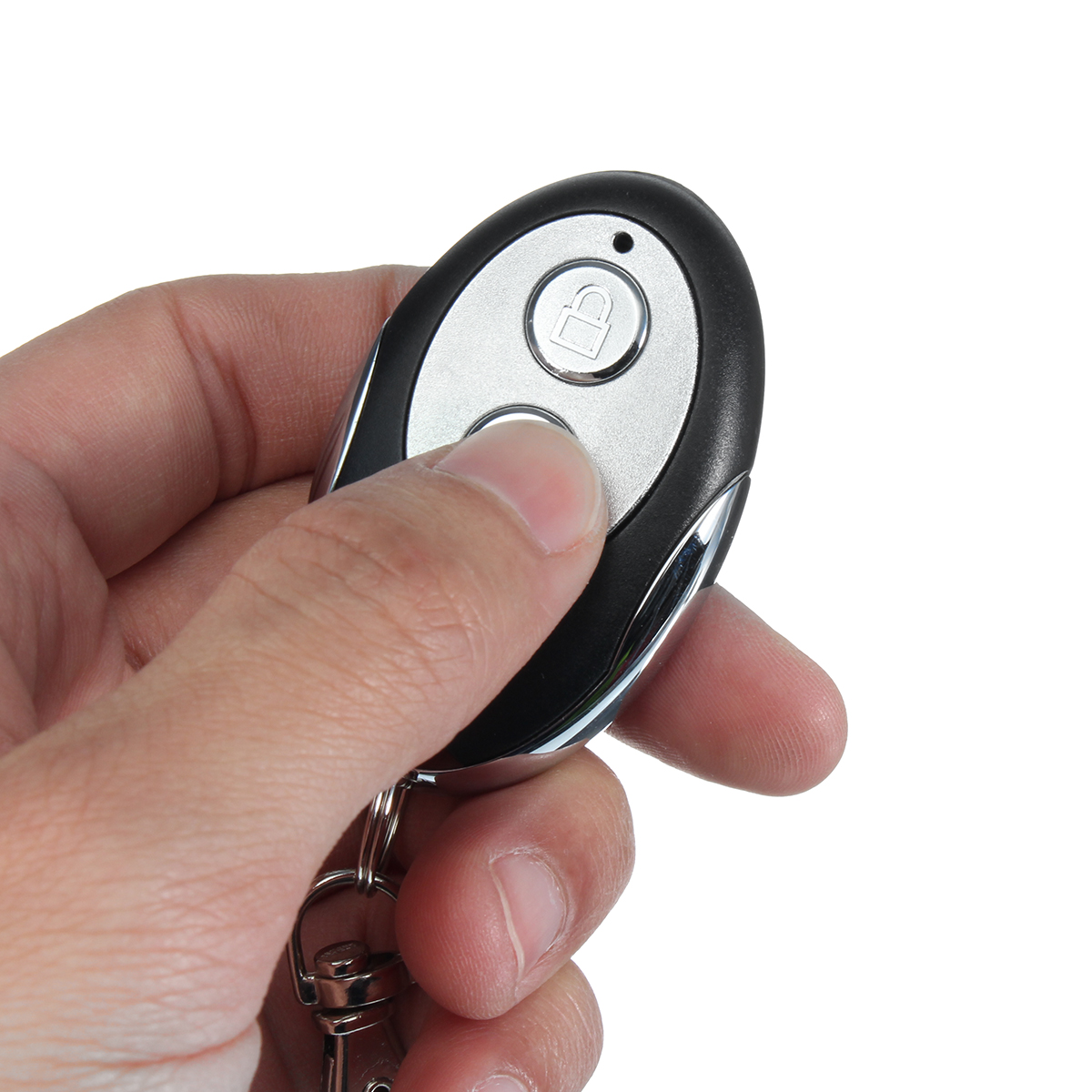

1 x Remote control switch
1 x Reciever board

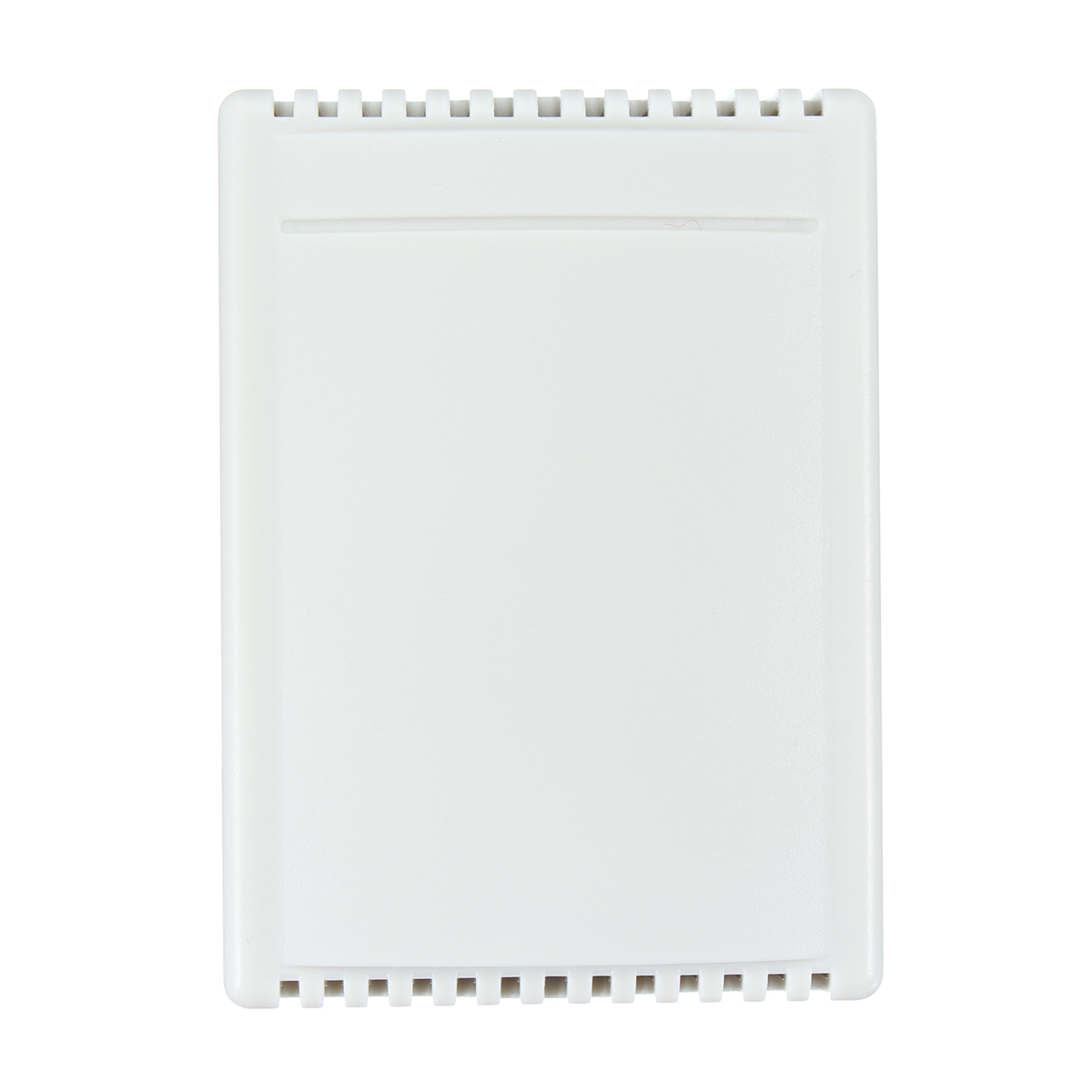

Picture details:
