433Mhz GSM Gateway Wireless Terminal Home Burglar Alarm Dialer System
- Stock: In Stock
- Model: 949585
$53.13
Ex Tax: $53.13
Description :
ÂÂ
433Mhz GSM Gateway Wireless Terminal Home Alarm System Home Burglar Alarm Dialer Fixed Cellular Terminal
While the GSM Gateway is installed with a SIM card, it can fucntion as a mobile phone device.
Normal analogue telephony devices (e. g. Cordless or Desktop Phone / FXO / PBX / VoIP equipment, etc. ) could be connected to this GSM gateway.
All the calls or communications will be accessed and transmitted via GSM network instead of traditional Copper Phone Wires.
Features : ÂÂ

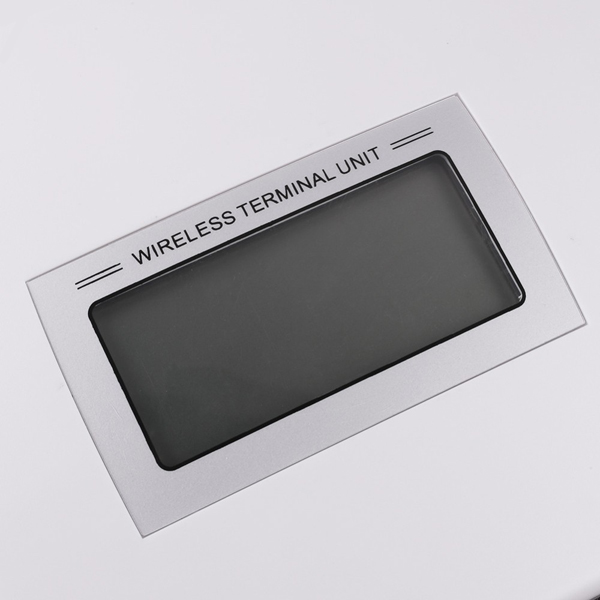

1. Multicolor backlight display (e. g. : blue, green)
2. Can dial the local calls, mobile calls, international calls and special free calls
3. Supports modem mode
4. No need to dial area code when calling local numbers
5. Automatically connects to IP network when dialing long distance(optional)
6. Automatic card-locking and netwok -locking enable
7. Caller ID display, time and date display, the power supply of battery can display at the same time on the LCD.
8. Cost rate setting enable
Specifications :
1. Networks support : GSM900/1800MHz
2. Frequency range :
GSM 900MHz(Transmits : 890-915MHz, Receives : 935-960MHz)
GSM 1800MHz (Transmits : 1710-1785MHz, Receives : 1805-1880MHz)
3.  Voltage : DC 9V /DC12V
4. Stand by hours : 48 Hours
5. Talk time : 2-6 Hours
6. Charging time : 6 hours
7. Power consumption :
Static ≤ 25MA          emission ≤ 500MA
8. Peak power consumption : 0. 25W/0. 5W
9. Receive sensitivity : -104db
10. Antenna increment : All directions : 5. 0db; Certain/Selection : 12db
Connect the terminal :
Connecting Your Service Provider
To use the networks services available in you terminal, you will need to sign up with wirelesses.
provider and purchase a SIM (Subscriber Identity Module) Card or purchase a prepaid SIM card. In many cases, the wireless provider will make available descriptions of its services and instructions for using its features. Wireless provider may differ in their support of features. Before you sigh up, make sure a wireless provider support the features that you need.

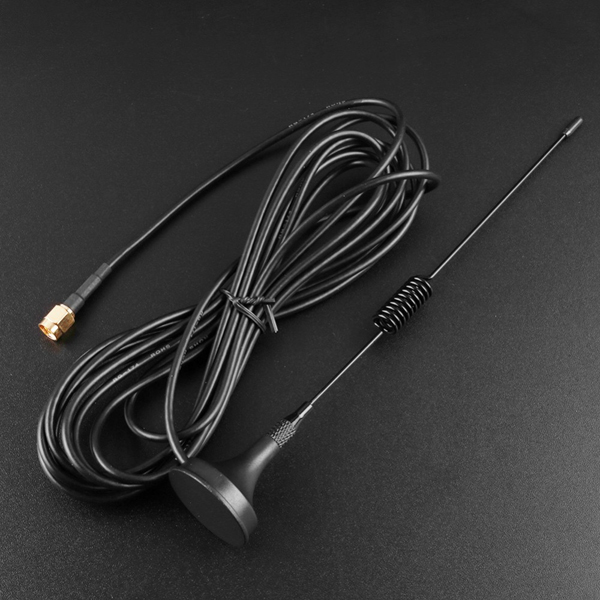

Installing the Antenna
To choose a proper place for the antenna is the first and very important step for antenna installing. You can use your mobile phone to search for the place where the strongest signal is. Then put the antenna here.
Please do not make the antenna too close to the terminal. It will disturb the signal of the terminal.
Please do not make the antenna and the terminal too close to the TV set, computer, and radiogram. It will disturb the signal of the terminal.
Inserting a SIM Card
Make sure the terminal is switched off and the AC adapter is unplugged: insert the SIM card only when the terminal is switched off and the AC adapter is unplugged. Follow the instructions below to insert a SIM Card into the terminal.
1). Screw off the screw of SIM card case, and open the cover.
2). Slide back the SIM card door and lift it up.
3). Slide the SIM card into the SIM door making sure that the clipped corner of the SIM card lines up with the clipped corner of the SIM holder.
4). Close the SIM card door and slide it to lock the SIM card in place.
5). Replace the cover of SIM card case and fixes it with a screw.
Connecting your terminal with desktop phone
If you want to use the terminal to make calls, you should connect the terminal with a common wired desktop phone.

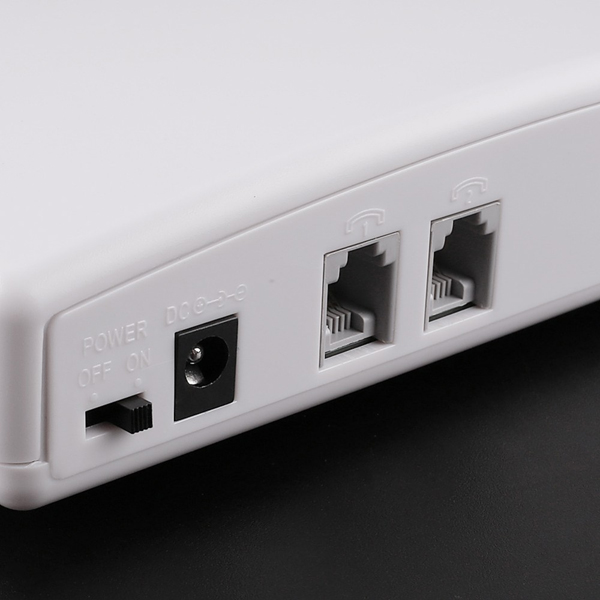

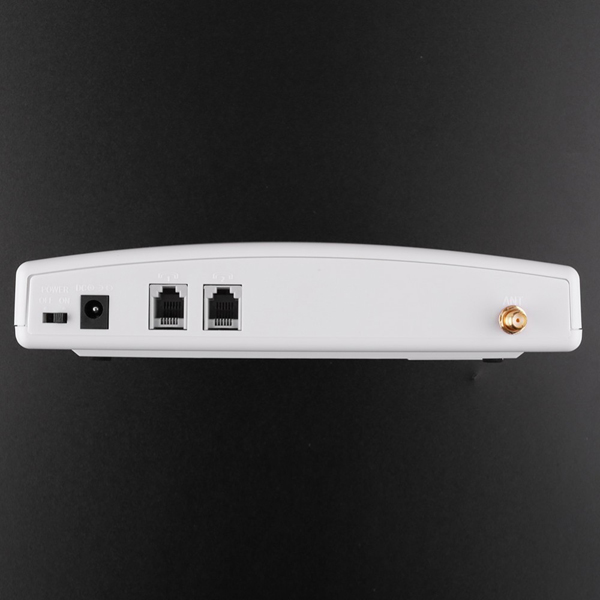

There is one or two communication portals at the back of the terminal. You can connect one desktop phone and billing machine (optional) with our terminal. It’s very easy to connect the phone and terminal, just need a common communication cable.
ÂÂ
While the GSM Gateway is installed with a SIM card, it can fucntion as a mobile phone device.
Normal analogue telephony devices (e. g. Cordless or Desktop Phone / FXO / PBX / VoIP equipment, etc. ) could be connected to this GSM gateway.
All the calls or communications will be accessed and transmitted via GSM network instead of traditional Copper Phone Wires.
Features : ÂÂ
1. Multicolor backlight display (e. g. : blue, green)
2. Can dial the local calls, mobile calls, international calls and special free calls
3. Supports modem mode
4. No need to dial area code when calling local numbers
5. Automatically connects to IP network when dialing long distance(optional)
6. Automatic card-locking and netwok -locking enable
7. Caller ID display, time and date display, the power supply of battery can display at the same time on the LCD.
8. Cost rate setting enable
Specifications :
1. Networks support : GSM900/1800MHz
2. Frequency range :
GSM 900MHz(Transmits : 890-915MHz, Receives : 935-960MHz)
GSM 1800MHz (Transmits : 1710-1785MHz, Receives : 1805-1880MHz)
3.  Voltage : DC 9V /DC12V
4. Stand by hours : 48 Hours
5. Talk time : 2-6 Hours
6. Charging time : 6 hours
7. Power consumption :
Static ≤ 25MA          emission ≤ 500MA
8. Peak power consumption : 0. 25W/0. 5W
9. Receive sensitivity : -104db
10. Antenna increment : All directions : 5. 0db; Certain/Selection : 12db
Connect the terminal :
Connecting Your Service Provider
To use the networks services available in you terminal, you will need to sign up with wirelesses.
provider and purchase a SIM (Subscriber Identity Module) Card or purchase a prepaid SIM card. In many cases, the wireless provider will make available descriptions of its services and instructions for using its features. Wireless provider may differ in their support of features. Before you sigh up, make sure a wireless provider support the features that you need.
Installing the Antenna
To choose a proper place for the antenna is the first and very important step for antenna installing. You can use your mobile phone to search for the place where the strongest signal is. Then put the antenna here.
Please do not make the antenna too close to the terminal. It will disturb the signal of the terminal.
Please do not make the antenna and the terminal too close to the TV set, computer, and radiogram. It will disturb the signal of the terminal.
Inserting a SIM Card
Make sure the terminal is switched off and the AC adapter is unplugged: insert the SIM card only when the terminal is switched off and the AC adapter is unplugged. Follow the instructions below to insert a SIM Card into the terminal.
1). Screw off the screw of SIM card case, and open the cover.
2). Slide back the SIM card door and lift it up.
3). Slide the SIM card into the SIM door making sure that the clipped corner of the SIM card lines up with the clipped corner of the SIM holder.
4). Close the SIM card door and slide it to lock the SIM card in place.
5). Replace the cover of SIM card case and fixes it with a screw.
Connecting your terminal with desktop phone
If you want to use the terminal to make calls, you should connect the terminal with a common wired desktop phone.
There is one or two communication portals at the back of the terminal. You can connect one desktop phone and billing machine (optional) with our terminal. It’s very easy to connect the phone and terminal, just need a common communication cable.
ÂÂ

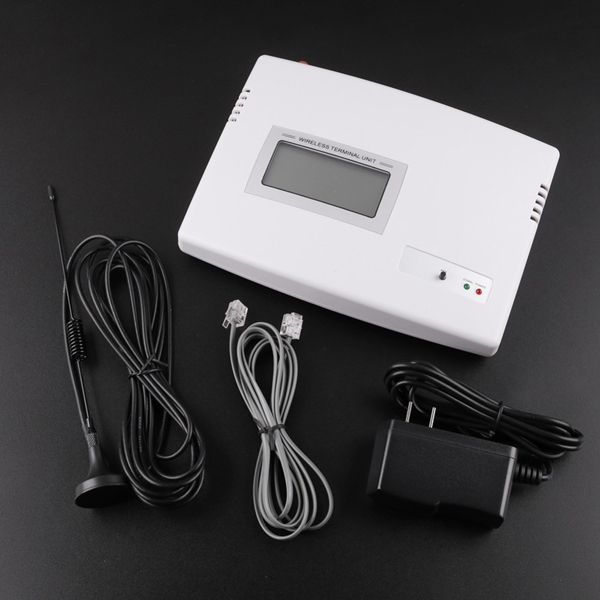

Package includes : ÂÂ
1 x GSM Gateway Main Unit
1 x Rubber Antenna
1 x 110 to 220Vac Power Supply
1 x English Manual
ÂÂ
1 x GSM Gateway Main Unit
1 x Rubber Antenna
1 x 110 to 220Vac Power Supply
1 x English Manual
ÂÂ

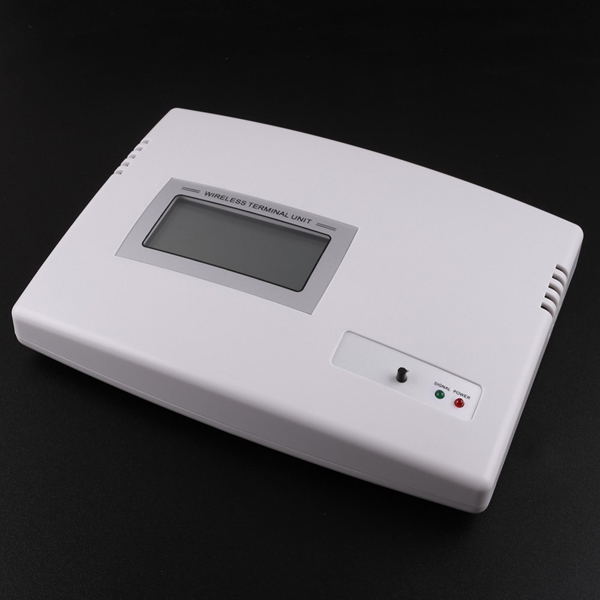

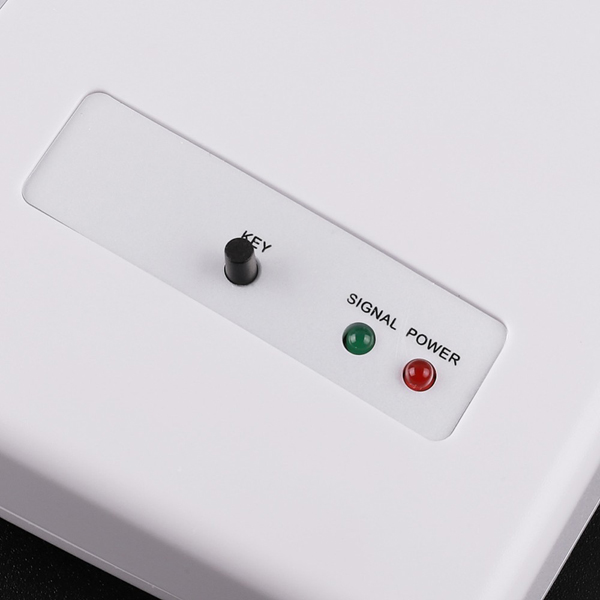

Details pictures : ÂÂ
ÂÂ
ÂÂ
