- Stock: In Stock
- Model: 1201692
Product name : 19mm push button switch
Material : stainless steel
Voltage : 12V
Current : 3A
IP rating : IP65
Working temperature : -20 to 50 degree
Head design : flat round
Latching type, push it-- on, push it again -- off

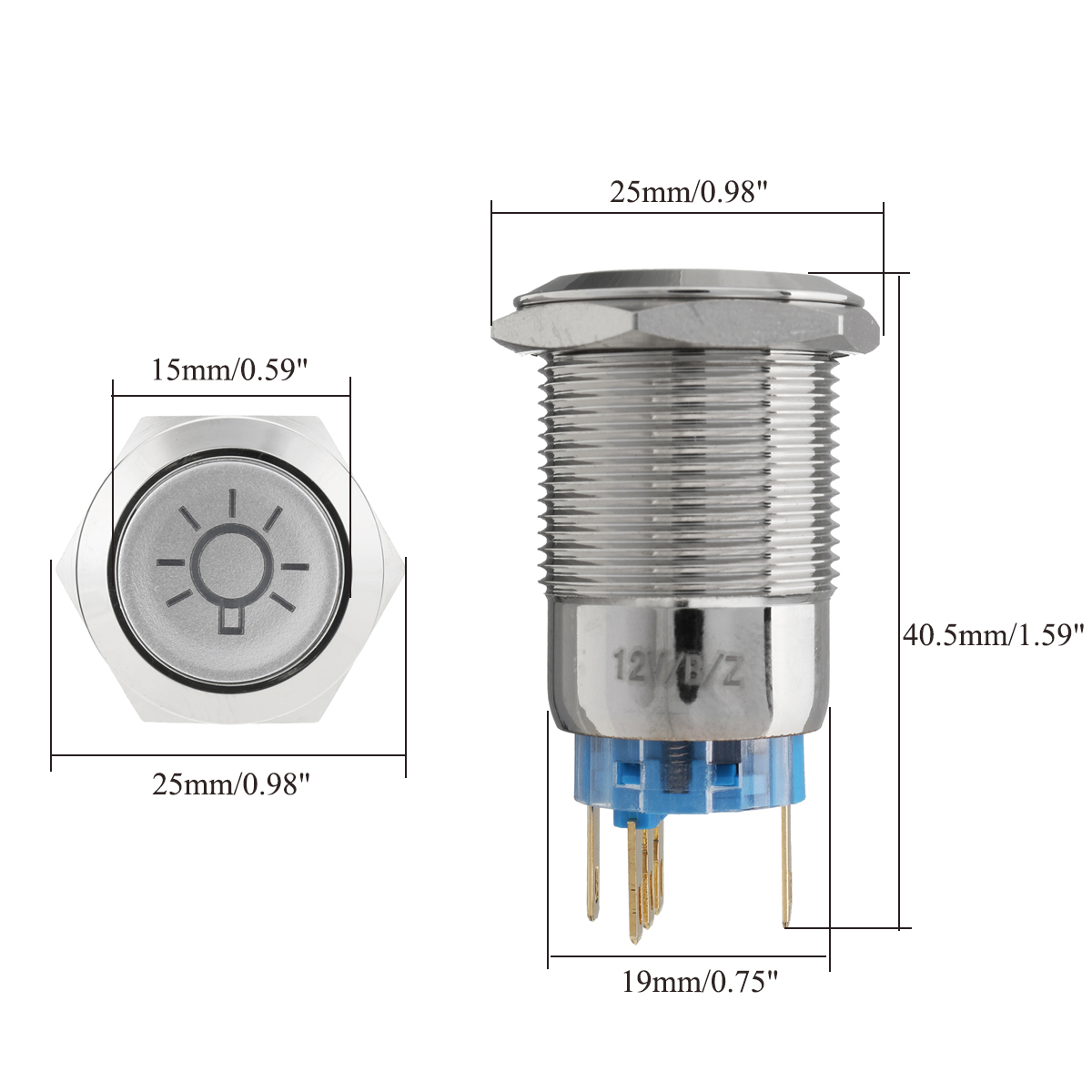

Head diameter 25mm/0.98"
Button diameter 15mm/0.59"
Hole size required 19mm/0.75"
Depth inc contacts 40.5mm/1.59"
Housing color : sliver

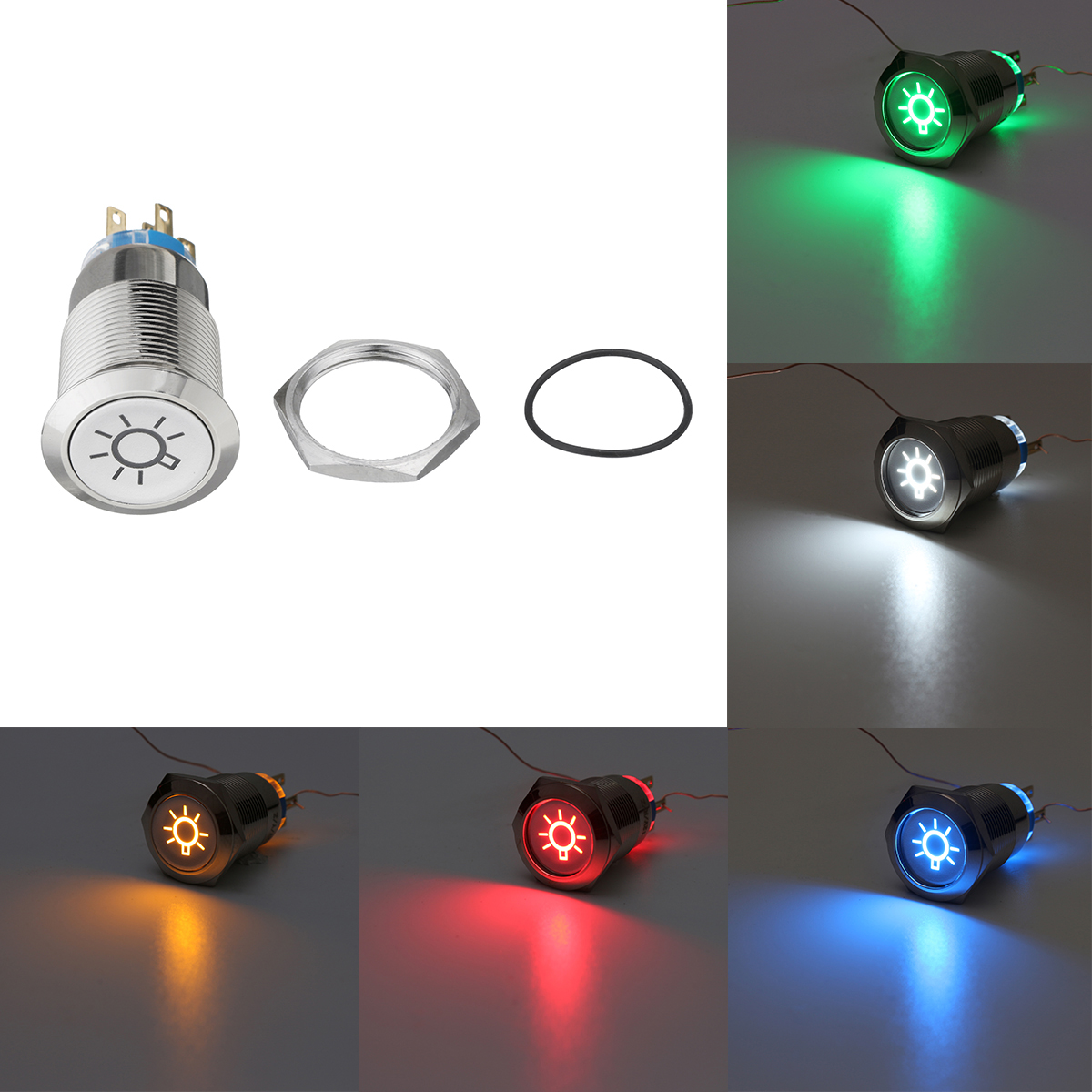

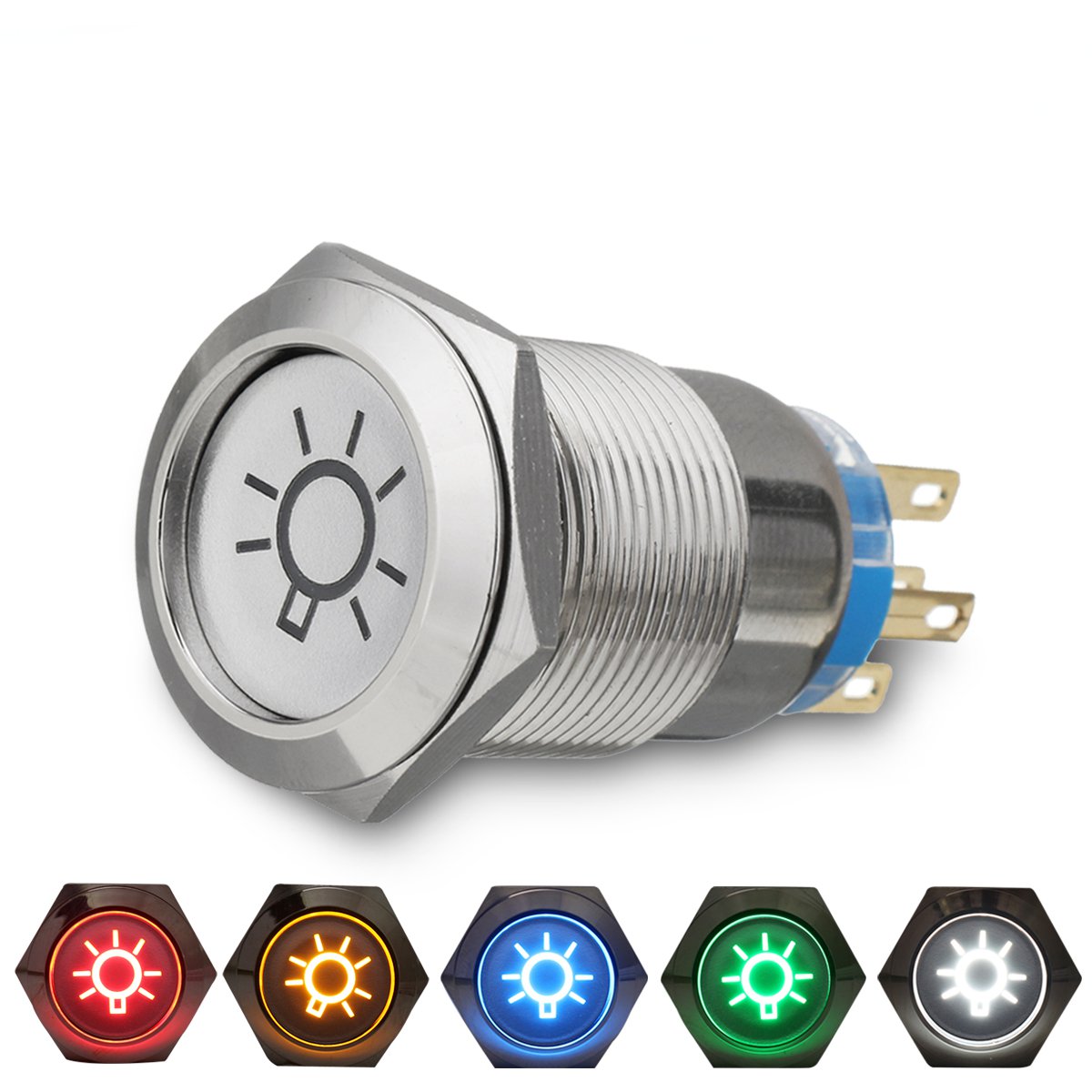

Light color : red / yellow / white / green / blue
(Please let us know the color you’d like,You can leave the message on your Paypal note to tell us. Otherwise we’ll send them at random)
Application : ideal for any 12v system, car, van, lorry, boat, dashboard, panels, etc.
Features:
1.Durable, high-grade appearance and nice touch feeling.
2.A great looking Panel button with led light and dome light pattern.
3.Rated PI65 waterproof. great for outdoors use.May be exposed to heavy rain, splashes, etc. without damage.
4.For load under 3 Amp, you do not need a relay with this switch. For load above 3 Amps, we advise you to use of Automotive Relay (sold in our store).
5.Widely used for circuits control in electromagnetic starter, contactor, relay and other electric circuits.
Package Included:
1 x LED push button switch
