125KHz RFID ID Card Password Access Control System Kit Electric Magnetic Lock
- Stock: In Stock
- Model: 1142252
$106.66
Ex Tax: $106.66
Description :
ÂÂ
ÂÂ
This access control and safety management system is a new modern safety management system.
It is an effective method to solve the inward and outward safety management.
This kit can be applied to all kinds of places, such as bank, hotel, office, computer room, factory, etc.
ÂÂ
It is an effective method to solve the inward and outward safety management.
This kit can be applied to all kinds of places, such as bank, hotel, office, computer room, factory, etc.
ÂÂ
Features :

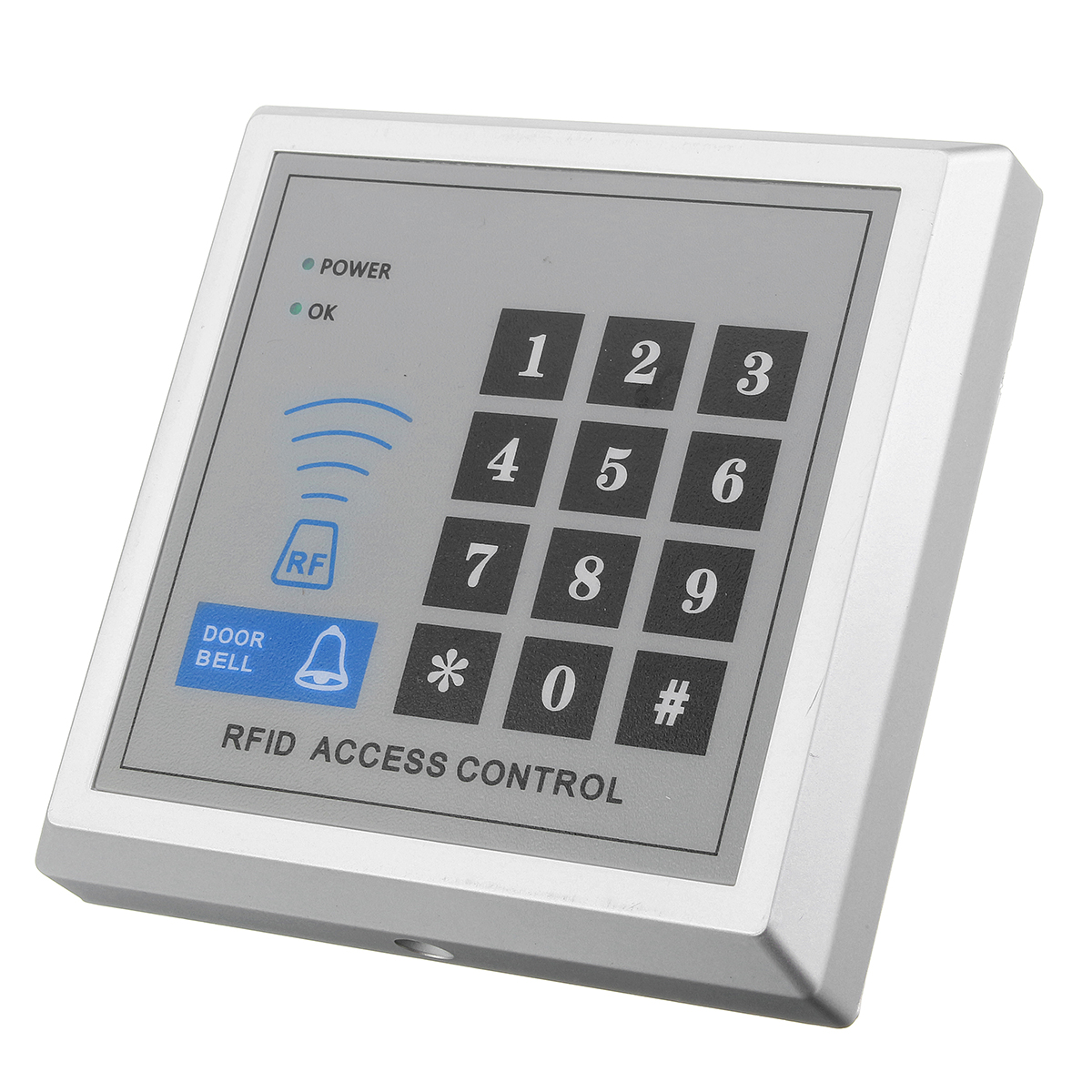

Access Controller:
1.The card entrance guard machine, simple and stable in operation.
2.Variety of authentication for opening the door: password, card and card+password.
3.Card capacity:400, may be extended to 3000.
4.Wide using range: any need to access control channel.
5.The access controller can provide users with more convenience by connecting to terminals, such as button, magnetic lock.
6.An good equipment for businesses, offices, factories, and communities.
Electric Lock:
1.Secure mode: the door will lock while supplied with power, and unlock without power.
2.Especially suitable for glass doors.
3.It is made from durable and high aluminium alloy material, durable for use.
4.Special circuit design, the door will unlock until the power is cut off.
5.With no external interference, making it more stable and safer.
Access Control Power Supply:
1.Voltage range input regularly from 110V-240V, compatible with world voltage.
2.Small size, high reliability, electromagnetic compatibility, easy installation.
3.High efficiency, overload protection function.
4.Temperature of electric lock(compared to the commercial power supply)is greatly reduced.
Note: Opening time must set to 0 second when connecting with electric controlled lock. Otherwise electric bolt lock would be Burned Down.
ÂÂ
Specification :
Model: MJPT015

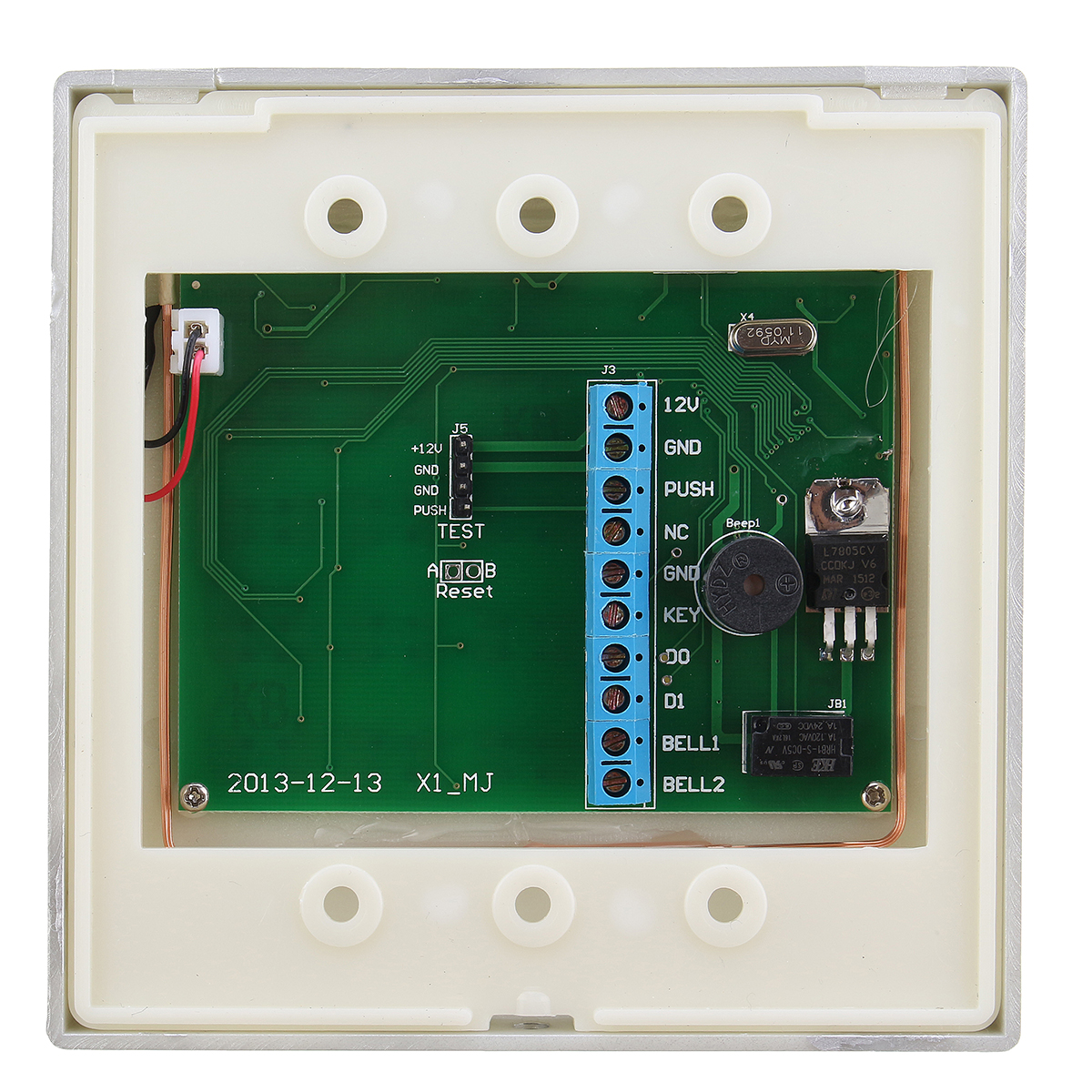

Access Controller:
1.Working Voltage: DC 12V
2.Electric Current: Don't drive lock ≤70mA
3.Unlock the Electric Current: ≤1000mA
4.Working Temperature: -10℃-70℃
5.Working Humidity: 0-100%
6.Frequency: 125KHz
7.Card Capacity: 500, May be extended to 3000
8.Authentication Mode: Password, Card, Card+Password
9.Max. Swipe Distance: 15-20cm
10.Initial Programming Password: 123456
11.Dimensions: 115 x 115 x 20mm / 4.53 x 4.53 x 0.8in

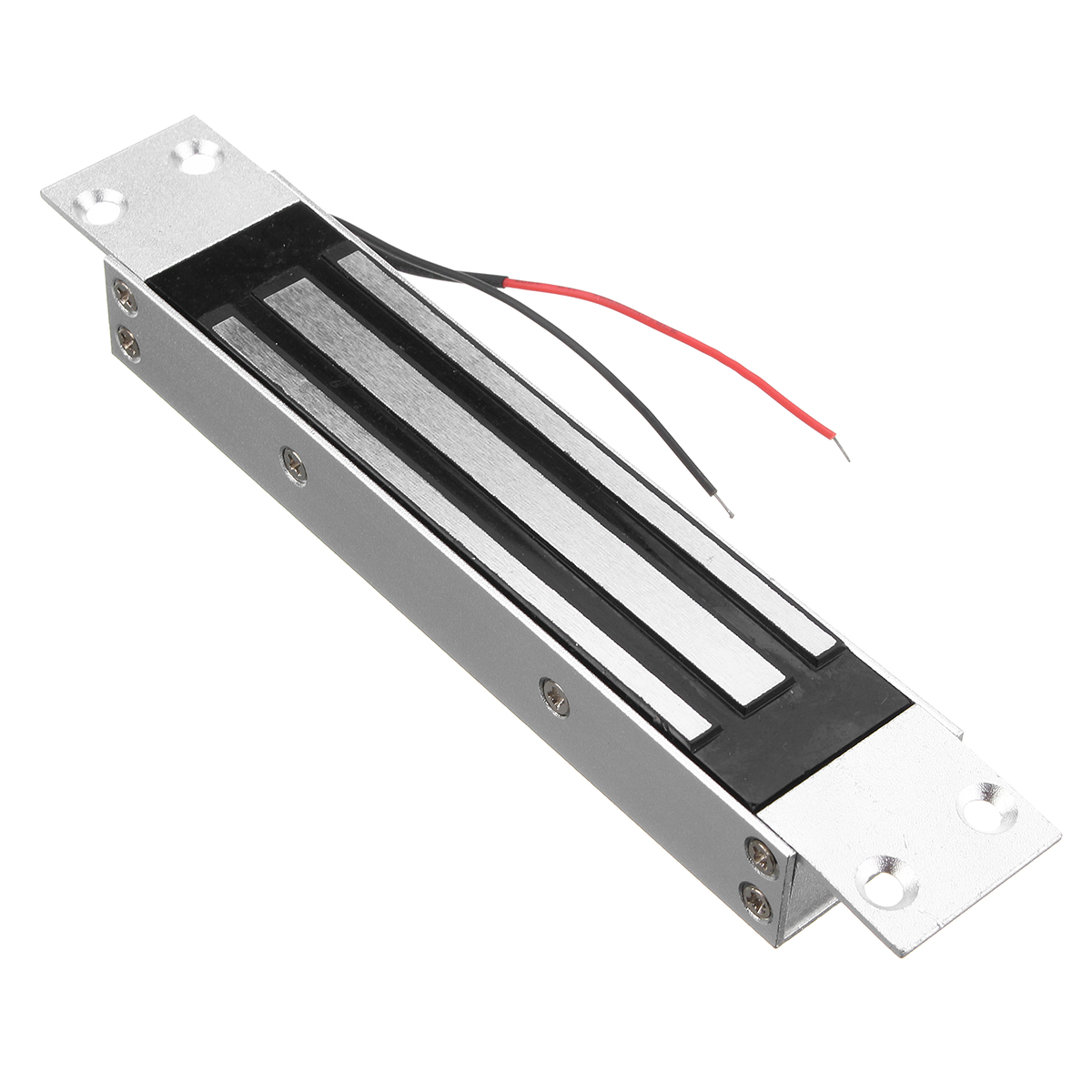

Electric Lock:
1.Color: Silver
2.Material: Aluminium Alloy
3.Working Voltage: DC 12V
4.Working Current:
Ordinary Mode: Start State: 450mA; Persistent State: 450mA
Low Temp Mode: Start State: 750mA; Persistent State: 180mA
5.Lock Mode: Magnetic Induction
6.Lock Size: 20.3 x 3.4 x 4.2cm / 8 x 1.34 x 1.65in (L x W x H)
7.Face Plate Size: 21.3 x 4.2cm / 8.4 x 1.65in (L x W)
8.Magnetic Base Size: 9 x 2.5cm / 3.54 x 0.98in (L x W)

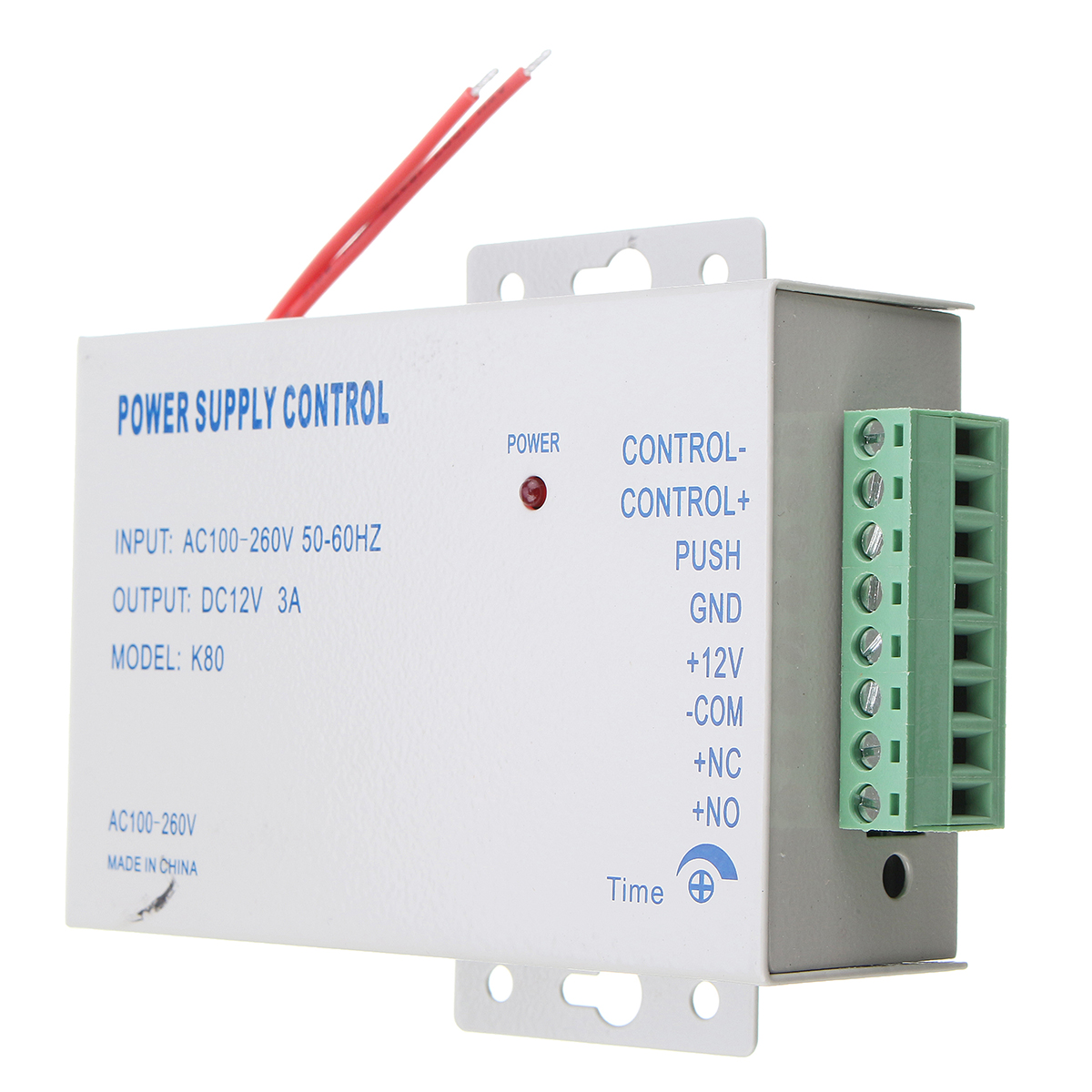

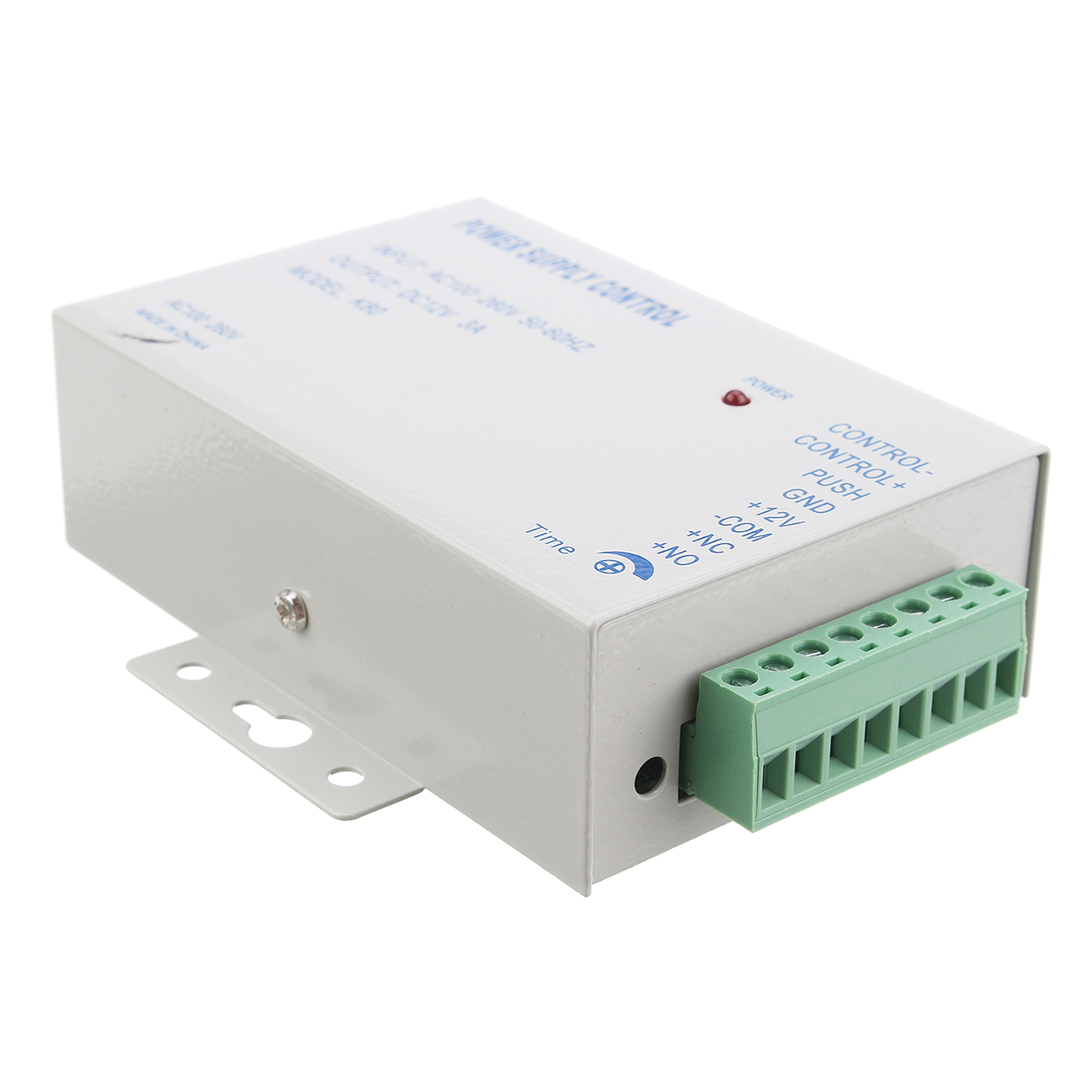

Access Control Power Supply:
1.Input Voltage: AC 110-240V
2.Input Frequency: 50-60Hz
3.Output Voltage: DC 12V
4.Output Current: 3A
5.Output Voltage Trim Range: ±5 to ±10
6.Load Stability: 1% Typical
7.Output Stability: 0.5% Typical
8.Ripple Noise: 1%, for Peak to Peak(100mVp-p typ)
9.Hold Time: At Full Load typ 20ms
10.Working Temperature: -20℃ to 65℃
11.Dimensions: 110 x 65 x 33mm / 4.33 x 2.56 x 1.3in

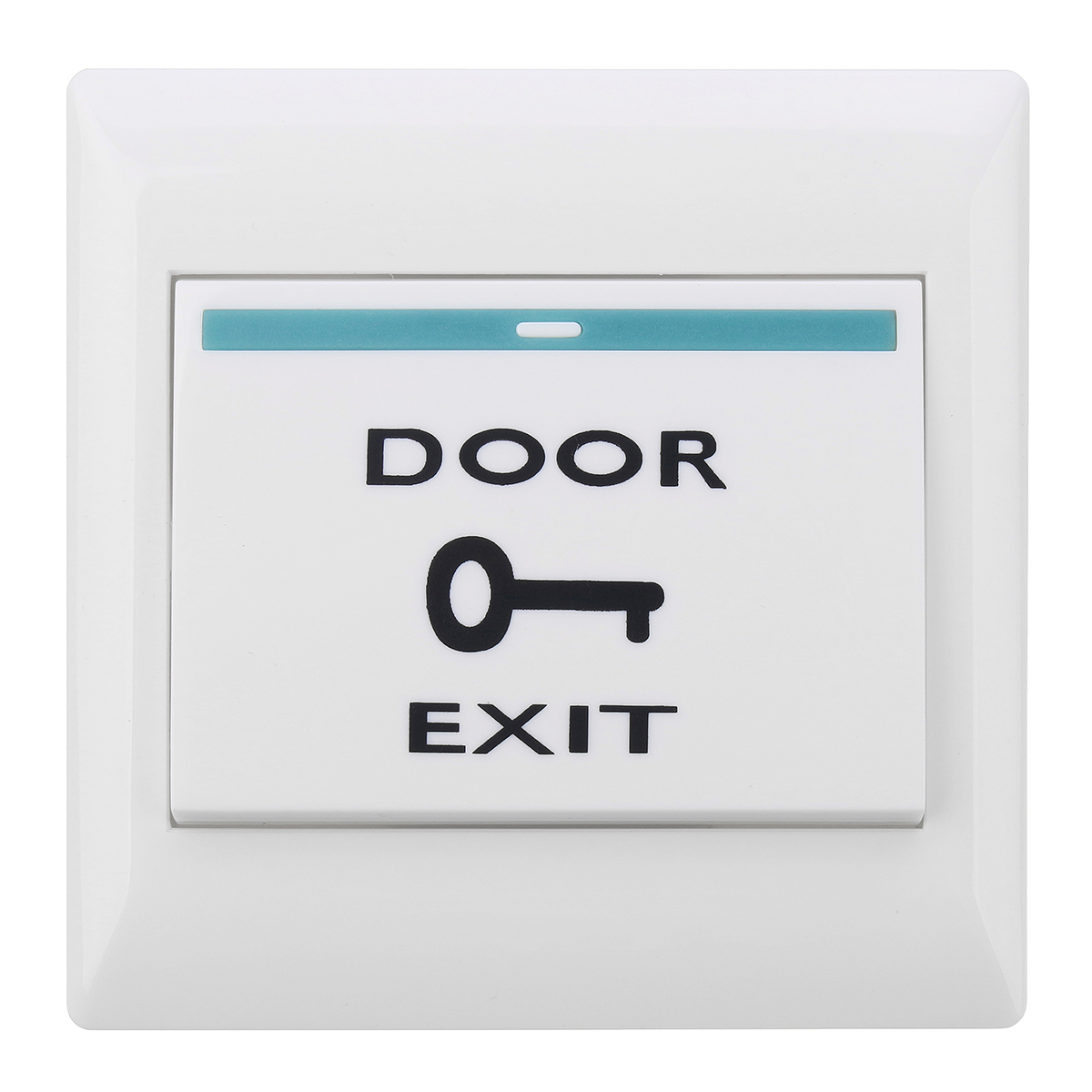

Door Switch:
1.Panel Material: Fireproof Material
2.Current Rating: 3A@36V DC Max.
3.Suitable for Door: Hollow Door
4.Operating Temp: -10~55℃ / 14-131℉
5.Operating Humidity: 0-95% (non-condensing)
6.Dimensions: 86 x 86 x 20mm / 3.4 x 3.4 x 0.8inch
ÂÂ

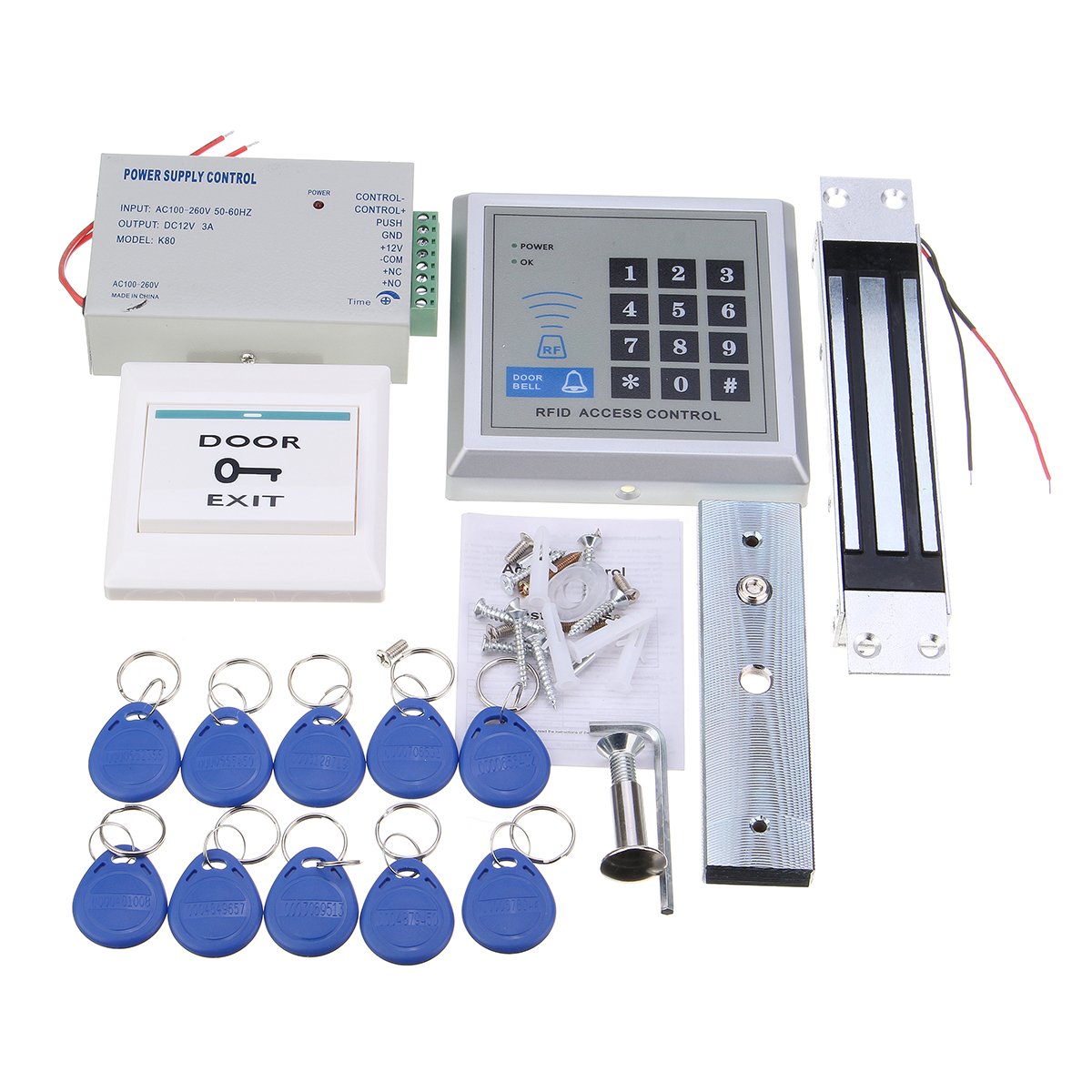

Package includeds :
1 x Dntrance Guard host
1 x Door Switch
1 x Door Dedicated power supply
1 x Magnetic Lock

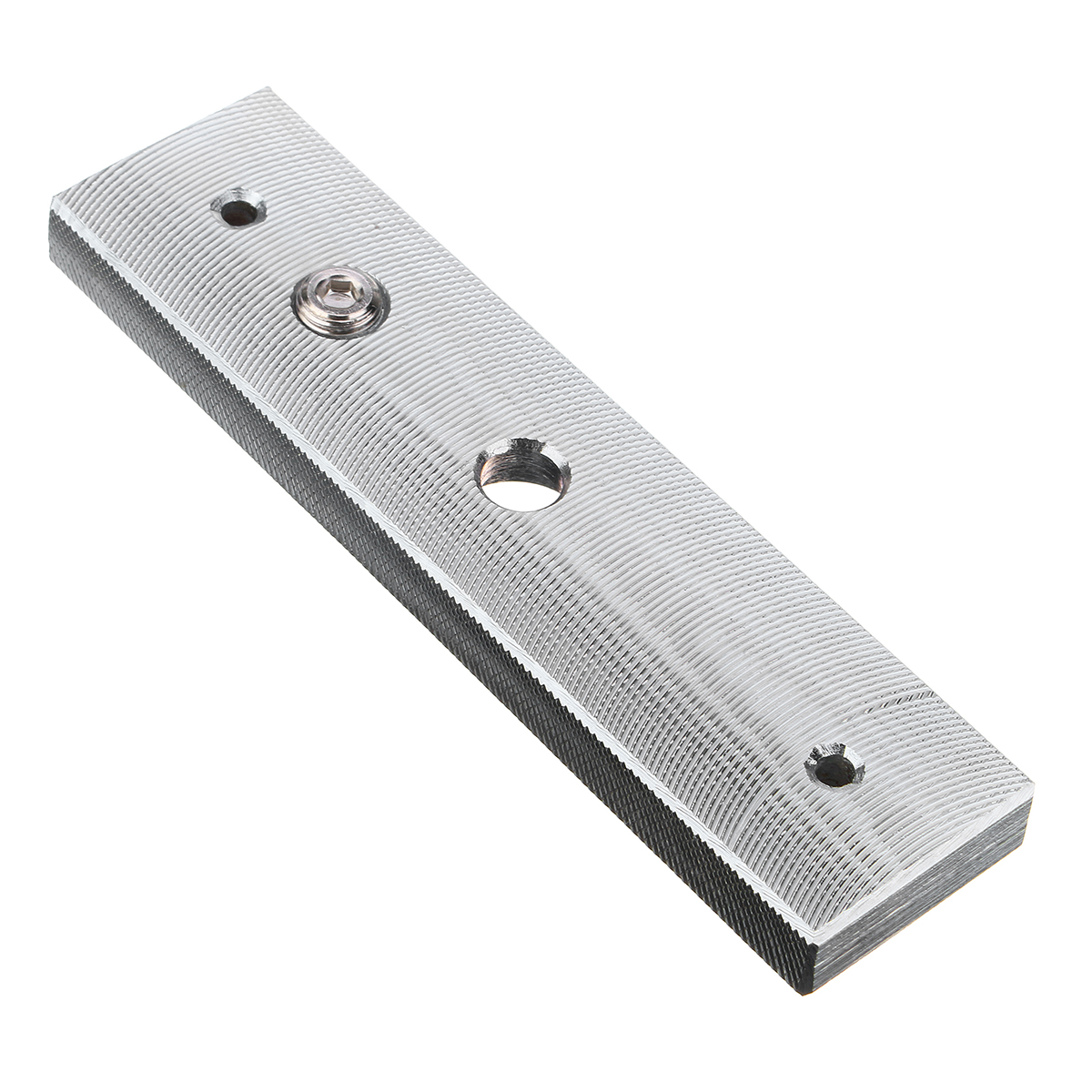

1 x Armature Faceplate

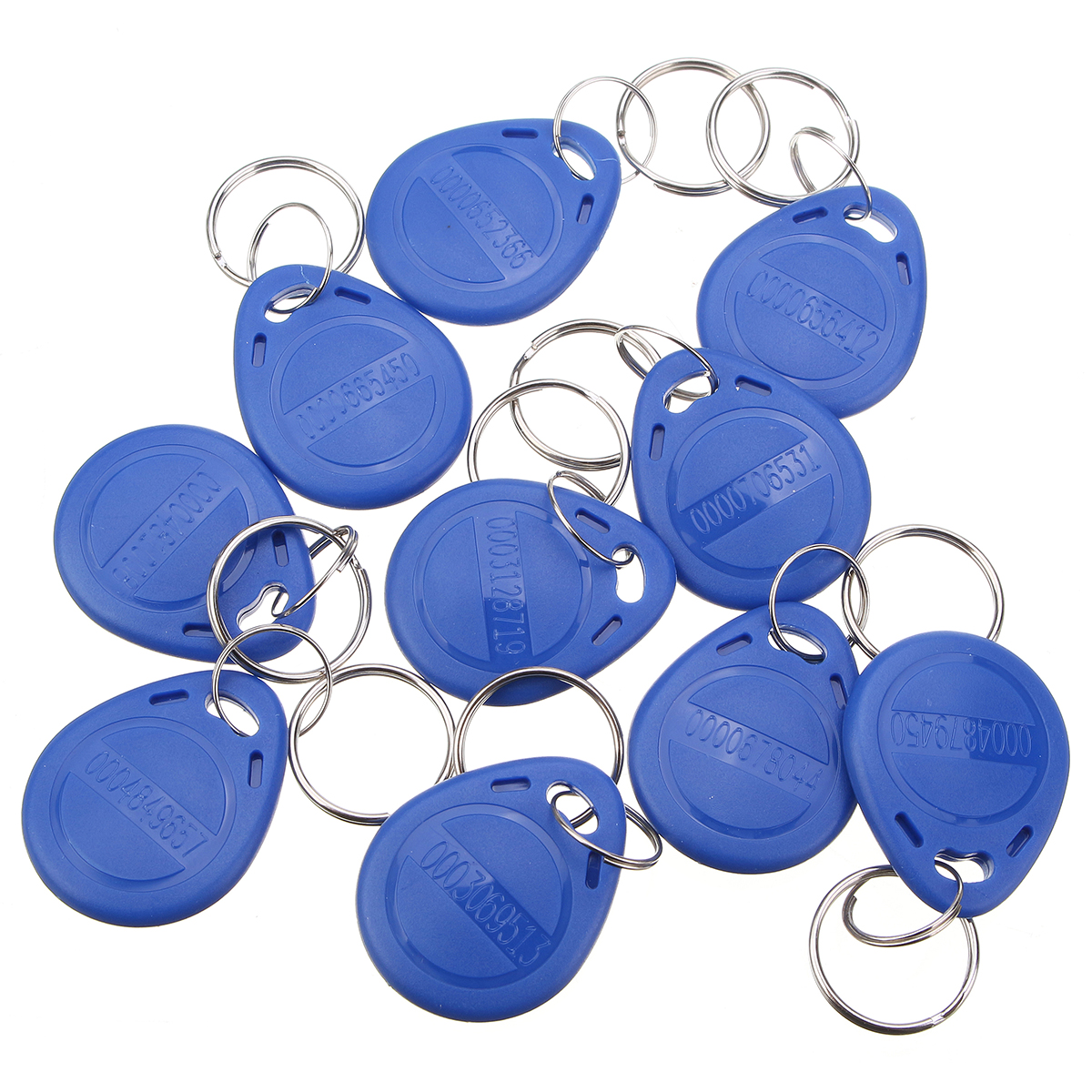

10 x ID card (125 KHz)
3 x Packet of Mounting Screws (for Magnetic Lock/Keypad/Door Switch)
1 x English User Manual
ÂÂ

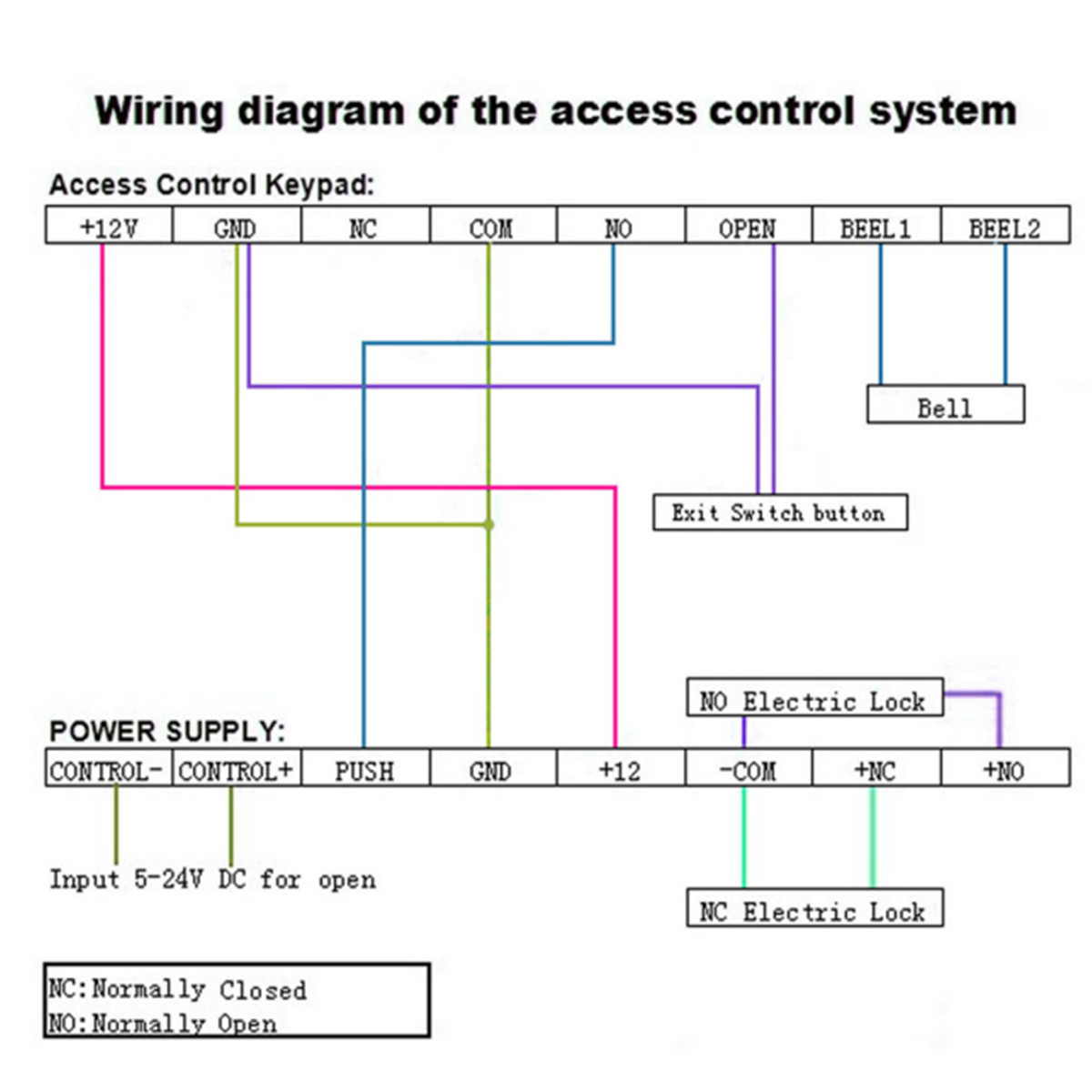

Details pictures :
