  • Stock: In Stock
  • Model: 1452037
$209.99
Ex Tax: $209.99







12 Channel bluetooth Live Studio Audio Mixer Mixing Console with USB XLR Input 48V Phantom



Specifications:
1. Color: Black
2. Material: Metal
3. Max. Input Level:
    MIC  24dBu
    Line  24dBu
    Other Line  20dBu
4. Max. Output Level:
    XLR  24dBu
    TRS  24dBu
5. Master Meters: 10 Segment -24dB to CLIP
6. Channel Meters: 1 LED Signal Indication
7. Frequency Response: 20Hz to 30KHz 0.5dB
8. CMRR(MIC 1KHz): >75d
9. THD+N: <0.01%(Channel to mix out)
10. Crosstalk at 1kHz:
      Fader shutoff > 85dB
      Mute shutoff >85dB
      Inter channel >82dB
11. Noise, rms 22Hz to 22kHz:
      EIN -122dBu
      Residual output noise < -90dBu
      L/R main mix noise < -82dBu
      Aux mix noise<-82dBu
12. MONO EQ:
      LF, shelving, +/-15dB, 12KHz
      HM, peak/dip, +/-15dB, 2. 5KHz
      LF, shelving, +/-15dB, 80HZ
13. Mono Channel
      XLR balanced, pin 2 hot, 2K ohm, Sensitivity -40 to +14 dBu
      TRS balanced, tip hot, 10K ohm, Sensitivity -20 to+14 dBu
      XLR, phantom+48V
14. 2-track Return: RCA, unbalanced, 4K ohm, -2 dBu
15. 2-track Send: RCA, unbalanced, <75 ohm, -2 dBu
16. L/R Output: XLR balanced, pin 2 hot, <75 ohm, +4 dBu, Max+22 dBu
17. FX/AUX Output: TRS unbalanced, tip hot, <75 ohm, -2 dBu, Max +18 dBu
18. Headphones: TRS, tip L, ring R, 30 to 600 ohm
19. Max. Power Input Power: 40 Watts

Introducing Brief Functionse:
- 6. 8 10 12 channel frame.
- LR main mix.
- 2AUX sends.
- Recording.
- Responsive 3 band EQ.
- Individual phantom power.
- Channel and master meters.

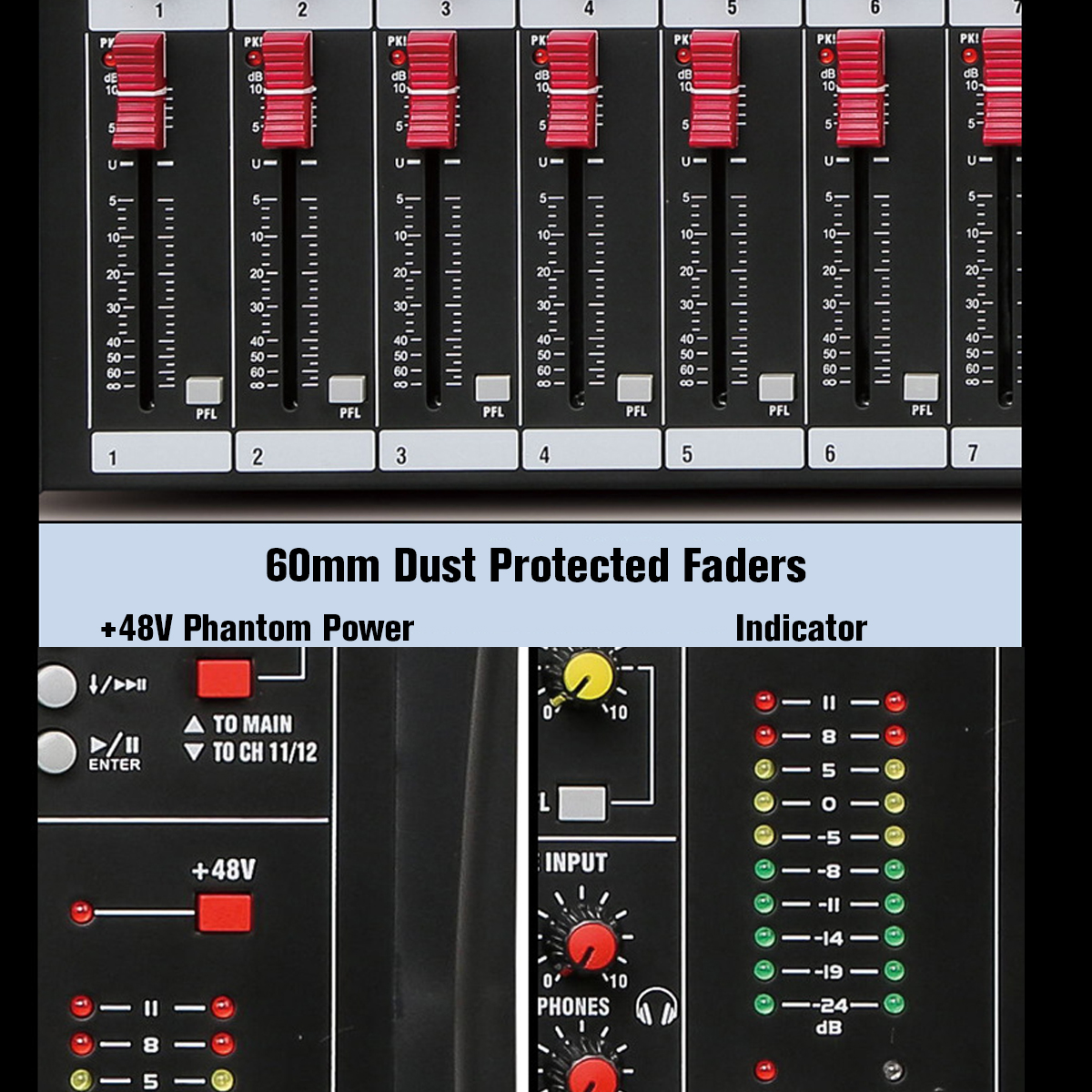

- 60mm dust protected faders.
- 2-track monitoring and repeat to LR.
- Headphones and local monitor outputs.
- Dedicated stereo, peak-retaining monitor meters.
- Electronically balanced XLR outputs with +26dBu drive capability.
- Preamp +34dBu maximum input capability for mic or line
- Ultra low noise mix head amp design.
- bluetooth & Mp3 player/recorder with concise human-machine interactive interface.
- Digital effect processor.

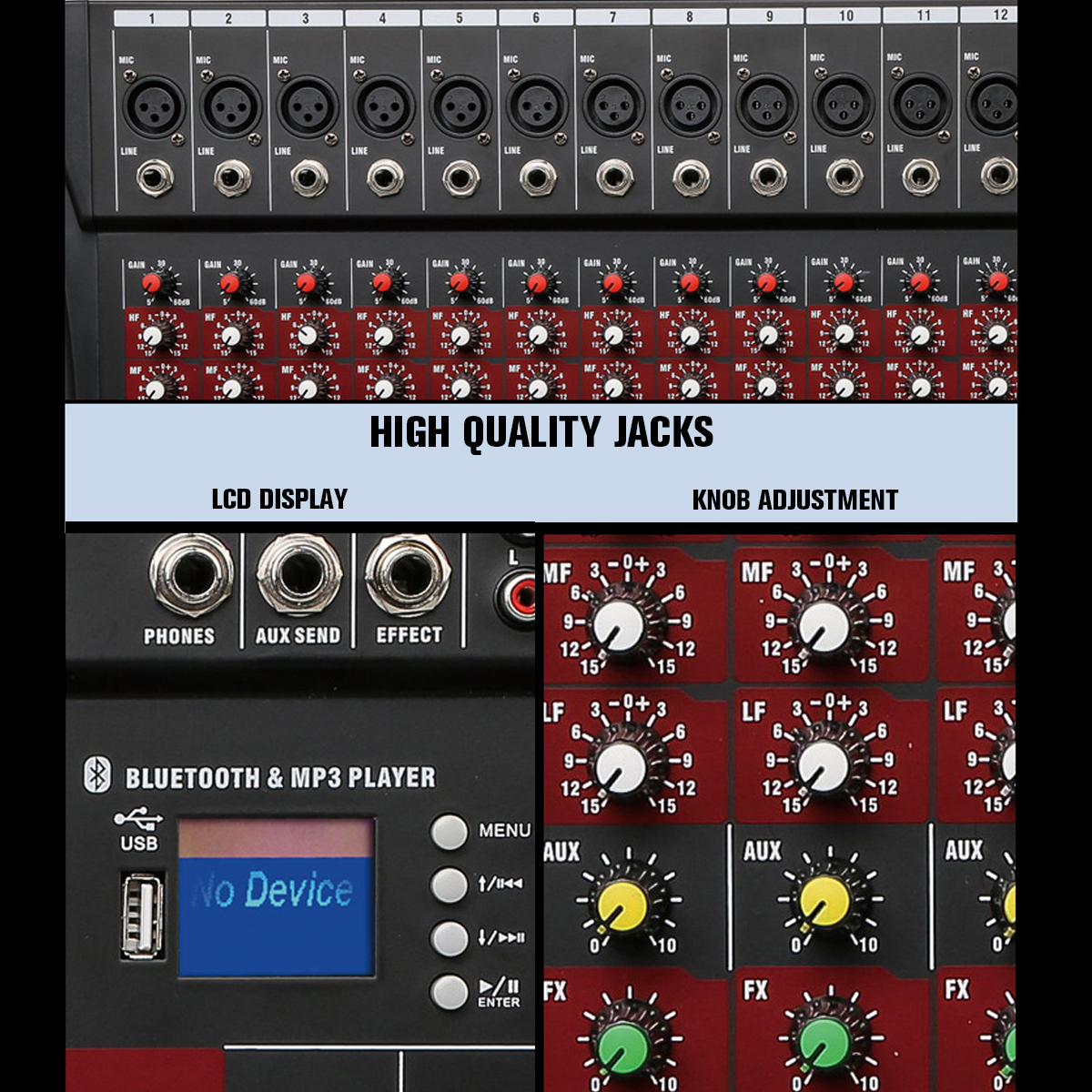

- Metal jacks, gold-plated XLRS, sealed pots and switches
- External power adapter power supply.

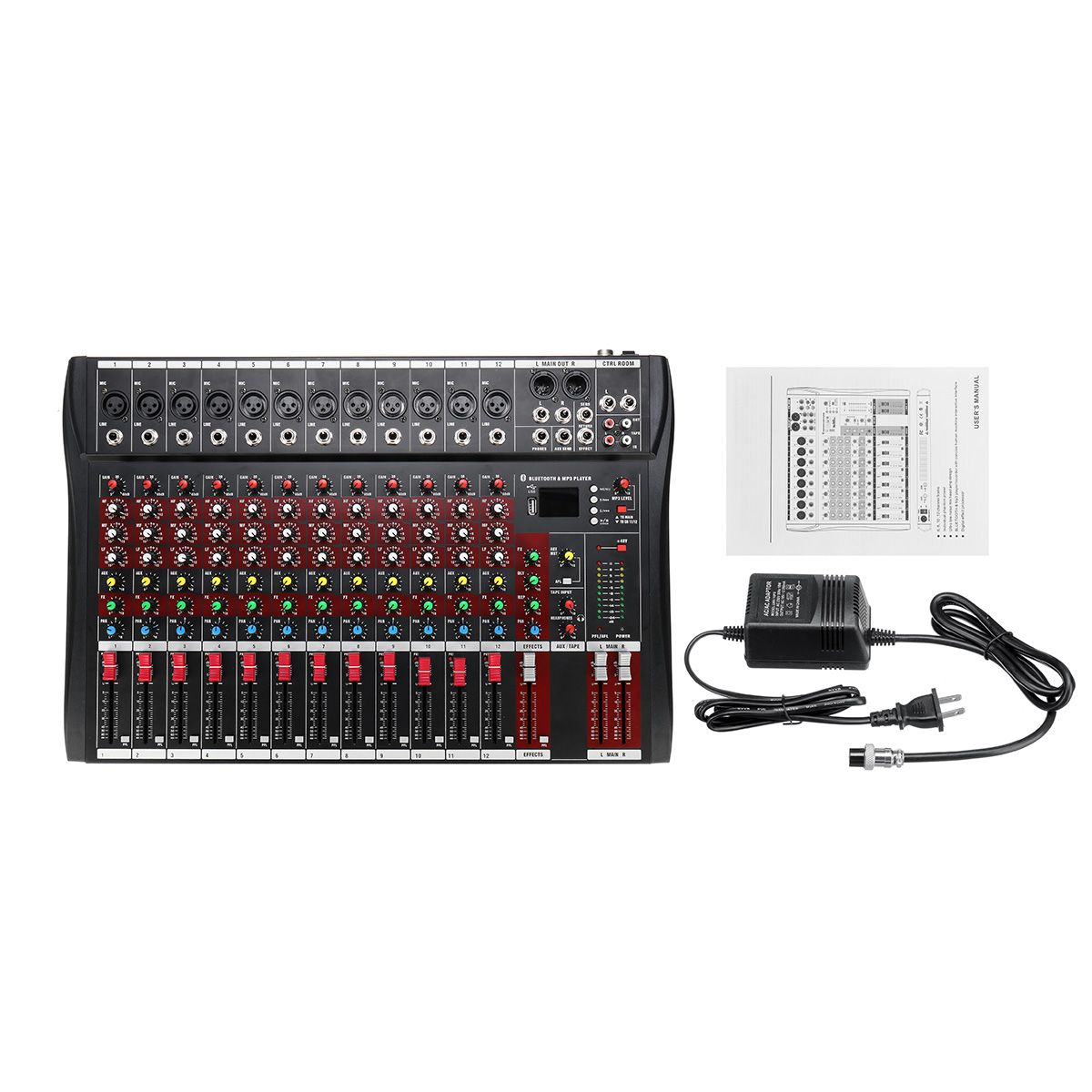

Package Included:
1 x Mixing Console
1 x Power Adapter(US Plug)
1 x User Manual
