  • Stock: In Stock
  • Model: 1063885
$4.33
Ex Tax: $4.33







10Pcs 5.5mm x 2.1mm DC Power Supply Metal Jack Socket With Nut And Washer

Features:


DC Jack Socket head with screw-socket
Directly drill hole on surface veneer for installation,just fixed on the nut
Such as install on the plastic shell,chassis,machine shell,simple,convenient and fast.


Specification:

Life 5000 times
Limit load DC30V / 0.5 A
Contact resistance ≤0.03 Ω
Size(the pin) 5.5 mmx2.1 mm
The aperture of install 8 mm
Pressure AC 500 V (50 hz) /min
Temperature range of use - 40-55 ℃
Insertion and Extraction force 3-20 N
Insulation resistance ≥100 m Ω / DC250V
Length(containing the pin) about 21 mm
Suitable for factory production,DIY refitting or electronic production, etc

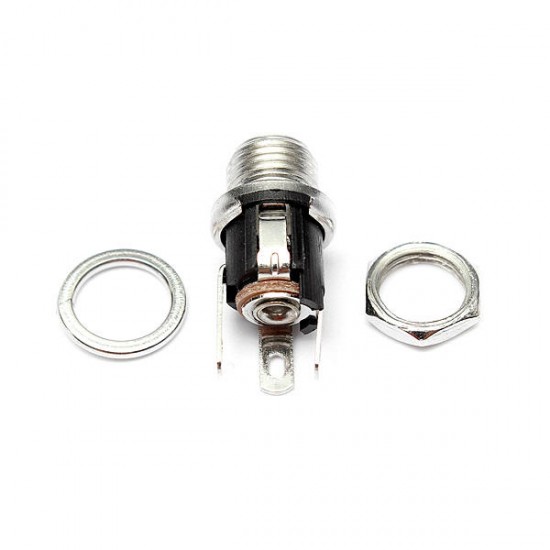

Package Included:

10 x nut
10 x washer
10 x dc power supply metal jack socket

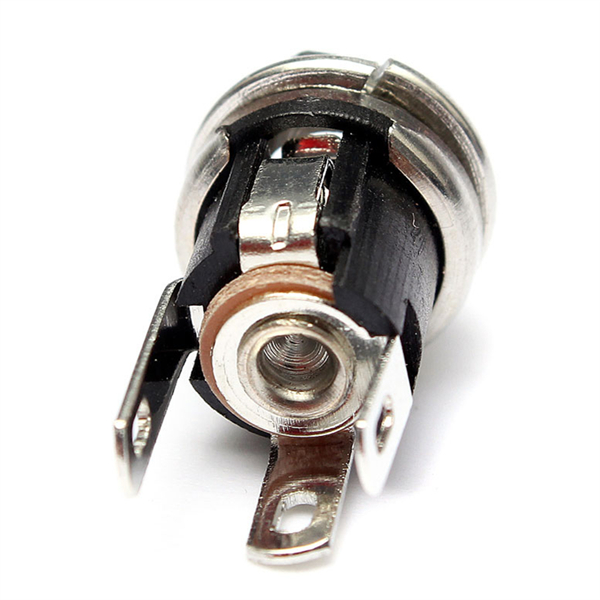

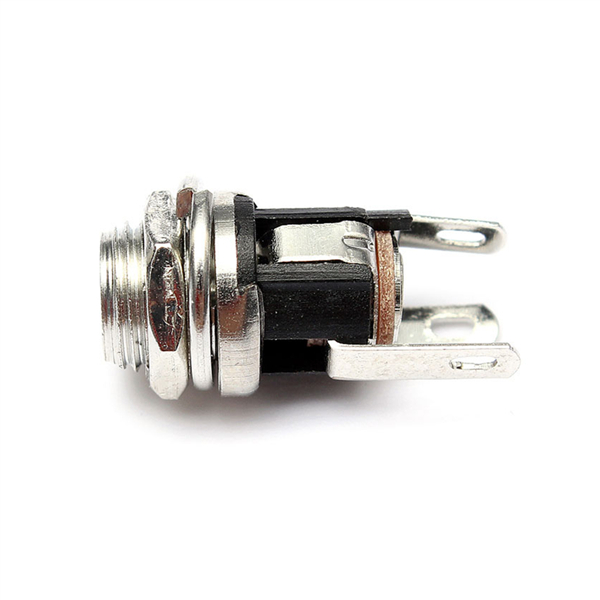

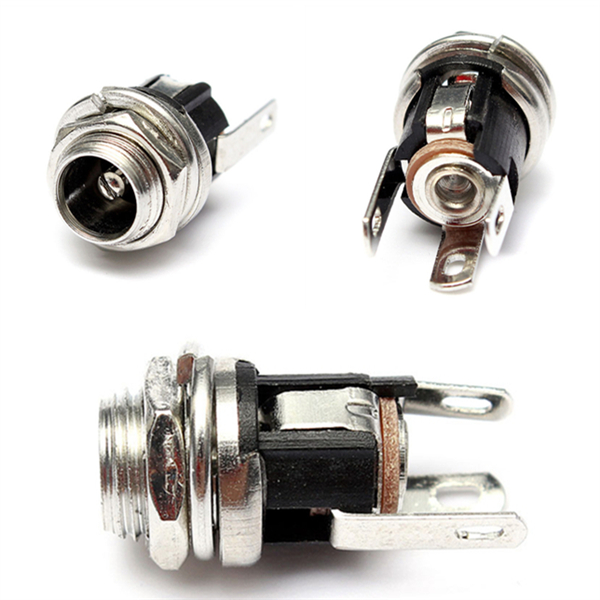

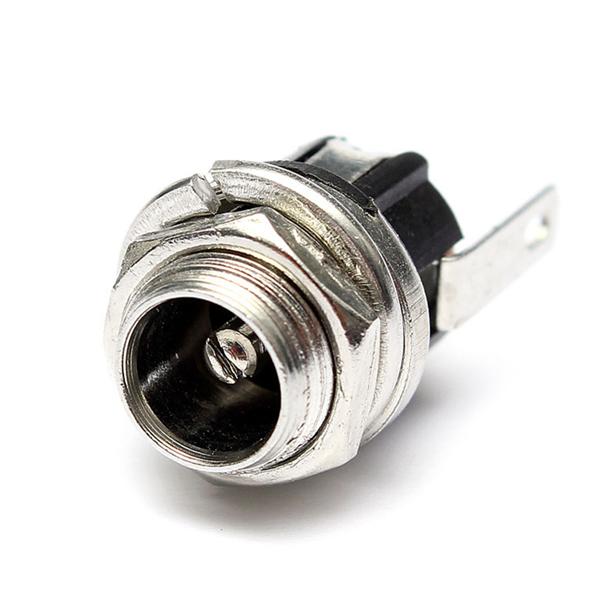

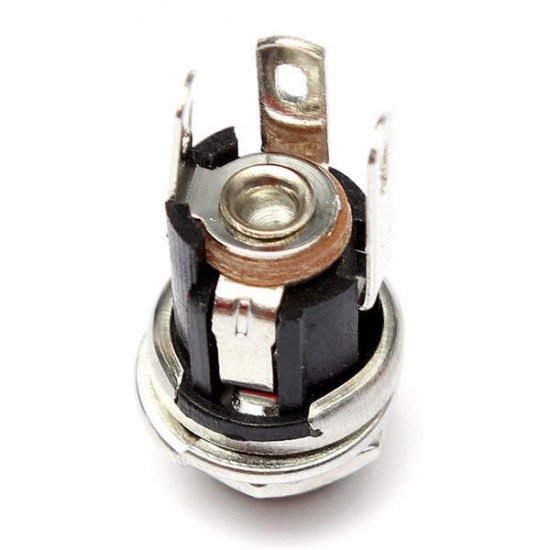

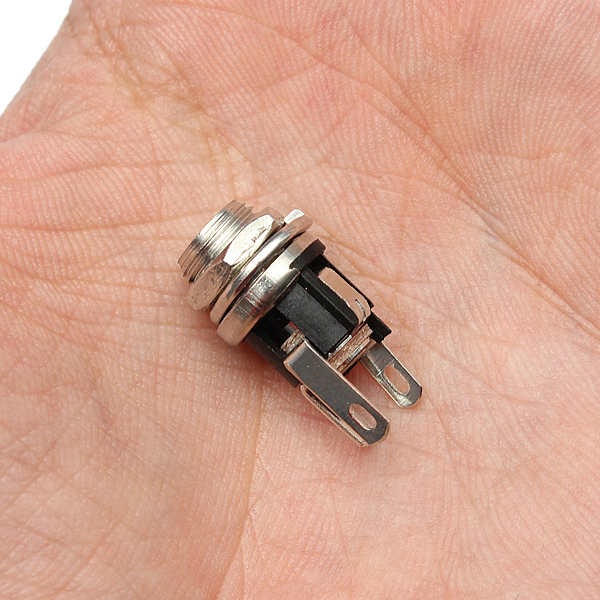

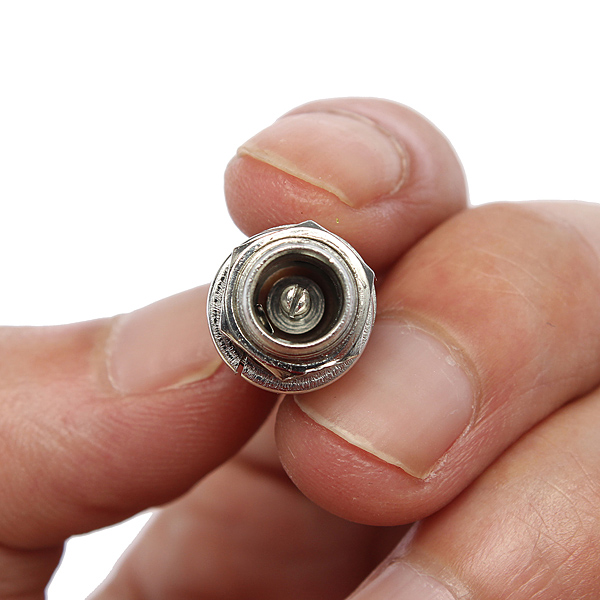

Detail Pictures:


10Pcs-55mm-x-21mm-DC-Power-Supply-Metal-Jack-Socket-With-Nut-And-Washer-1063885

10Pcs-55mm-x-21mm-DC-Power-Supply-Metal-Jack-Socket-With-Nut-And-Washer-1063885

10Pcs-55mm-x-21mm-DC-Power-Supply-Metal-Jack-Socket-With-Nut-And-Washer-1063885

10Pcs-55mm-x-21mm-DC-Power-Supply-Metal-Jack-Socket-With-Nut-And-Washer-1063885

10Pcs-55mm-x-21mm-DC-Power-Supply-Metal-Jack-Socket-With-Nut-And-Washer-1063885

10Pcs-55mm-x-21mm-DC-Power-Supply-Metal-Jack-Socket-With-Nut-And-Washer-1063885

10Pcs-55mm-x-21mm-DC-Power-Supply-Metal-Jack-Socket-With-Nut-And-Washer-1063885

10Pcs-55mm-x-21mm-DC-Power-Supply-Metal-Jack-Socket-With-Nut-And-Washer-1063885
