- Stock: In Stock
- Model: 914046
Color: Like the picture show
Quantity: 1 pc
Size: 48×29×26 mm
Display: Two color blue and red digital
Working voltage: 4-30V DC
Working current: <10mA
Measuring range: DC 0-100V 0-100A (more than 10A need shunt)
Refresh rate: about 200mS/times
Measure accuracy: 1% (± 1 digit)
Operating temperature: -10 to 65 ℃
Working pressure: 80 to 106 kPa

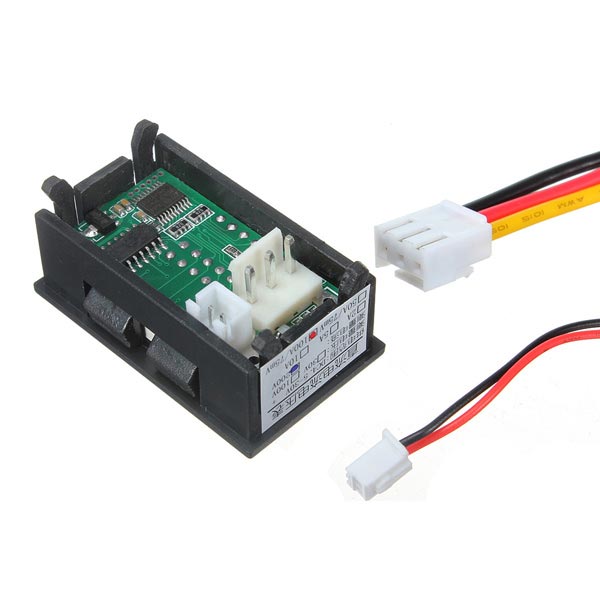

About wiring:
Red line thin: power supply+
Black line thin: power supply -
Red line (thick): PW+, measuring terminal voltage input positive
Yellow line (thick): IN+, current input
Black line thick: COM, common measuring

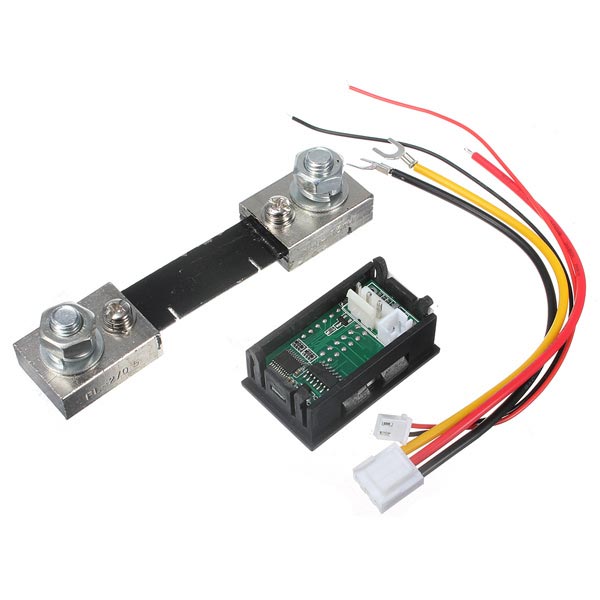

Package Included:

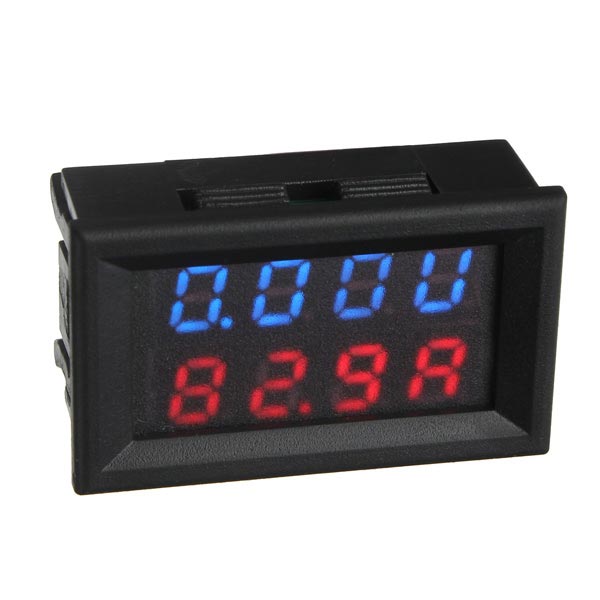

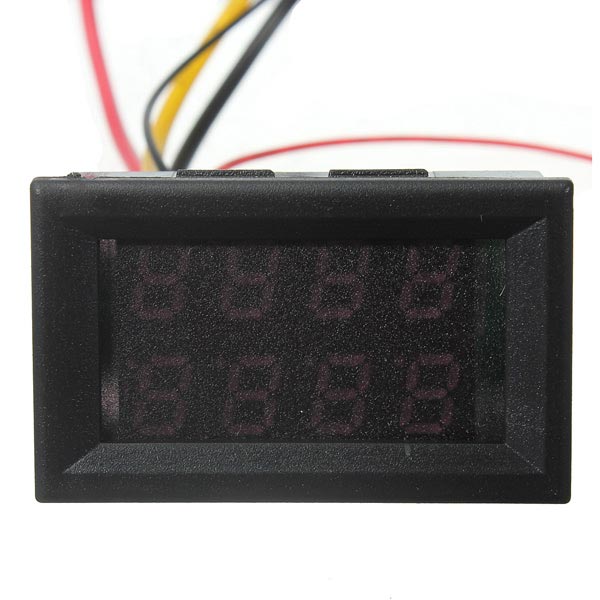

1 X Digital Voltmeter Ammeter LED Amp Volt Meter
1 X Shunt
