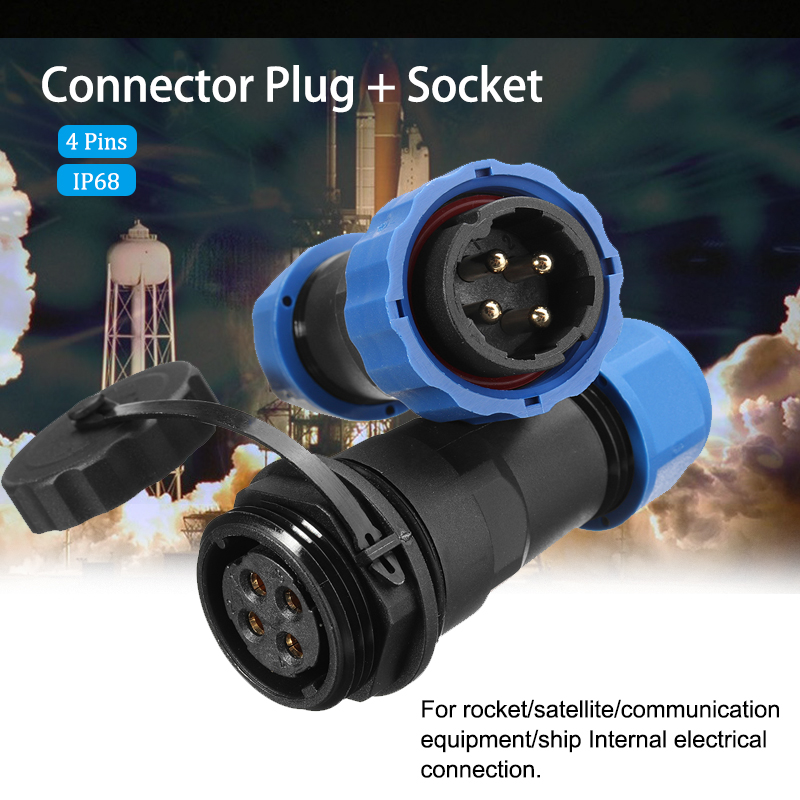

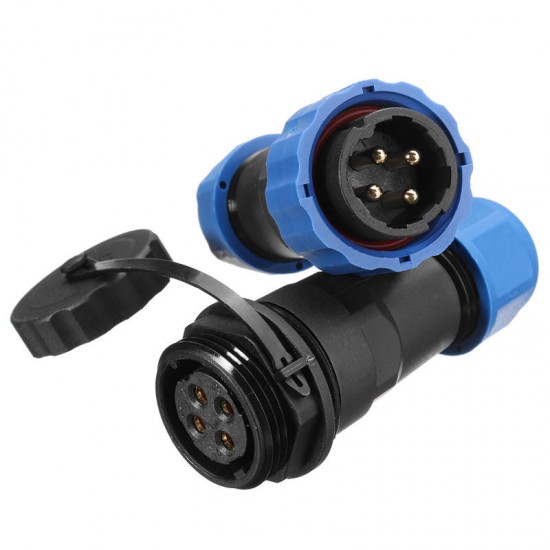

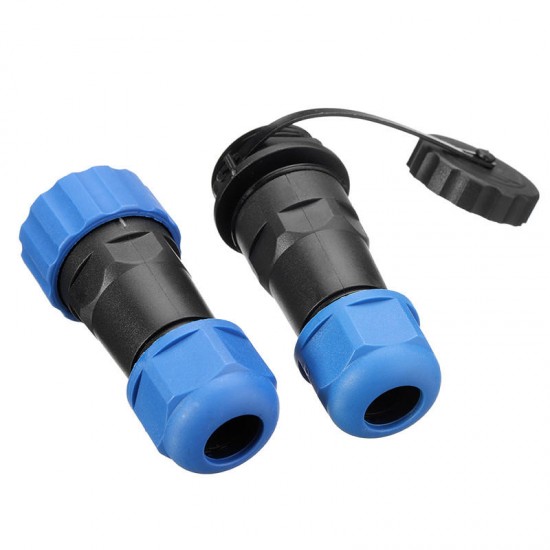

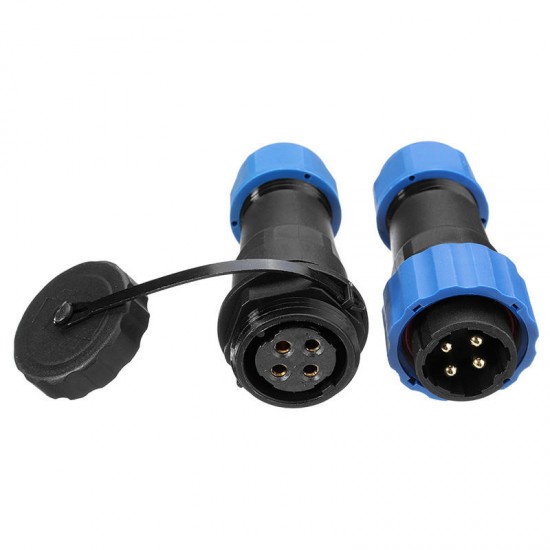

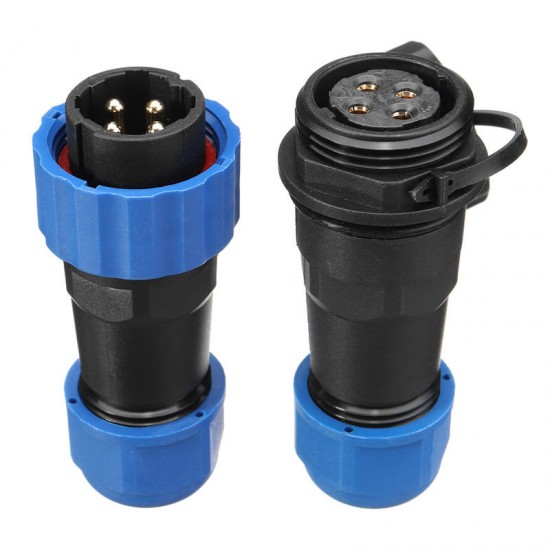

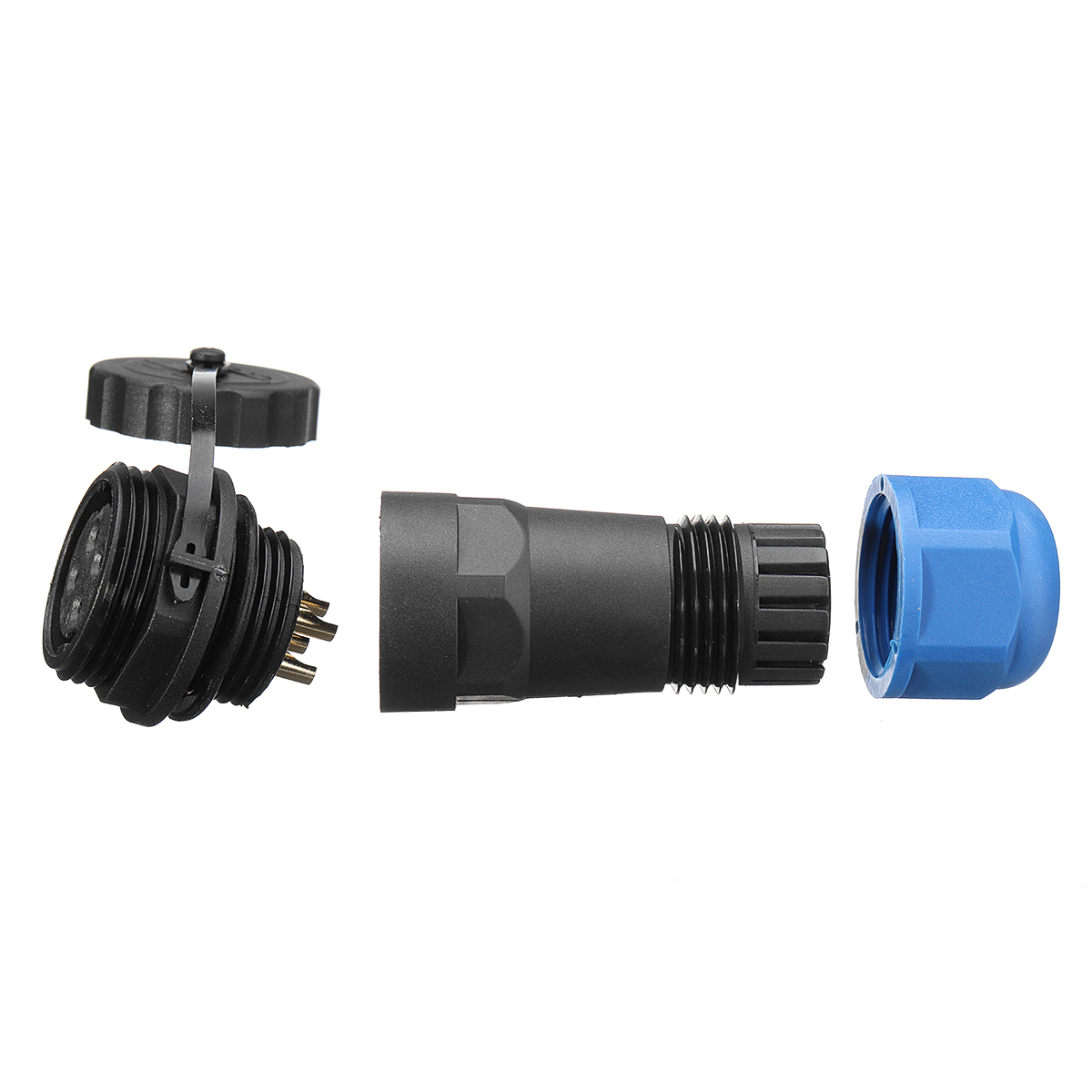

1 Pair Waterproof Aviation Connector Plug with Socket SD20-4 4 Pin IP68 F3F7 O5P3

1 Pair Waterproof Aviation Connector Plug with Socket SD20-4 4 Pin IP68 F3F7 O5P3
1 Pair Waterproof Aviation Connector Plug with Socket SD20-4 4 Pin IP68 F3F7 O5P3
1 Pair Waterproof Aviation Connector Plug with Socket SD20-4 4 Pin IP68 F3F7 O5P3
1 Pair Waterproof Aviation Connector Plug with Socket SD20-4 4 Pin IP68 F3F7 O5P3
1 Pair Waterproof Aviation Connector Plug with Socket SD20-4 4 Pin IP68 F3F7 O5P3
1 Pair Waterproof Aviation Connector Plug with Socket SD20-4 4 Pin IP68 F3F7 O5P3
1 Pair Waterproof Aviation Connector Plug with Socket SD20-4 4 Pin IP68 F3F7 O5P3
1 Pair Waterproof Aviation Connector Plug with Socket SD20-4 4 Pin IP68 F3F7 O5P3
1 Pair Waterproof Aviation Connector Plug with Socket SD20-4 4 Pin IP68 F3F7 O5P3
1 Pair Waterproof Aviation Connector Plug with Socket SD20-4 4 Pin IP68 F3F7 O5P3
1 Pair Waterproof Aviation Connector Plug with Socket SD20-4 4 Pin IP68 F3F7 O5P3
1 Pair Waterproof Aviation Connector Plug with Socket SD20-4 4 Pin IP68 F3F7 O5P3
1 Pair Waterproof Aviation Connector Plug with Socket SD20-4 4 Pin IP68 F3F7 O5P3
1 Pair Waterproof Aviation Connector Plug with Socket SD20-4 4 Pin IP68 F3F7 O5P3
1 Pair Waterproof Aviation Connector Plug with Socket SD20-4 4 Pin IP68 F3F7 O5P3
1 Pair Waterproof Aviation Connector Plug with Socket SD20-4 4 Pin IP68 F3F7 O5P3
1 Pair Waterproof Aviation Connector Plug with Socket SD20-4 4 Pin IP68 F3F7 O5P3
1 Pair Waterproof Aviation Connector Plug with Socket SD20-4 4 Pin IP68 F3F7 O5P3
1 Pair Waterproof Aviation Connector Plug with Socket SD20-4 4 Pin IP68 F3F7 O5P3
1 Pair Waterproof Aviation Connector Plug with Socket SD20-4 4 Pin IP68 F3F7 O5P3
1 Pair Waterproof Aviation Connector Plug with Socket SD20-4 4 Pin IP68 F3F7 O5P3
1 Pair Waterproof Aviation Connector Plug with Socket SD20-4 4 Pin IP68 F3F7 O5P3
1 Pair Waterproof Aviation Connector Plug with Socket SD20-4 4 Pin IP68 F3F7 O5P3
  • Stock: In Stock
  • Model: 1276784
$10.80
Ex Tax: $10.80









1-Pair-Waterproof-Aviation-Connector-Plug-with-Socket-SD20-4-4-Pin-IP68-F3F7-O5P3-1276784


1-Pair-Waterproof-Aviation-Connector-Plug-with-Socket-SD20-4-4-Pin-IP68-F3F7-O5P3-1276784


1-Pair-Waterproof-Aviation-Connector-Plug-with-Socket-SD20-4-4-Pin-IP68-F3F7-O5P3-1276784


1-Pair-Waterproof-Aviation-Connector-Plug-with-Socket-SD20-4-4-Pin-IP68-F3F7-O5P3-1276784


1-Pair-Waterproof-Aviation-Connector-Plug-with-Socket-SD20-4-4-Pin-IP68-F3F7-O5P3-1276784


1-Pair-Waterproof-Aviation-Connector-Plug-with-Socket-SD20-4-4-Pin-IP68-F3F7-O5P3-1276784




1-Pair-Waterproof-Aviation-Connector-Plug-with-Socket-SD20-4-4-Pin-IP68-F3F7-O5P3-1276784

1-Pair-Waterproof-Aviation-Connector-Plug-with-Socket-SD20-4-4-Pin-IP68-F3F7-O5P3-1276784

1-Pair-Waterproof-Aviation-Connector-Plug-with-Socket-SD20-4-4-Pin-IP68-F3F7-O5P3-1276784


1-Pair-Waterproof-Aviation-Connector-Plug-with-Socket-SD20-4-4-Pin-IP68-F3F7-O5P3-1276784


Specifications:
Model:SD20
Power:250W
Voltage:250V
Rated current:25A
electric conductor’s material:copper
Connect way:screw connect
Wire connecting:soldering
Soldering way:Rosin soldering
Cover material:thermoplastic,PA66, PA6
Insulator:thermoplastical PPS
Working temperature:-25℃~85℃
High pressure resistance:≥1000V, 1minute (2.5KV in normal condition, 1.0KV in showering)
Connection number:≥500 times
Max connection number:≥3000 times
Relative humidity:90%~95%(40±2℃)
Salt fog:48 H in 5%NAC1 salt fog
Leakproofness:IP68
Leakage protection:2 weeks under -10M water
Sealing:silica gel
Insulation resistance:500MΩin normal condition
Contact resistance:1MΩ
Working current:φ2.8 contact 25A, φ1 contact 5A
Working resistance:φ2 contact 2MΩ, φ1 contact 5MΩ
Working voltage:250V(AC), Max voltage 2500V(AC)

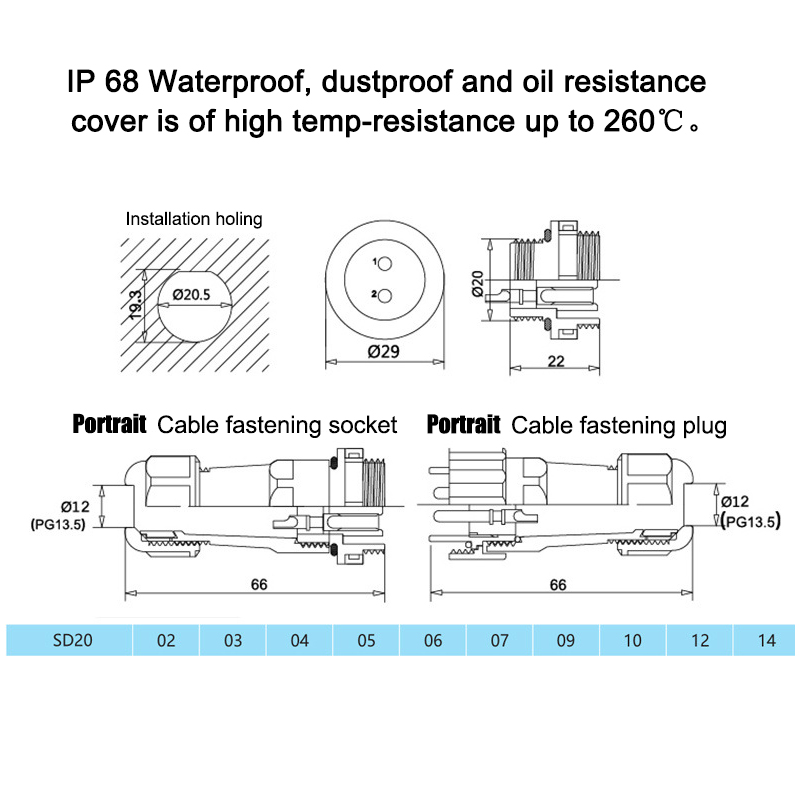

Contact diameter:φ2.8x4

Package Included:
1x plug
1x socket
