0-5mH2O 6m Cable Submersible Level Transmitter Level Transducer Level Sensor

Description:


0-5mH2O 6m Cable Submersible Level Transmitter Level Transducer Level Sensor



Features:



1. Prevent from the surge voltage, over-voltage, over-current and the protection of reversed polarity;
2. Do the test to make sure the ability of overload resistance and shock resistance,precisely ensure the overload capacity;

3. Implement the electromagnetic interference resistance to avoid the problem taken place under the condition of complicated electromagnetism environment;
4. All sensitive chips are from the imported OEM parts, in order to keep the long-term stability.



Specification:



Measurement Range: 0-5mH2O/50kPa;
Cable Length: 6 meters
Measurement Medium: Water;
Power Supply: 24V DC;
Output Signal: 4-20mA;
Accuracy: ±0.5%FS;
Overload Capacity: Two times full-scale pressure;

Using Temperature: -20℃—120℃;
Compensation Temperature Range: -10℃—80℃;
ZTC: (typical): ±0.02%FS/℃;
STC: (typical): ±0.02%FS/℃;
Long-term Stability: (typical):±0.1%FS/year;
Waterproof Class: IP68;
Load Resistance: ≦(U-10)/0.02Ω;
Shell Material: 316L stainless steel;
Explosion-proof Type: Exia II CT6

Caution:

1. The measurement medium should be compatible with stainless steel;
2. Don't connect the wires when the power is on,connect the power after checking the connection wires;
3. Shell and power should be connected with earth;don't change the welded parts and connected wires of the outgoing products when customer use it;

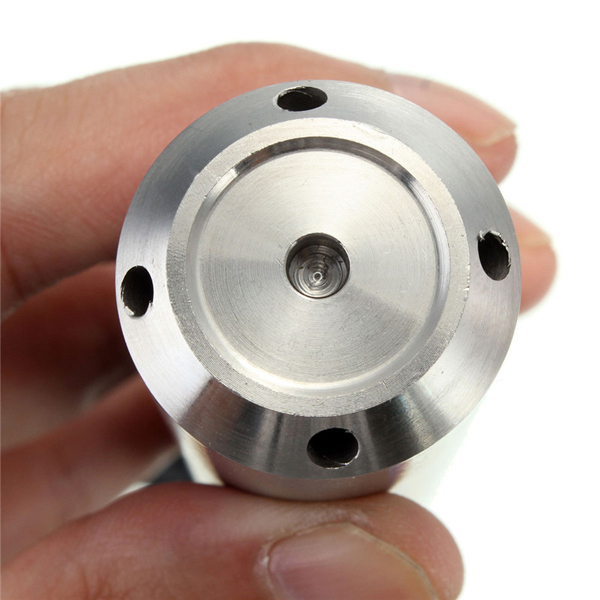

4. Sensor is related to the precision device,don't disassemble,and what's more,don't touch the diaphragm,in case of break.

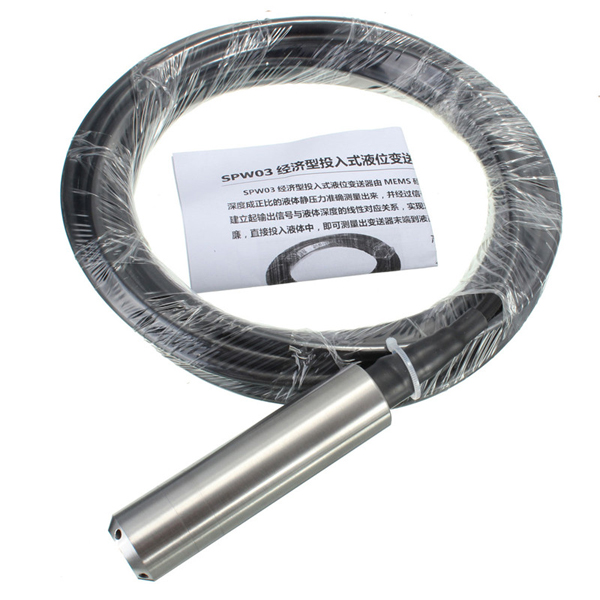

Package includes:



1 x 6m Cable Transducer Level Sensor

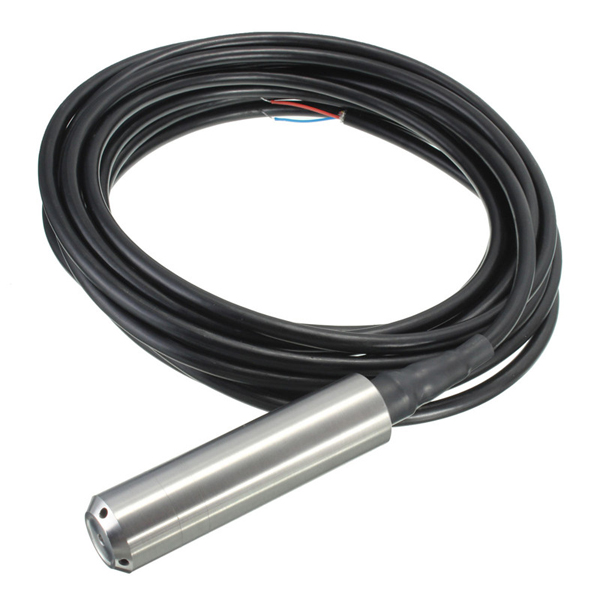

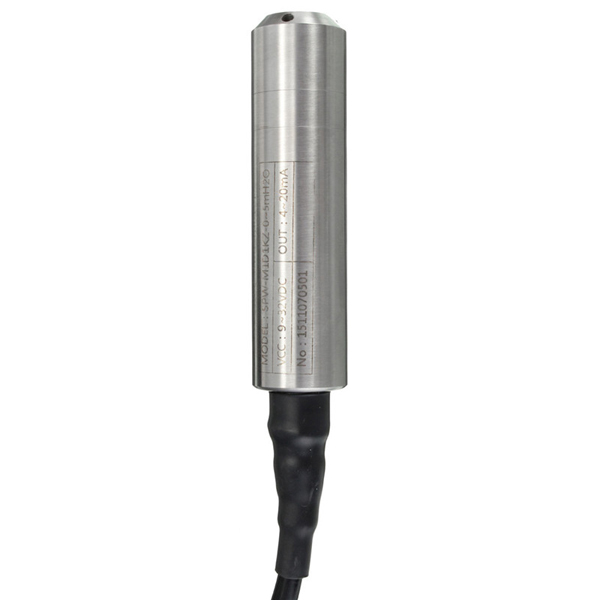

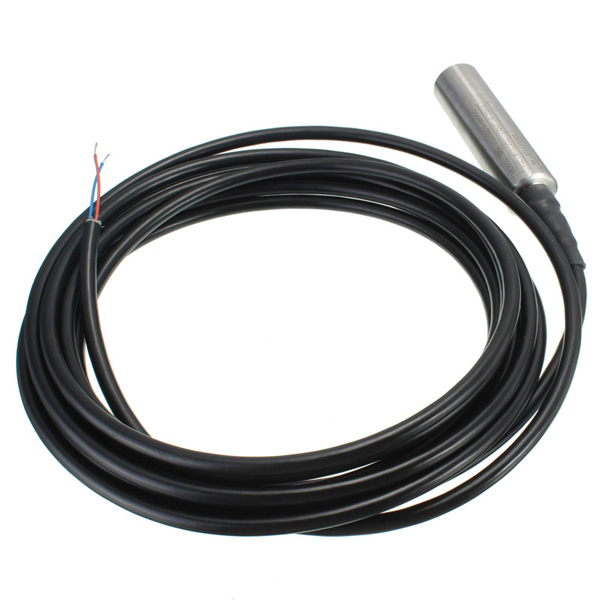

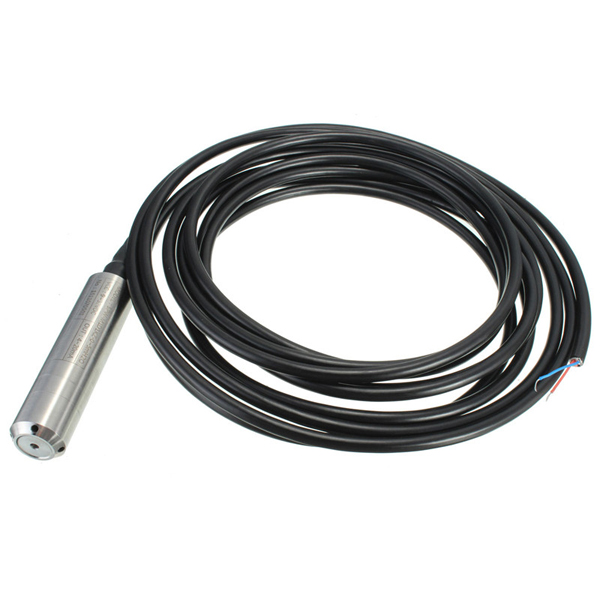

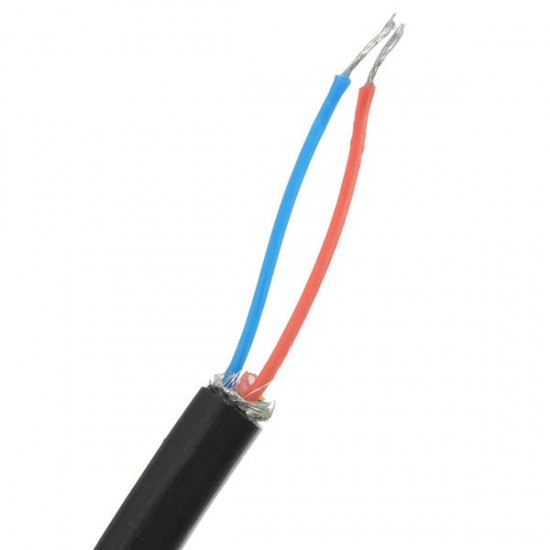

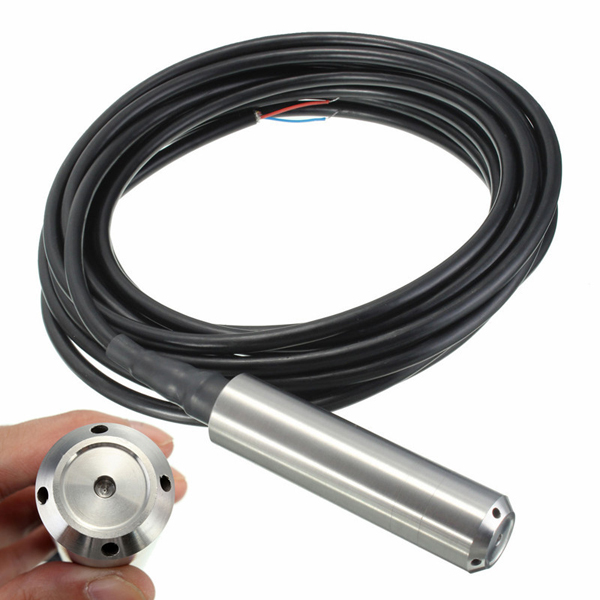

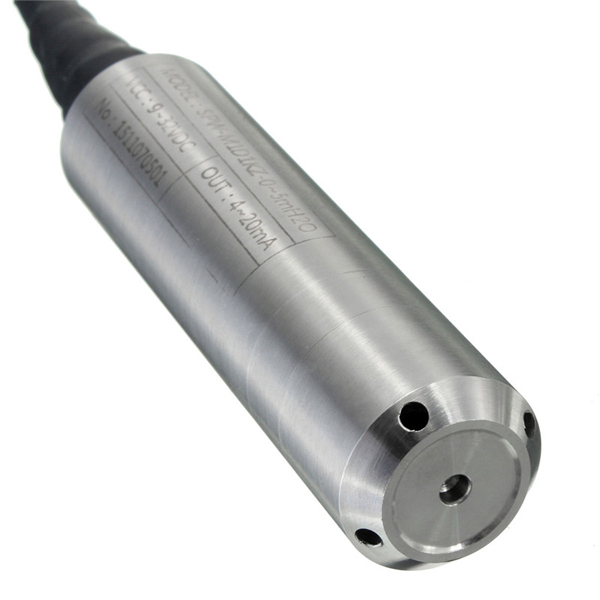

Details pictures:
